Rittal
Cable connection terminals SV

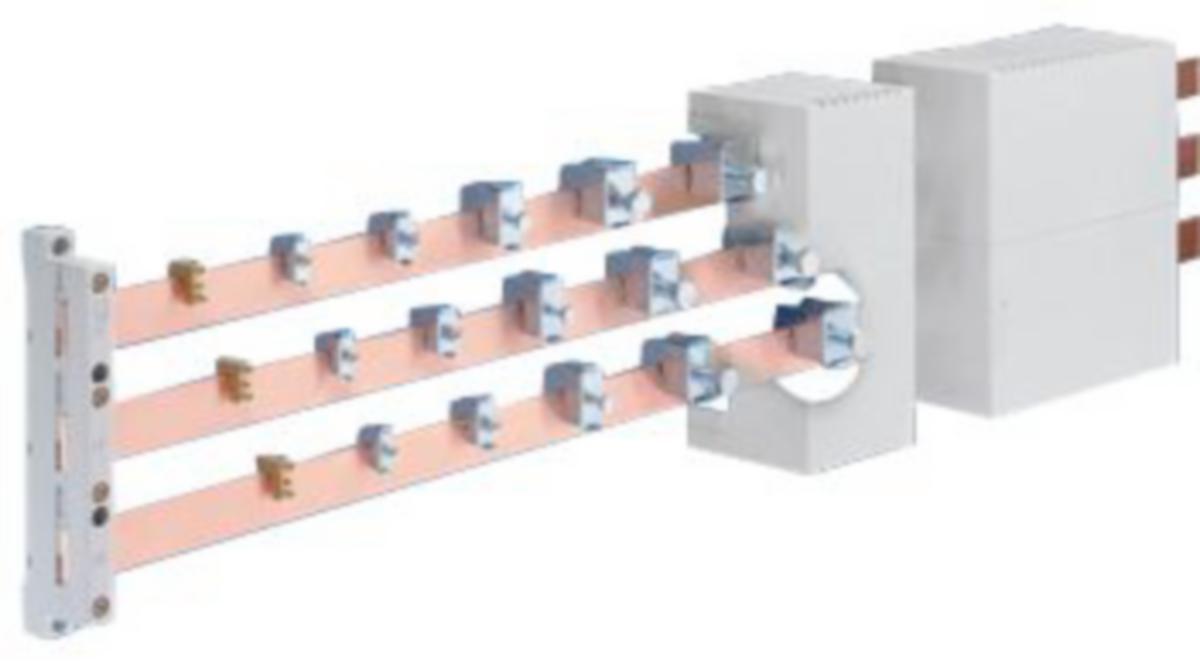

CONNECTION CLAMPS 16MM2/8X8 3451500
Article number: Suppl. article no:
2272093
3451500
to see price and stock
Material:Sheet steel, chromed *Brass
Conductor connection clamps enable a drilling free and contact proof connection of round conductors up to 185mm² and laminated slat copper rails on assembly system. Universally usable on flat rails with all rail widths and up to a thickness of 10mm for both Rittal RiLine60 PLS 800A and 1600A. Push on mounting and therefore self locking of assembly rails without using connection clamp screws.
Conductor connection clamps enable a drilling free and contact proof connection of round conductors up to 185mm² and laminated slat copper rails on assembly system. Universally usable on flat rails with all rail widths and up to a thickness of 10mm for both Rittal RiLine60 PLS 800A and 1600A. Push on mounting and therefore self locking of assembly rails without using connection clamp screws.
- Article number: 2272093
- Suppl. article no: 3451500
- Ean no: 4028177042681
- Material class QM210B
Technical data
- Busbar thickness: 2.5-16 mm
- Busbar width: 5 mm
- Suitable for: Other
- Max. conductor cross section: 16 mm²
- Max. rated operation current Ie: 16 A
- Suitable for round conductor connection: No
- Suitable for sector conductor connection: No
- Suitable for strip conductor connection: No
- Clamp space for laminated copper rails: 8x8
- Tightening torque: 3 Nm
- REACH Date: 2023-03-20
- Connection round wire: 2,5-16
- Type SV: 3451500
- REACH Information obligation: No
