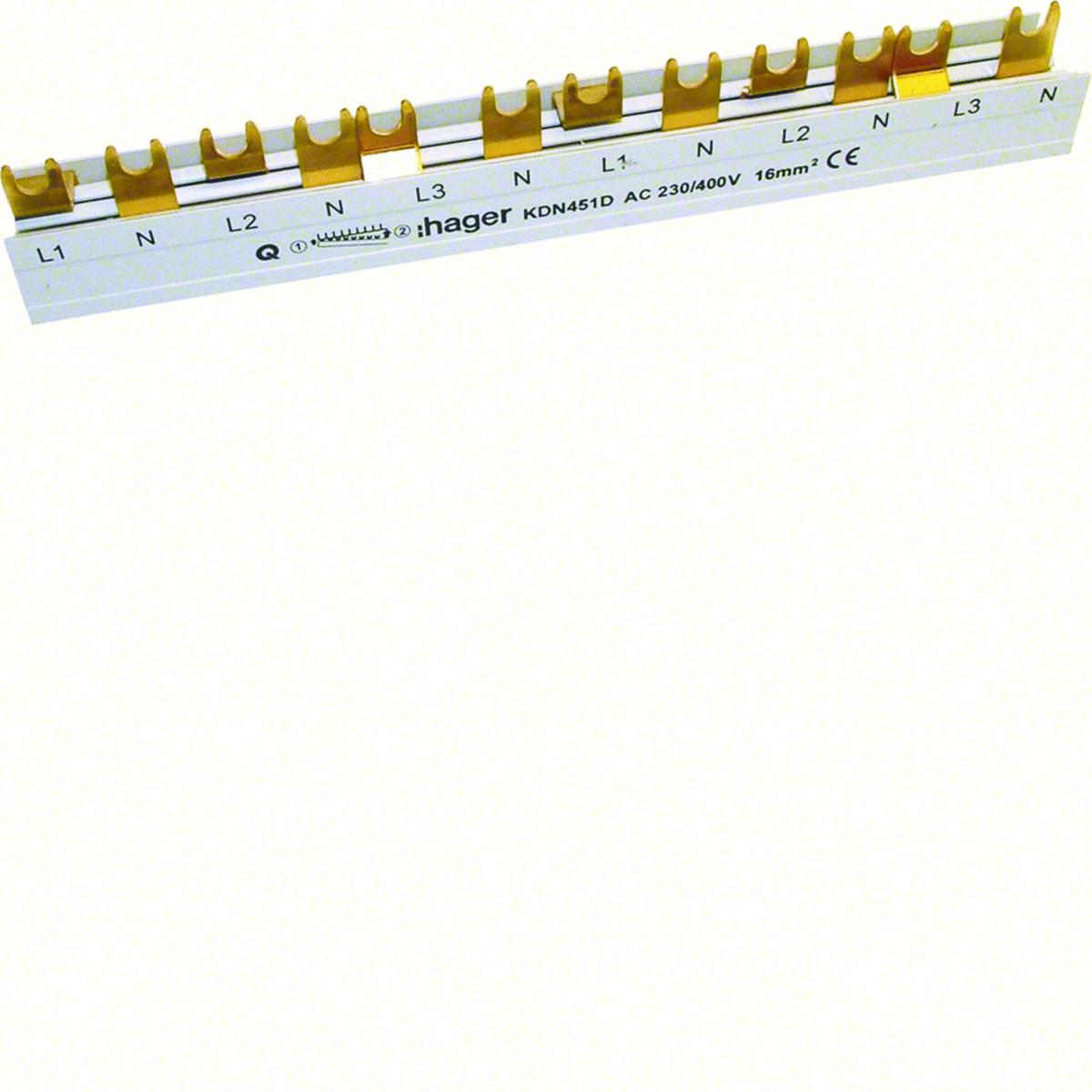

Phase rail 3+N-pole, KDN - INSULATED BUSBAR 3X(P+N) FORK KDN451D
Hager

Phase rail 3+N-pole, KDN

INSULATED BUSBAR 3X(P+N) FORK KDN451D
Article number:
2108595
Suppl. article no:
KDN451D
‌
‌
‌
‌
‌
 to see price and stock
Environmental product declarationByggvarubedomning: AccepterasREACH Information obligation
Suitable for both the Quick Connect automatic systems and those with screw connectors. Suitable for circuit breakers, residual current devices and surge protectors. For 6 person protection systems, 4-pole, L1+N, L2+N, L3+N, 12 modules long, The phase rail is cut, not sawn, and is fitted with an end piece.
  • Article number:
    2108595
  • Suppl. article no:
    KDN451D
  • Ean no:
    3250613741082
  • Material class
    QL240A
Technical data
  • Packagin Size: 1 ST/25 ST
  • Type: KDN451D
  • Number of phases: 3
  • Number of poles: 4
  • Width in number of modular spacings: 12
  • Cross section: 16 mm²
  • Rated permanent current Iu: 80 A
  • Max. rated operation voltage Ue: 400 V
  • Type of electric connection: Fork
  • Length: 215 mm
  • Suitable for number of devices: 3
  • Suitable for devices with N-conductor: Yes
  • Suitable for devices with auxiliary switch: No
  • Rated surge voltage: 4 kV
  • Module width: 17.8 mm
  • Insulated: Yes
  • Colour: Grey
  • Can be cut to size: Yes
  • REACH Date: 2022-11-23
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
