Hager

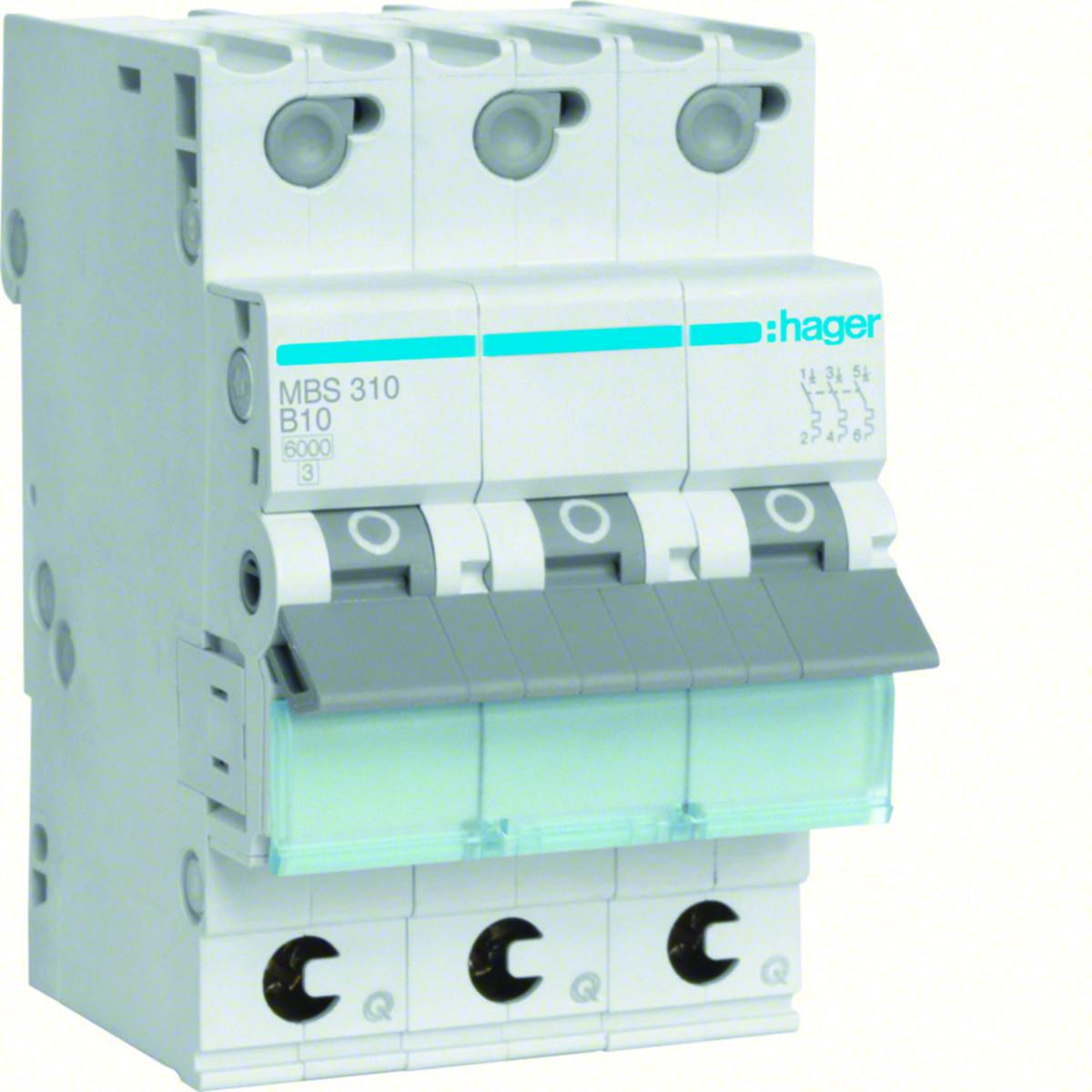

Miniature circuit breaker 3-pole type B, 6kA, MBS3, Quick Connect
MCB 3P 6KA B-10A QUICK CONNECT MBS310
Article number: Suppl. article no:
2106442
MBS310
to see price and stock
For reliable protection of cables and conductors against overload and short circuit. Miniature circuit breakers are available with B and C characteristics. The quick connection technology saves a lot of installation time. With "QuickConnect" it is possible to push the conductor (EK/FK) directly into the connection. During installation of multi-stranded conductors (MC) and disassembly, press the button to open the connection, whereupon the conductor is simply pushed in/pulled out. When a DIN rail component needs to be replaced, this can be done without affecting any other products but the current one.
- Article number: 2106442
- Suppl. article no: MBS310
- Ean no: 3250614314865
- Material class QL2600
Technical data
- Packagin Size: 1 ST/4 ST/48 ST/1152 ST
- Type: MBS310
- Rated current: 10 A
- Number of poles (total): 3
- Width in number of modular spacings: 3
- Release characteristic: B
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 6 kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
- Rated voltage: 400 V
- Voltage type: AC
- Number of protected poles: 3
- Degree of protection (IP): IP20
- Frequency: 50-60 Hz
- Concurrently switching neutral conductor: No
- Current limiting class: 3
- Additional equipment possible: Yes
- Overvoltage category: 3
- Pollution degree: 2
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -25-70 °C
- Built-in depth: 70 mm
- REACH Date: 2024-11-24
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
- Connection type: Push-in clamp
