Ifö Electric
Ifö Hicap, ECO, gG, size 000, 500V
HICAP ECO GG 000 16A 690V 1690V C0090V C0090V C00 K
Article number: Suppl. article no:
2044155
201016
to see price and stock

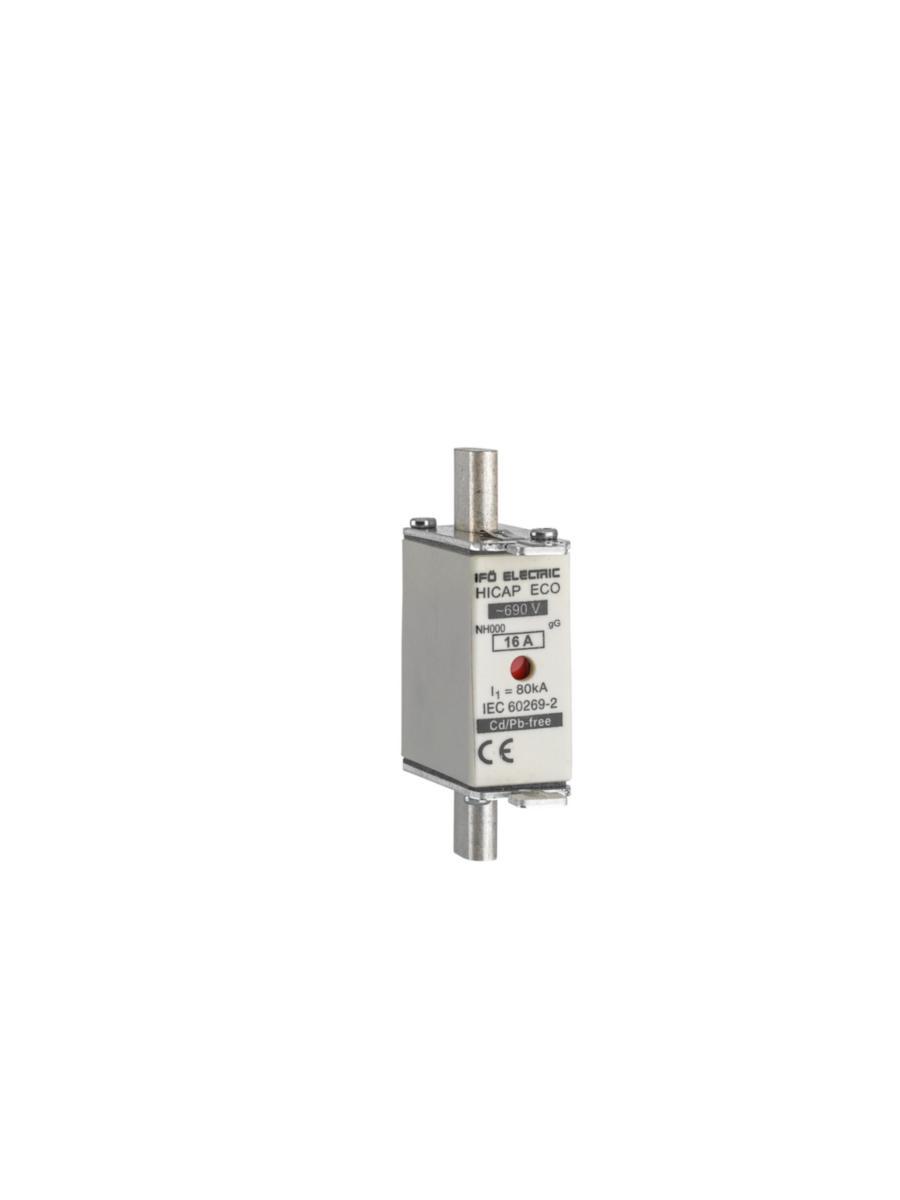

Hicap Eco gG 500 V is an environmentally-friendly, lead and cadmium-free blade fuse for protecting cables.
The fuse meets IEC 60269 and has high breaking ability, excellent selectivity, an optimized melting characteristics. Combination indication provides 100% indication in all types of installations.
The fuse meets IEC 60269 and has high breaking ability, excellent selectivity, an optimized melting characteristics. Combination indication provides 100% indication in all types of installations.
- Article number: 2044155
- Suppl. article no: 201016
- Ean no: 7312902010166
- Material class QL070B
Technical data
- Packagin Size: 3 ST
- Type: C00 - 000
- Fuse construction type according to IEC 60269: NH000
- Rated current: 16 A
- Rated voltage AC: 690 V
- Rated voltage DC: 250 V
- Rated voltage: 690 V
- Voltage type: AC/DC
- Rated switching capacity AC: 80 kA
- Rated switching capacity DC: 80 kA
- Utilization category according to IEC 60269: gG
- Type of fuse status indicator: Combination fuse status indicator
- Insulated metal gripping lugs (IMGL): No
- Power loss at rated current: 1.8 W
- REACH Date: 2024-12-18
- REACH Information obligation: No
