TE Connectivity/Raychem

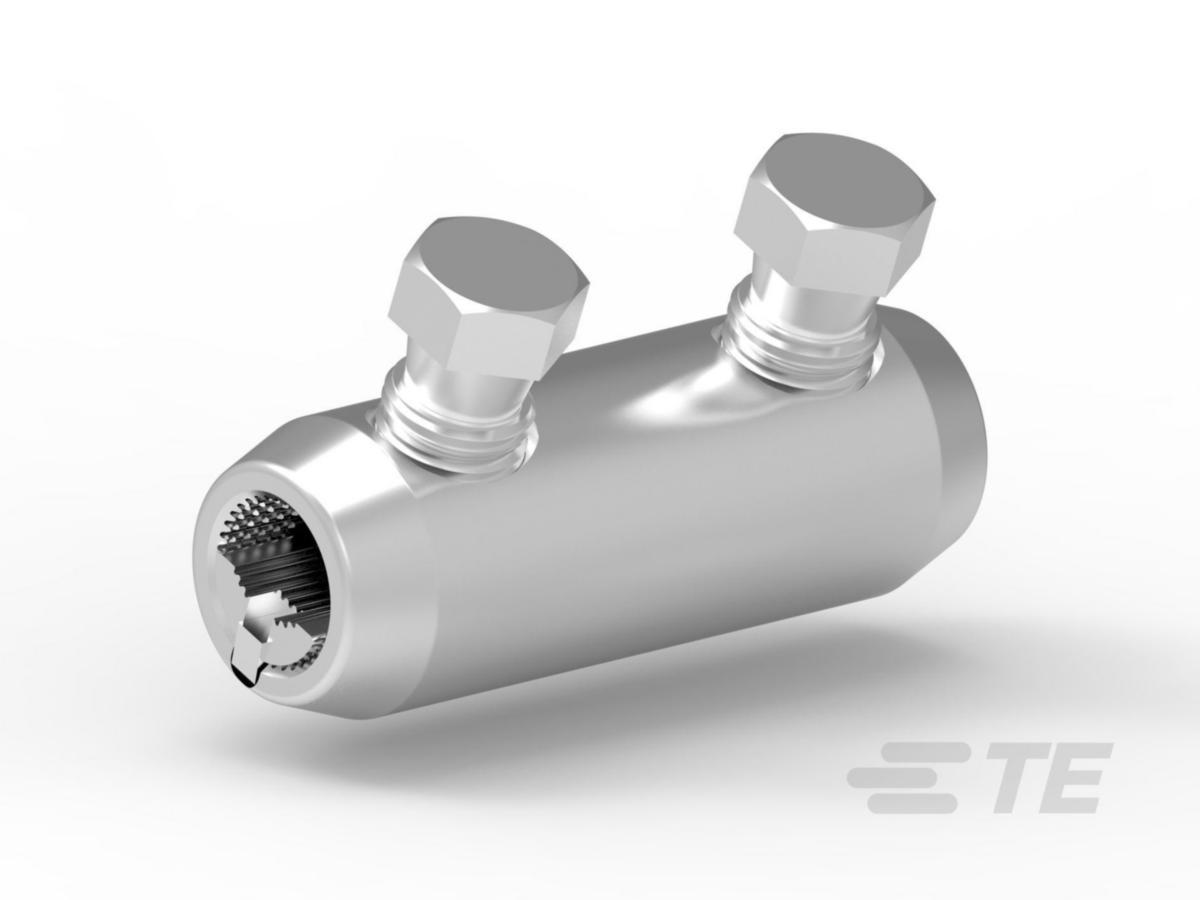

Connectors with shear head bolts BSM/BSMB Raychem 12-36kV
LAMP HOUSE LONDON BLACK 4012B
Article number: Suppl. article no:
0836916
C85068N001
to see price and stock
These screw extension sleeves are included in Raychem’s standard splices for medium tension, 12-36kV.
All sleeves have middle walls and are tinned for use on both copper and aluminium leads.
The screw extension sleeves are generally somewhat coarser than the corresponding pressure sleeves. Therefore, it is important to ensure that the shrink tubing and the screw extension sleeve fit together.
All sleeves have middle walls and are tinned for use on both copper and aluminium leads.
The screw extension sleeves are generally somewhat coarser than the corresponding pressure sleeves. Therefore, it is important to ensure that the shrink tubing and the screw extension sleeve fit together.
- Article number: 0836916
- Suppl. article no: C85068N001
- Ean no: 4042368859117
- Material class QB841B
Technical data
- Packagin Size: 1 ST/18 ST
- Type: BSM-25/95
- Area: 25-95 mm²
- L2: 30 mm
- d1: 24 mm
- d2: 12.8 mm
- AF: 13 mm
- Length: 65 mm
- Nominal cross section copper, SM: 25-95 mm²
- Number of mounting screws: 2
- REACH Date: 2023-01-17
- Nominal cross section aluminium, SM: 25-95 mm²
- Number of screws: 2
- Nominal cross section aluminium, RE: 25-95 mm²
- Nominal cross section aluminium, RM: 25-95 mm²
- Nominal cross section copper, RE: 10-50 mm²
- Nominal cross section copper, RM: 16-95 mm²
- Degree of protection (IP): IP00
- Surface protection: Tinned
- REACH Information obligation: No
- With insulation: No
- Oil stop/centre bar: Yes
- Voltage level: Up to 30 kV
- Conductor material: Aluminium/copper
- With soldering hole: No
