Melbye

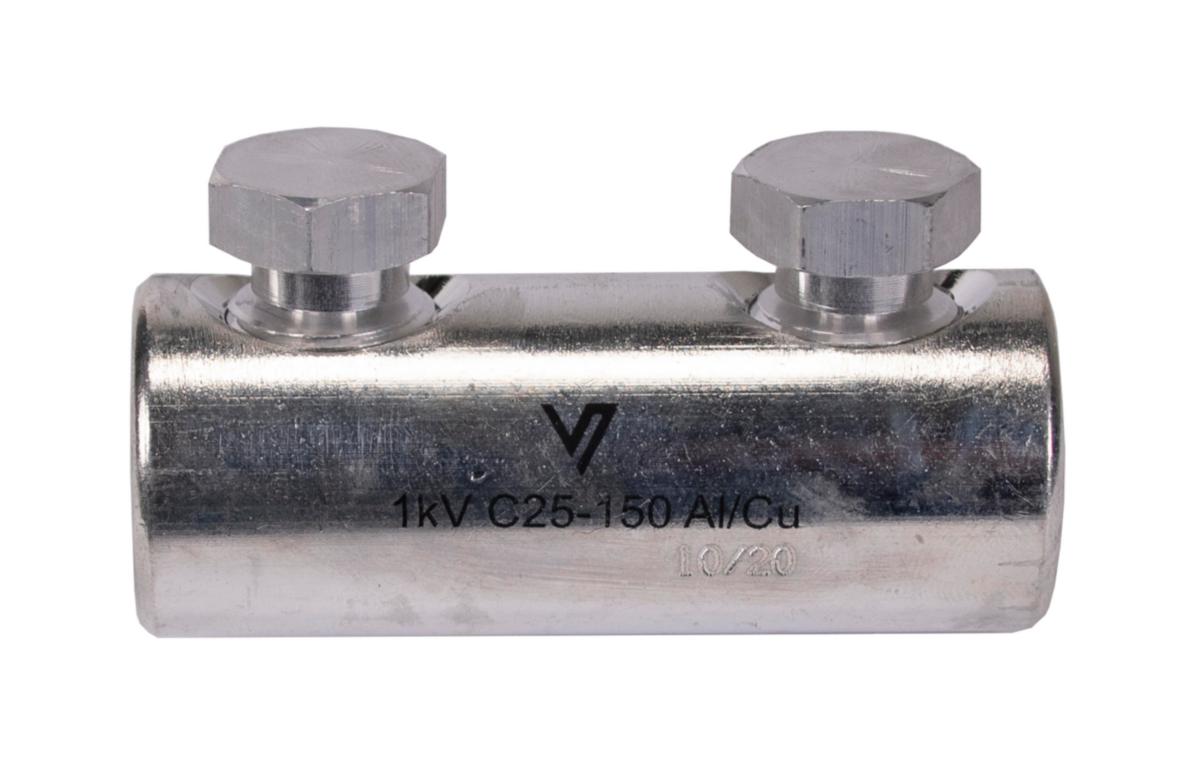

Screw joint sleeve 1kV
Mech. Connector 25-150mm²
Article number: Suppl. article no:
0812491
0812491
to see price and stock
The mechanical screw cable lug is made of tinned aluminum, and has torque-controlled bolts that ensure the correct torque every time it is installed. All bolts are hexagonal bolts. The screw cable lug is made with transverse grooves on the inside for the best tensile strength of the conductor. When the sleeve is tinned, it can be used for both aluminum and copper. Melbye's mechanical screw cable lug for 1kV is tested for class 5, multi-wire copper conductor. All products are tested according to IEC-61238-1, 2018 class A.
- Article number: 0812491
- Suppl. article no: 0812491
- Ean no: 7332811344787
- Material class QB846B
Technical data
- Packagin Size: 1 PCS/30 PCS/120 PCS/2880 PCS
- Nominal cross section aluminium, RE: 25-150 mm²
- Nominal cross section aluminium, RM: 25-150 mm²
- Nominal cross section aluminium, SE: 35-150 mm²
- Nominal cross section aluminium, SM: 35-150 mm²
- Nominal cross section copper, RE: 25-150 mm²
- Nominal cross section copper, RM: 25-150 mm²
- Nominal cross section copper, SM: 35-150 mm²
- Voltage level: Other
- Material conductor: Aluminium/copper
- Number of screws: 2
- Surface protection: Tinned
- With insulation: No
- With soldering hole: No
- Degree of protection (IP): IP00
- Oil stop/centre bar: Yes
- REACH Date: 2023-03-15
- GWP-tot (A1-A3): 0,0148 kgCO2e/ST
- REACH Information obligation: No
