Elpress
Screw cable lugs, SL

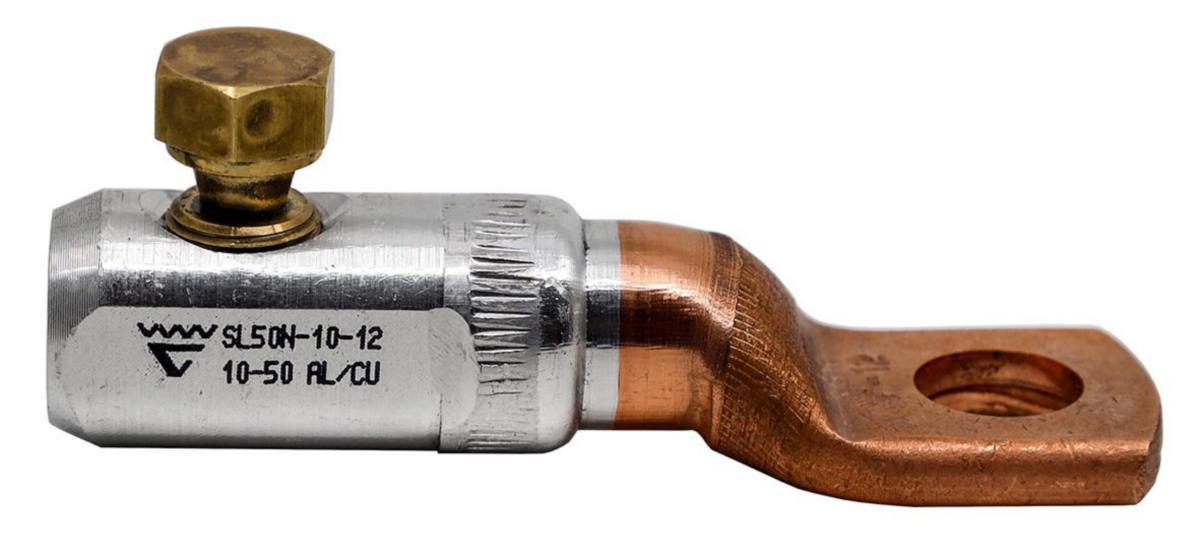

SCREW CABLE LUGS SL50N-10-12
Article number: Suppl. article no:
0812544
7334-017400
to see price and stock
Screw cable lug, Al and Cu at 1 and at 2 cable.
• material in the screws: brass for lowest friction
• outdated breaker screws for easy handling
• voltage range 1 kV
• meets the requirements of IEC standard 61238-1: 2003
• the cable lugs are of the bimetal type for best function
• fits both M10 and M12, reduction plate and flat plate are included when ordering.
• material in the screws: brass for lowest friction
• outdated breaker screws for easy handling
• voltage range 1 kV
• meets the requirements of IEC standard 61238-1: 2003
• the cable lugs are of the bimetal type for best function
• fits both M10 and M12, reduction plate and flat plate are included when ordering.
- Article number: 0812544
- Suppl. article no: 7334-017400
- Ean no: 7393487087200
- Material class QB8430
Technical data
- Bolt dimension (metric): 12
- Nominal cross section copper, RE: 10-50 mm²
- Nominal cross section copper, RM: 10-50 mm²
- Nominal cross section copper, SM: 10-50 mm²
- Nominal cross section aluminium, RE: 10-50 mm²
- Nominal cross section aluminium, RM: 10-50 mm²
- Nominal cross section aluminium, SE: 10-50 mm²
- Nominal cross section aluminium, SM: 10-50 mm²
- Min. AWG-size: 8
- Max. AWG-size: 0
- Material conductor: Aluminium/copper
- Surface protection: Bare
- With shear-off head: Yes
- REACH Date: 2024-01-23
- REACH Information obligation: No
