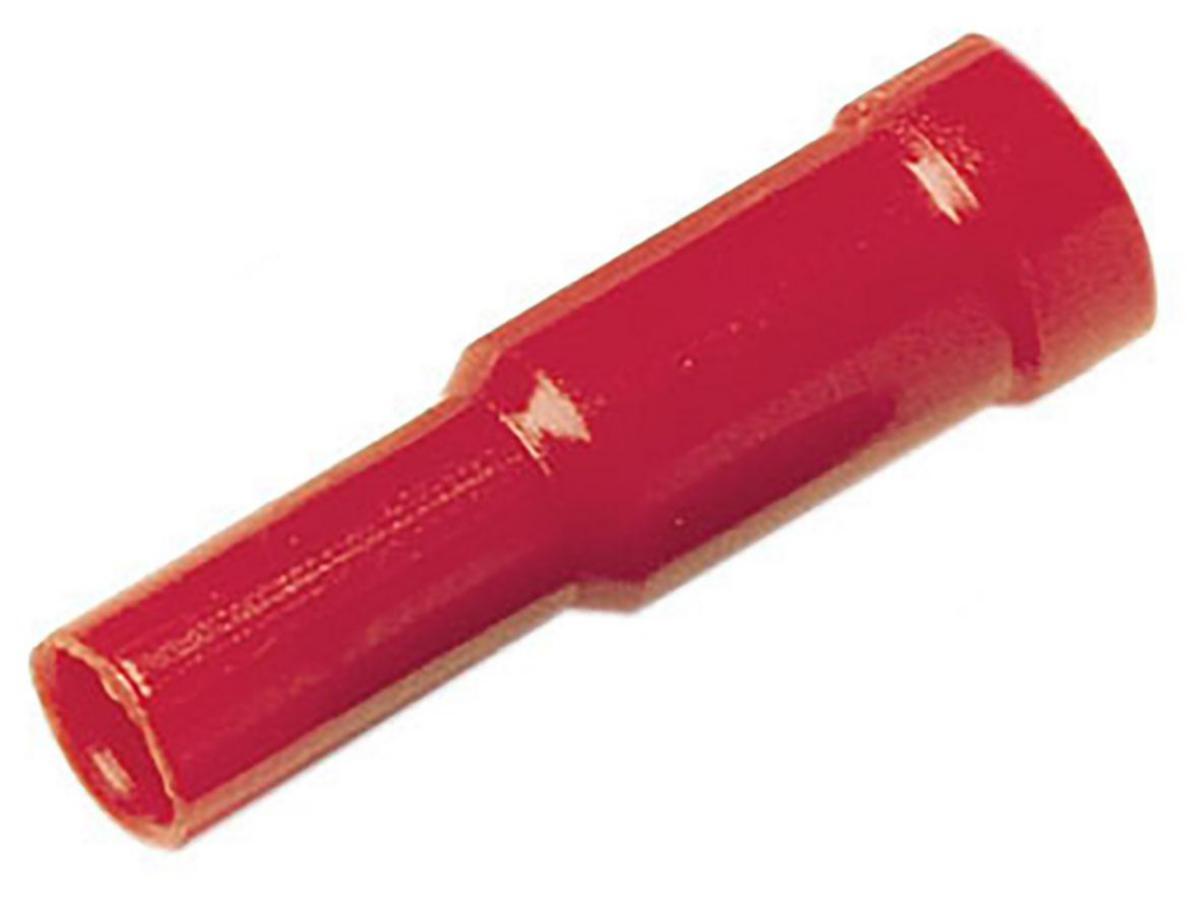

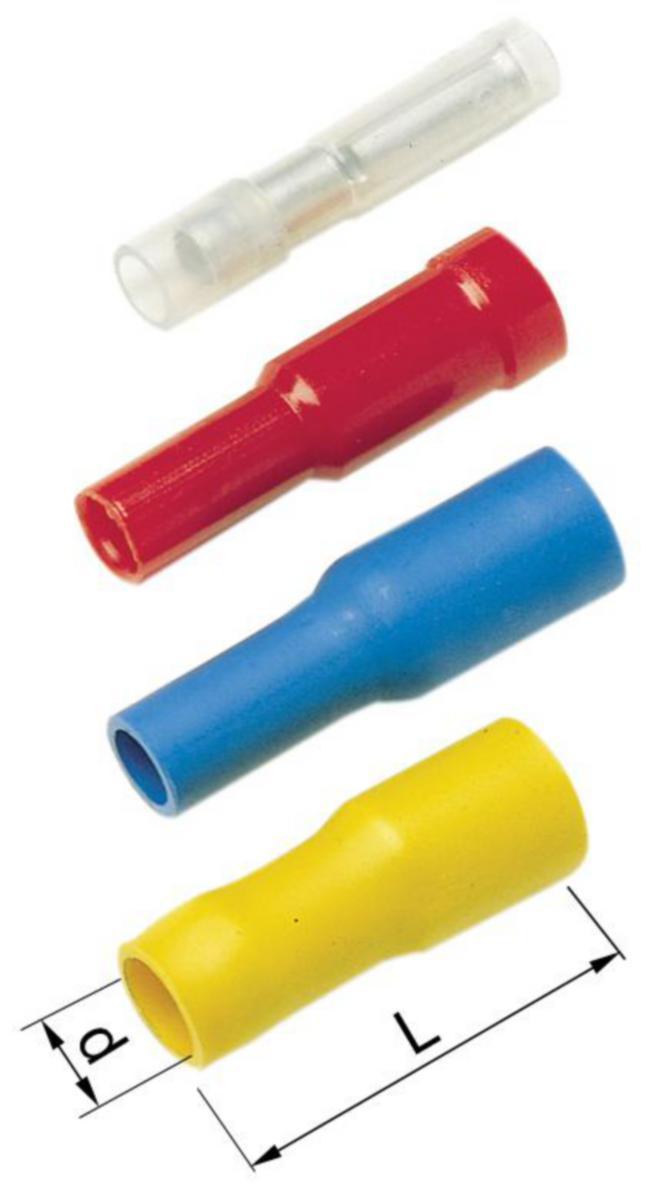

Round pin sleeve, fully insulated
SOCKET A1504HO
Article number: Suppl. article no:
0822420
7496-256300
to see price and stock
Brass round pin sleeves. PC insulators feature an easy-entry design; PC and PA are halogen-free.
- Article number: 0822420
- Suppl. article no: 7496-256300
- Ean no: 7393487005228
- Material class QB780B
- This is an alternative to item 0813359
Technical data
- Packagin Size: 100 PCS/500 PCS
- Type: A1504HO
- Model: Bushing
- Nominal cross section: 0.5-1.5 mm²
- Colour insulation: Red
- Insulation: Fully insulated
- Material: Brass
- Material insulation: Polycarbonate (PC)
- Surface protection: Tinned
- Halogen free: Yes
- For tool: GSA0760
- REACH Date: 2024-01-23
- REACH Information obligation: No
