Elpress
Splice sleeves SK

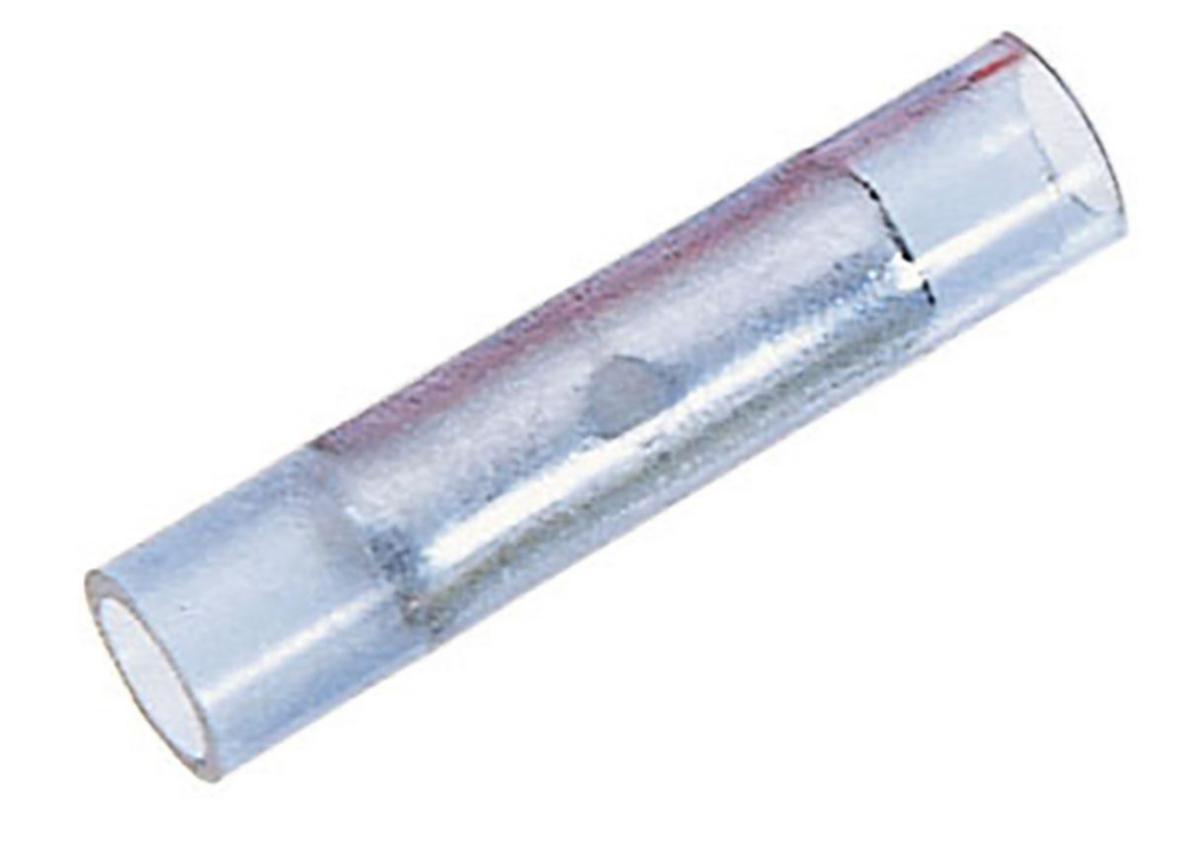

THROUGH CONNECTOR A2527SK
Article number: Suppl. article no:
0822514
7288-500300
to see price and stock
Made of tinned copper. Insulation of halogen-free PC without “easy-entry".
- Article number: 0822514
- Suppl. article no: 7288-500300
- Ean no: 7393487004825
- Material class QB7800
Technical data
- Packagin Size: 100 PCS
- Type: A 2527 SK
- Nominal cross section: 1.5-2.5 mm²
- Model: Standard version
- Material: Copper
- Surface protection: Tinned
- Voltage level: Up to 600 V
- Sleeve form: Short
- Type of connection: Cross connector
- Colour insulation: Blue
- For pull protected connections: No
- Insulation: Polycarbonate (PC)
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: No
- Suitable for round conductors: Yes
- Oil stop/centre bar: No
- REACH Date: 2024-01-23
- REACH Information obligation: No
