Elpress

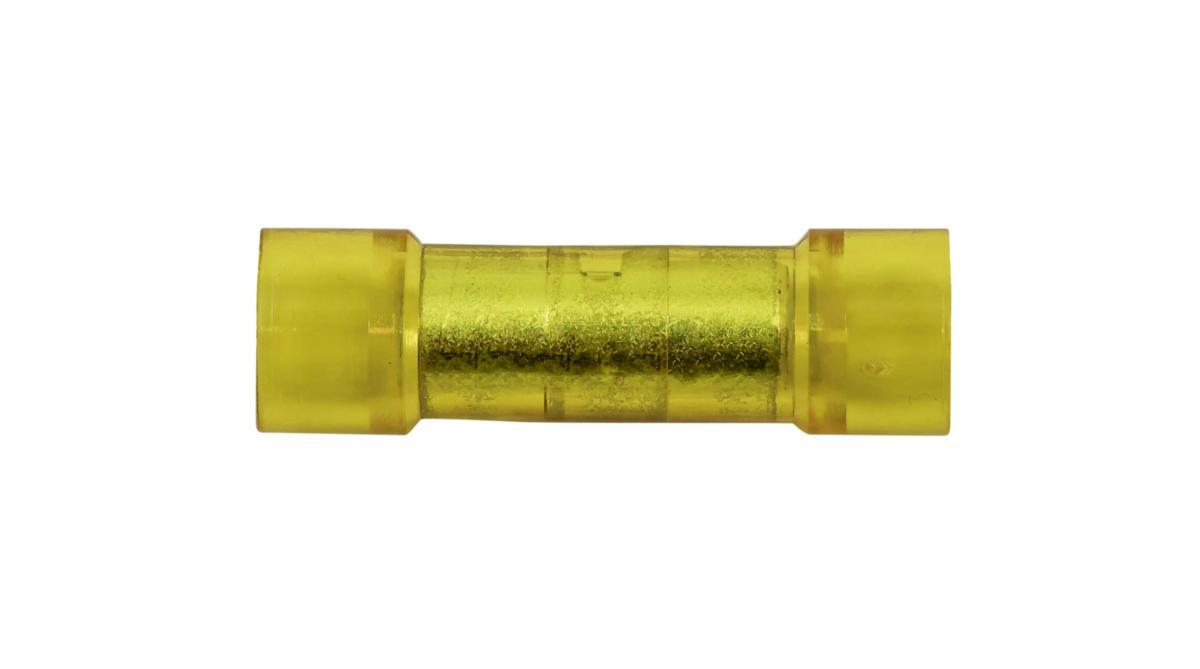

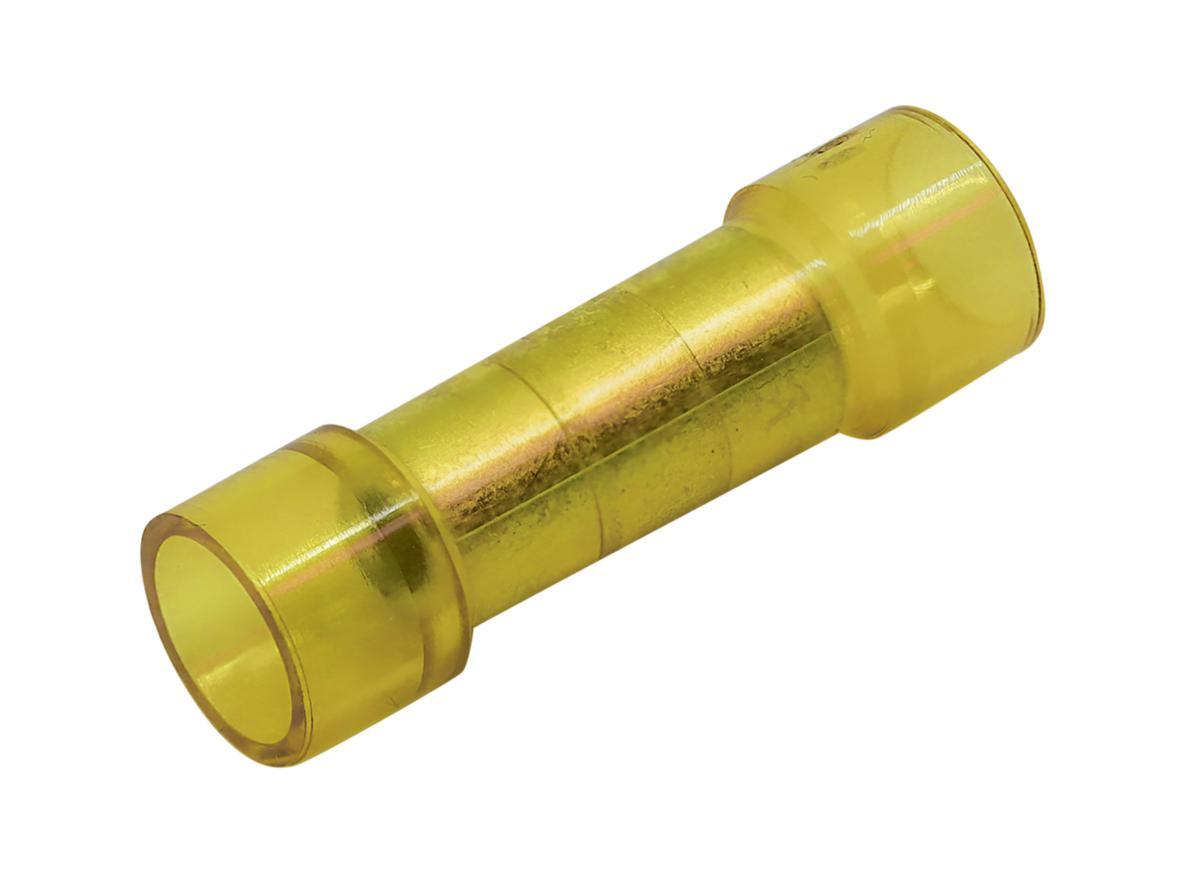

Splice sleeves SK
THROUGH CONNECTORS
Article number: Suppl. article no:
0813207
7289-500500
to see price and stock
Material: Cu 99.95%, tinned Cu/Sn, contact sleeve made of Cu tube. Halogen-free PC insulation, not Easy-entry. Used with certified tool GSA0760.
- Article number: 0813207
- Suppl. article no: 7289-500500
- Ean no: 7393487101852
- Replaces art.nbr: 0822516
- Material class QB7800
Technical data
- Packagin Size: 50 PCS/250 PCS
- Type: A 4652 SK
- Nominal cross section: 4-6 mm²
- Colour insulation: Yellow
- Model: Standard version
- Material: Copper
- Surface protection: Tinned
- Voltage level: Up to 600 V
- Sleeve form: Short
- Type of connection: Parallel connector
- For pull protected connections: No
- Insulation: Polycarbonate (PC)
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: Yes
- Suitable for round conductors: Yes
- Oil stop/centre bar: No
- REACH Date: 2025-12-10
- REACH Information obligation: No
- Min. AWG-size: 12
- Max. AWG-size: 10
