Elpress

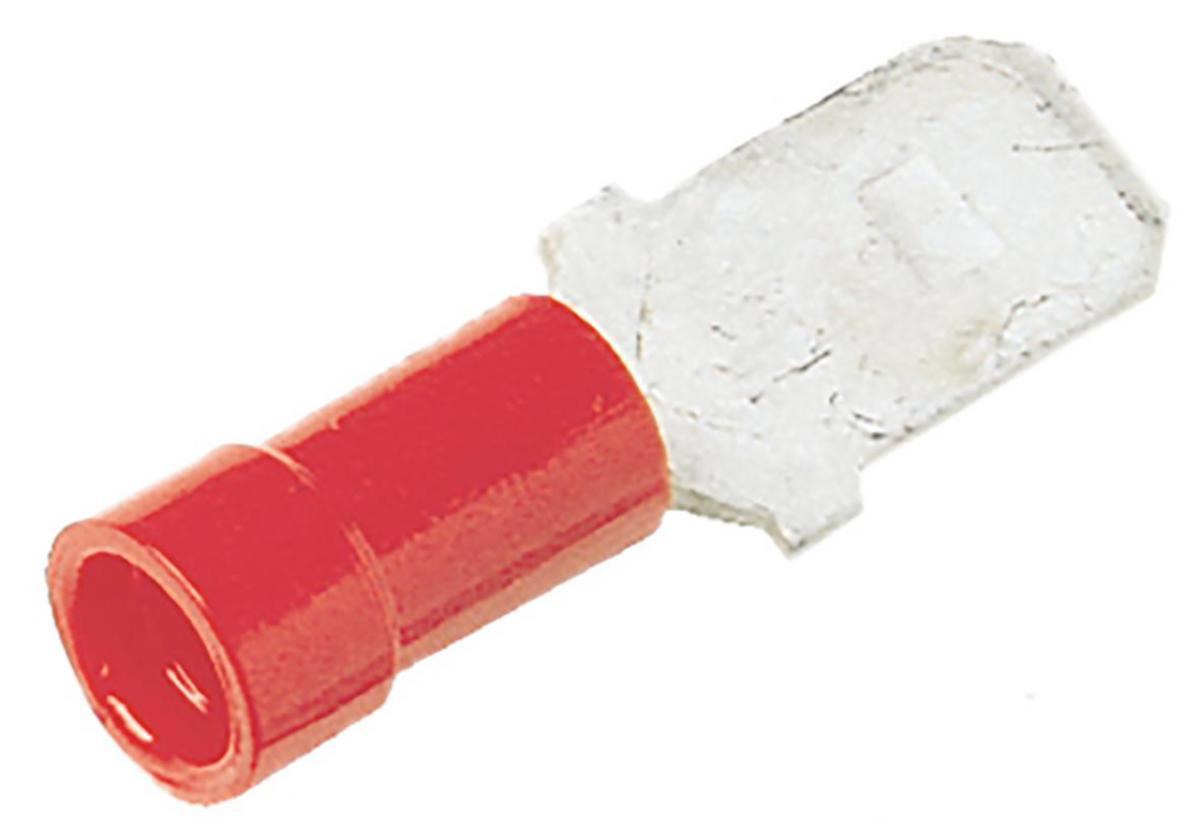

Flat pin, insulated
TAB A1507H
Article number: Suppl. article no:
0822370
7458-341300
to see price and stock
Flat pins, 0.5–6 mm². Material: brass, tin-plated Cu/Sn, brazed neck. PC and PA insulation features an easy-entry design; the PC insulation is halogen-free.
- Article number: 0822370
- Suppl. article no: 7458-341300
- Ean no: 7393487004870
- Material class QB780A
- This is an alternative to item 0813349
Technical data
- Packagin Size: 100 PCS/1000 PCS
- Type: A 1507H
- Model: Plug
- Nominal cross section: 0.5-1.5 mm²
- Colour insulation: Red
- Plug dimensions: Flat 6.3x0.8 mm
- Insulation: Partially insulated
- Material: Brass
- Material insulation: Polycarbonate (PC)
- Surface protection: Tinned
- Halogen free: Yes
- For tool: GSA0760
- REACH Date: 2024-01-23
- REACH Information obligation: No
