Elpress

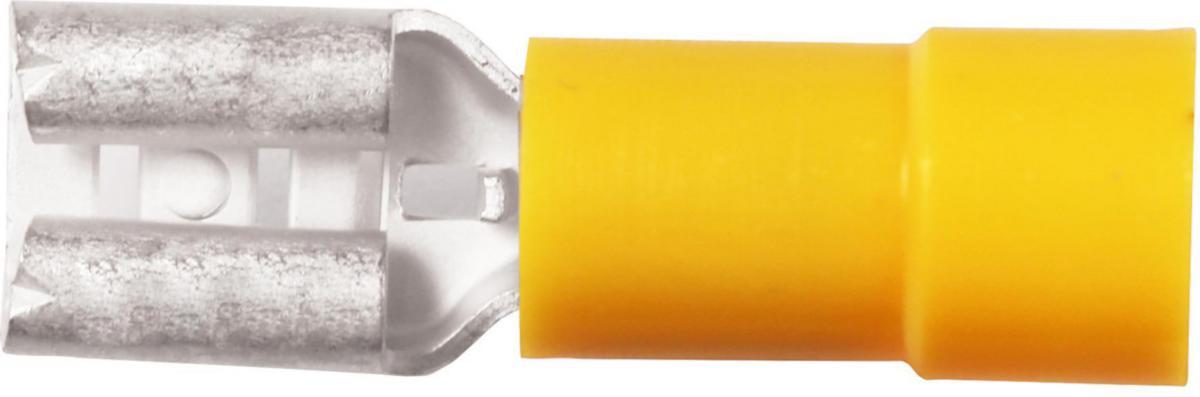

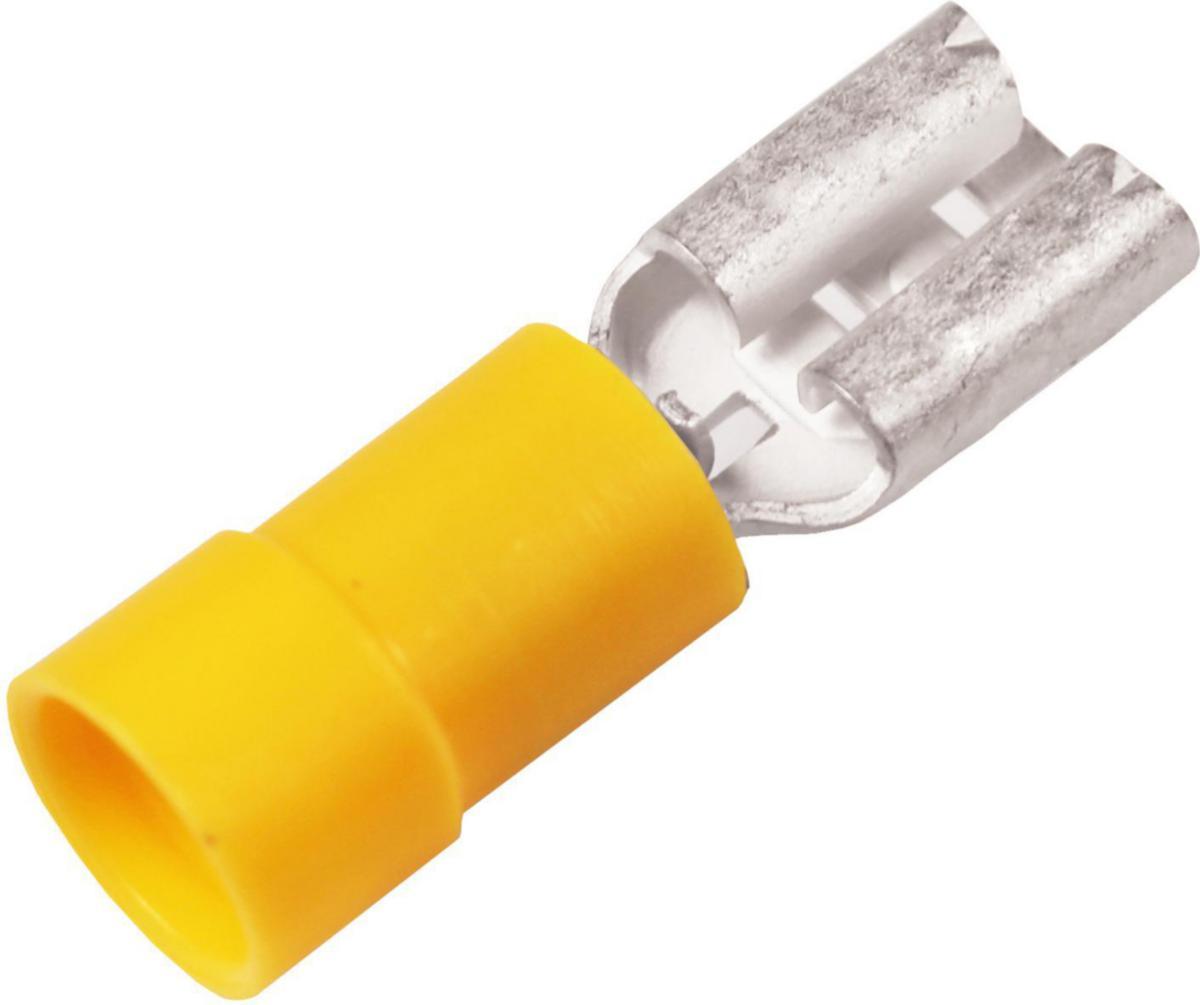

Flat pin sleeves, rolled model
RECEPTACLE A4607FLS
Article number: Suppl. article no:
0822326
7463-256000
to see price and stock
Flat pin sleeves, rolled type, 0.1–6 mm². Material: brass, tin-plated Cu/Sn, brazed neck. PC and PA insulation features easy entry; the PC insulation is halogen-free.
- Article number: 0822326
- Suppl. article no: 7463-256000
- Ean no: 7393487004979
- Material class QB780A
Technical data
- Packagin Size: 100 PCS/500 PCS
- Type: A4607FLS
- Model: Bushing
- Nominal cross section: 4-6 mm²
- Colour insulation: Yellow
- Design: 12-10 AWG
- Plug dimensions: Flat 6.3x0.8 mm
- Insulation: Partially insulated
- Material: Brass
- Material insulation: Polycarbonate (PC)
- Surface protection: Tinned
- With cam clamp: No
- With tap spreader: No
- Halogen free: Yes
- REACH Date: 2024-01-23
- REACH Information obligation: No
