Flat pin sleeves, rolled model - RECEPTACLE A1507FLS5

https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/23/29/ProductImage34762329.jpg

https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/23/30/ProductImage34762330.jpg

Elpress

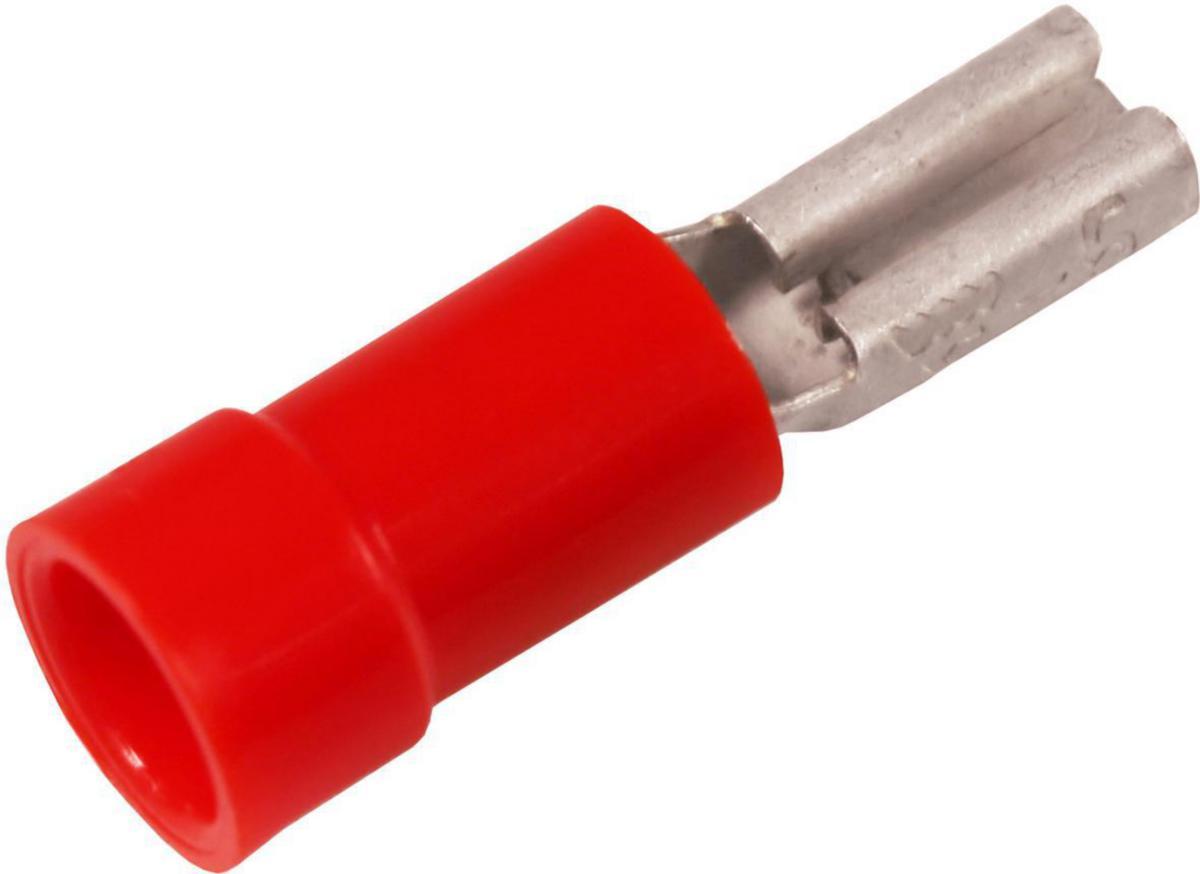

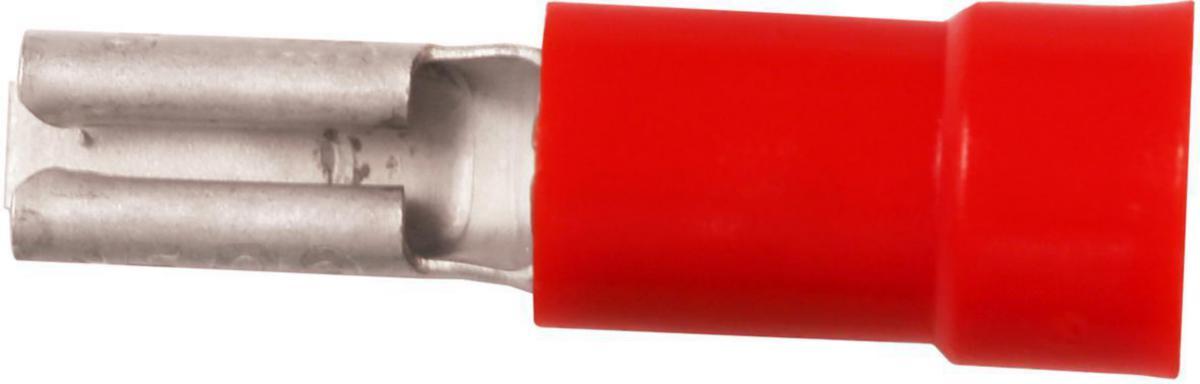

Flat pin sleeves, rolled model

RECEPTACLE A1507FLS5

Article number:

0822306

Suppl. article no:

7463-400100

‌
‌
‌

‌
‌

to see price and stock

Flat pin sleeves, rolled model, of brass. Insulation of PC with “easy-entry".

Article number:
0822306
Copy to clipboard
Suppl. article no:
7463-400100
Copy to clipboard
Ean no:
7393487004900
Copy to clipboard
Material class
QB780B
Copy to clipboard

Technical data

Packagin Size: 100 PCS/1000 PCS
Type: A1503 FLS5
Model: Bushing
Nominal cross section: 0.5-1.5 mm²
Colour insulation: Red
AWG-range: 16-20
Plug dimensions: Flat 2.8x0.5 mm
Insulation: Partially insulated
Material: Brass
Material insulation: Polycarbonate (PC)
Surface protection: Tinned
With cam clamp: No
With tap spreader: No
Halogen free: Yes
REACH Date: 2024-01-23
REACH Information obligation: No
