Elpress

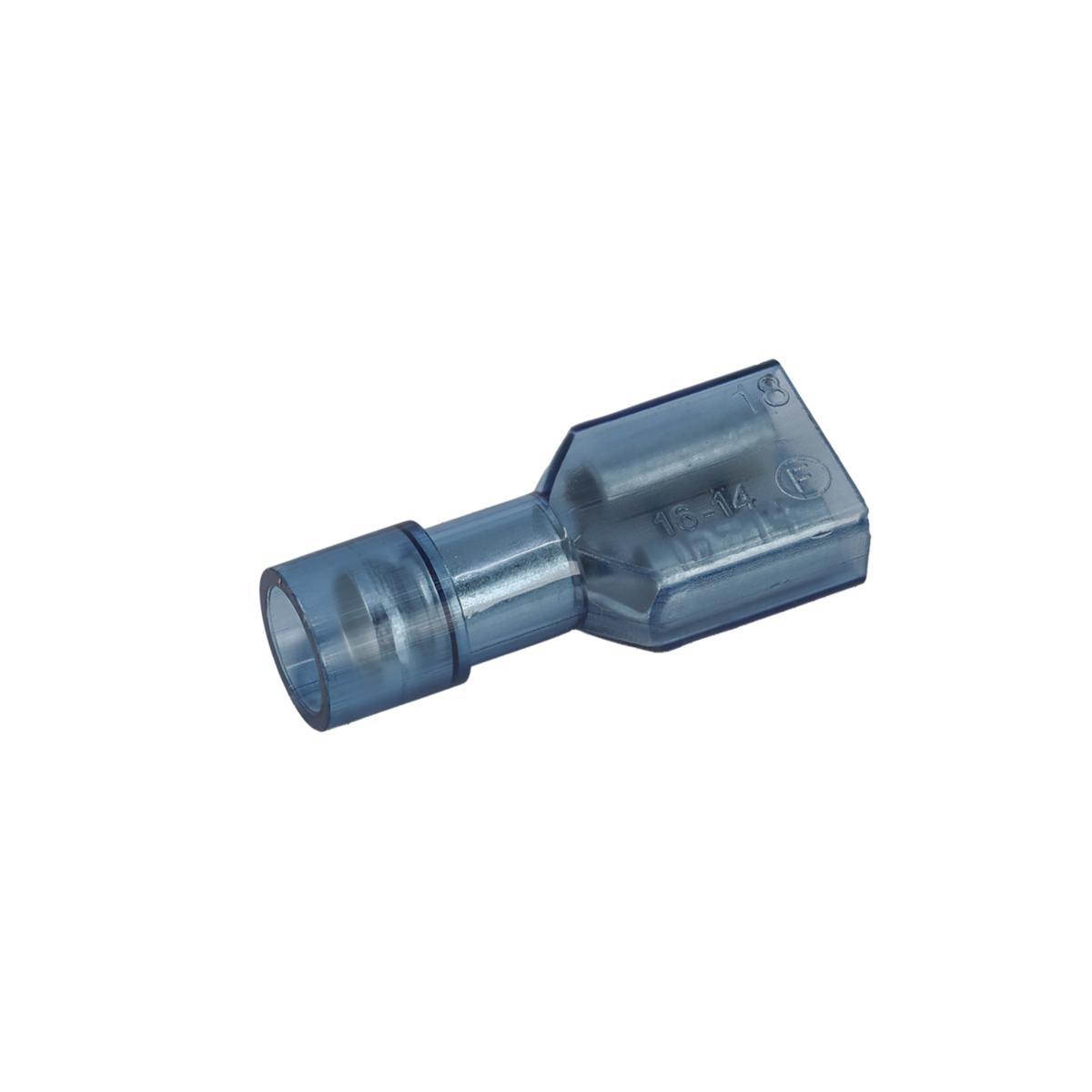

Fully insulated flat-pin connector, consumer FP
RECEPTACLE 1,5-2,5 10-P
Article number: Suppl. article no:
0813386
7467-400903
to see price and stock
Flat-pin sleeves, helical-insulated, rolled type, 0.5–6 mm². Material: brass, tin-plated Cu/Sn, brazed neck. PC and PA insulation features easy entry; PC and PA are halogen-free.
- Article number: 0813386
- Suppl. article no: 7467-400903
- Ean no: 7393487102590
- Material class QB7800
Technical data
- Packagin Size: 1 Pack/10 Pack
- Type: A2507FLSF-CP
- Model: Bushing
- Nominal cross section: 1.5-2.5 mm²
- Colour insulation: Blue
- Design: FLS 6,3x0,8
- Min. AWG-size: 16
- Max. AWG-size: 14
- Insulation: Fully insulated
- Material: Brass
- Material insulation: Polycarbonate (PC)
- Surface protection: Tinned
- Halogen free: Yes
- REACH Date: 2026-07-20
- REACH Information obligation: No
