Elpress

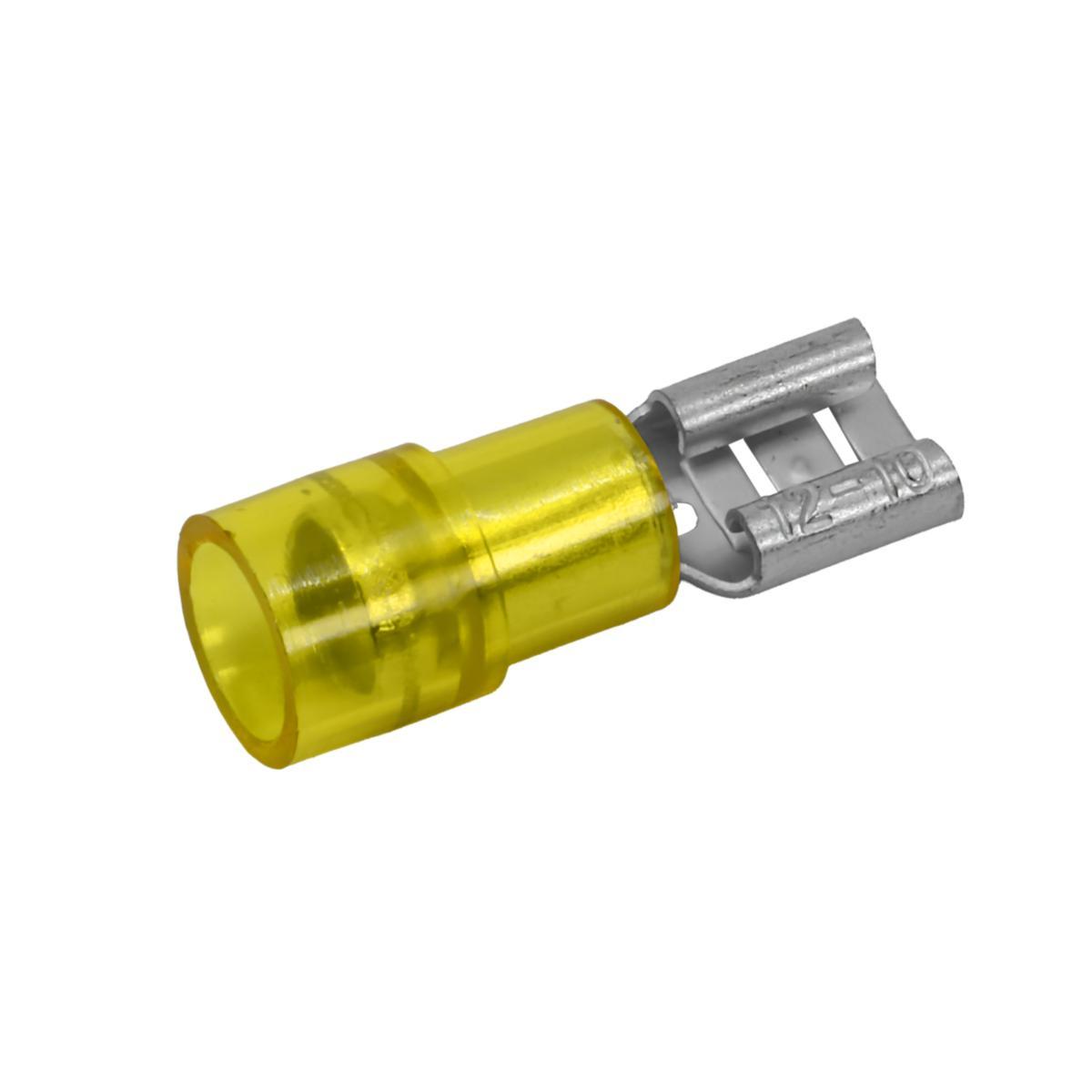

Flat pin sleeves, rolled model
RECEPTACLE 4-6
Article number: Suppl. article no:
0813351
7464-256000
to see price and stock
Flat pin sleeves, rolled type, 0.1–6 mm². Material: brass, tin-plated Cu/Sn, brazed neck. PC and PA insulation features easy entry; the PC insulation is halogen-free.
- Article number: 0813351
- Suppl. article no: 7464-256000
- Ean no: 7393487102996
- Material class QB7800
- This is an alternative to item 0822326
Technical data
- Packagin Size: 100 PCS
- Type: A4607FLS
- Model: Bushing
- Nominal cross section: 4-6 mm²
- Colour insulation: Yellow
- Design: 12-10 AWG
- Plug dimensions: Flat 6.3x0.8 mm
- Insulation: Partially insulated
- Material: Brass
- Material insulation: Polycarbonate (PC)
- Surface protection: Tinned
- Halogen free: Yes
- REACH Date: 2026-07-20
- REACH Information obligation: No
