Elpress

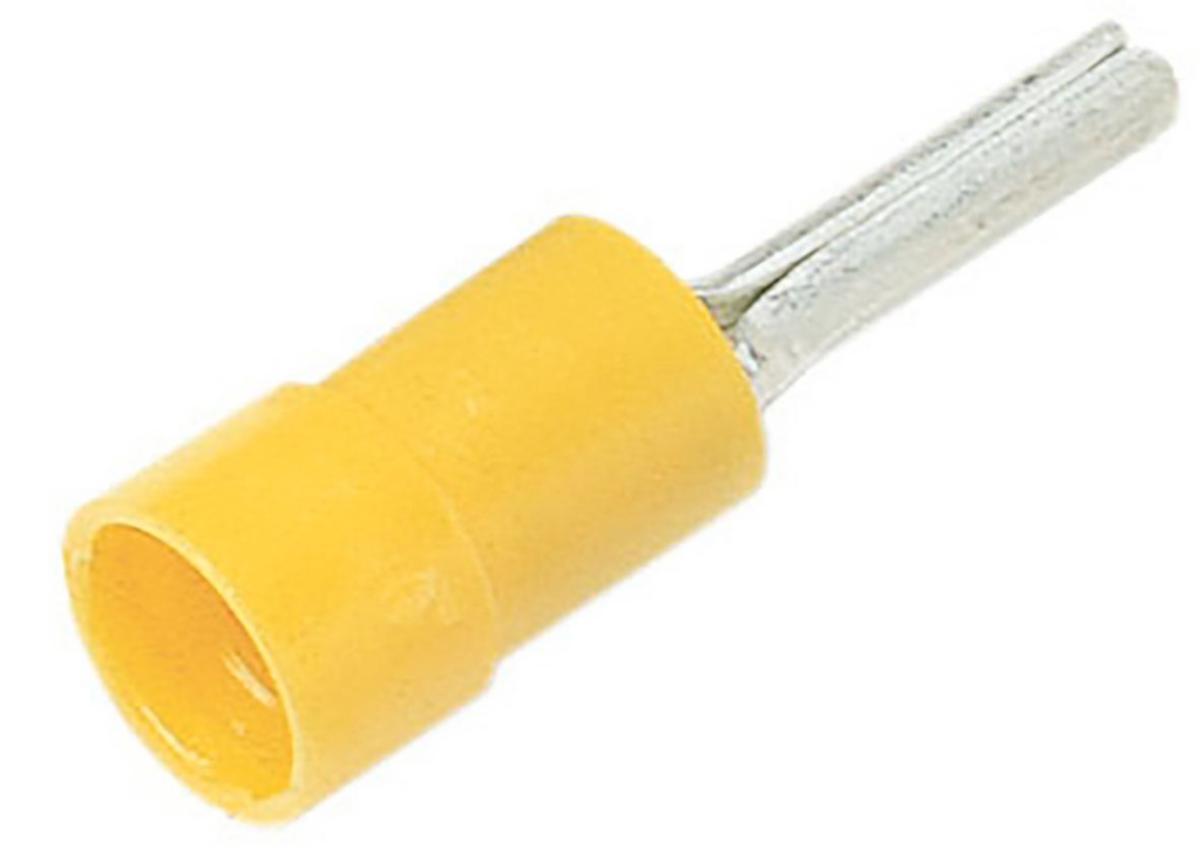

Pin cable lug, Electric press
PIN TERMINAL A4630SR
Article number: Suppl. article no:
0822260
7278-463000
to see price and stock
Insulated pin cable shoe. Material: Cu 99,95%, pre-exam Cu/Sn, hard foam neck. With easy-entry, halogen-free.
Recommended tool for red and blue: GSA0760.
Recommended green tool: DSA0115.
Recommended tool for red and blue: GSA0760.
Recommended green tool: DSA0115.
- Article number: 0822260
- Suppl. article no: 7278-463000
- Ean no: 7393487004740
- Material class QB780B
Technical data
- Packagin Size: 100 ST
- Flange shape: Pin shape
- Nominal cross section: 4-6 mm²
- Material: Copper
- Surface protection: Tinned
- Colour insulation: Yellow
- For pull protected connections: No
- Sleeve form: Short
- Insulation: Polycarbonate (PC)
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: No
- Suitable for round conductors: Yes
- According to DIN: No
- Halogen free: Yes
- Total length: 27 mm
- Reel/roll packaging: No
- REACH Date: 2024-01-23
- REACH Information obligation: No
