Elpress

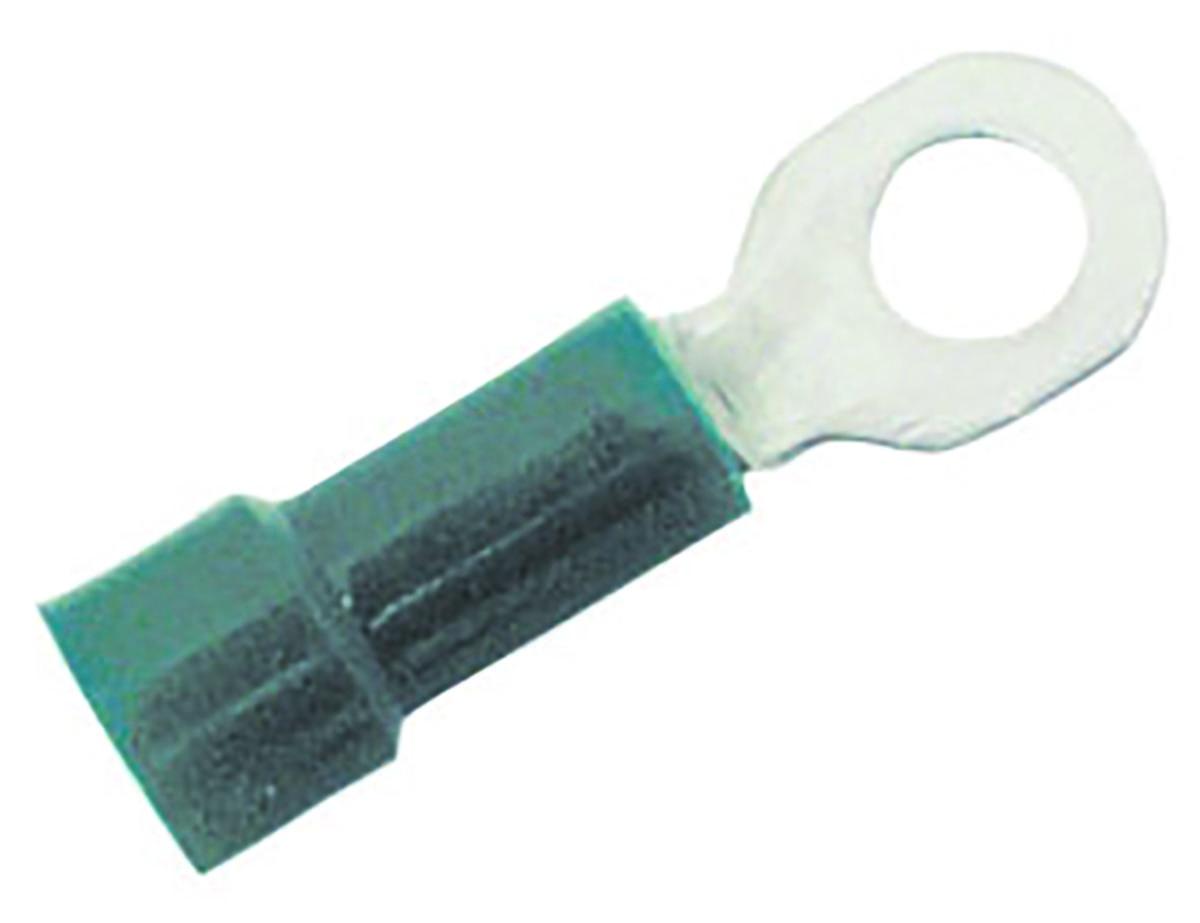

Ring connector R
RING TERMINALS A0843R
Article number: Suppl. article no:
0822012
7278-260300
to see price and stock
Made of tinned copper. Insulation of halogen-free PC with “easy-entry".
- Article number: 0822012
- Suppl. article no: 7278-260300
- Ean no: 7393487004306
- Material class QB780B
Technical data
- Packagin Size: 100 ST
- Type: A 0843 R
- Flange shape: Ring shape
- Nominal cross section: 0.25-0.75 mm²
- Material: Copper
- Surface protection: Tinned
- Colour insulation: Green
- Bolt dimension (metric): 4
- For pull protected connections: No
- Sleeve form: Short
- Insulation: Polycarbonate (PC)
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: No
- Suitable for round conductors: Yes
- According to DIN: No
- Halogen free: Yes
- Total length: 21 mm
- Reel/roll packaging: No
- REACH Date: 2024-01-23
- REACH Information obligation: No
