Elpress

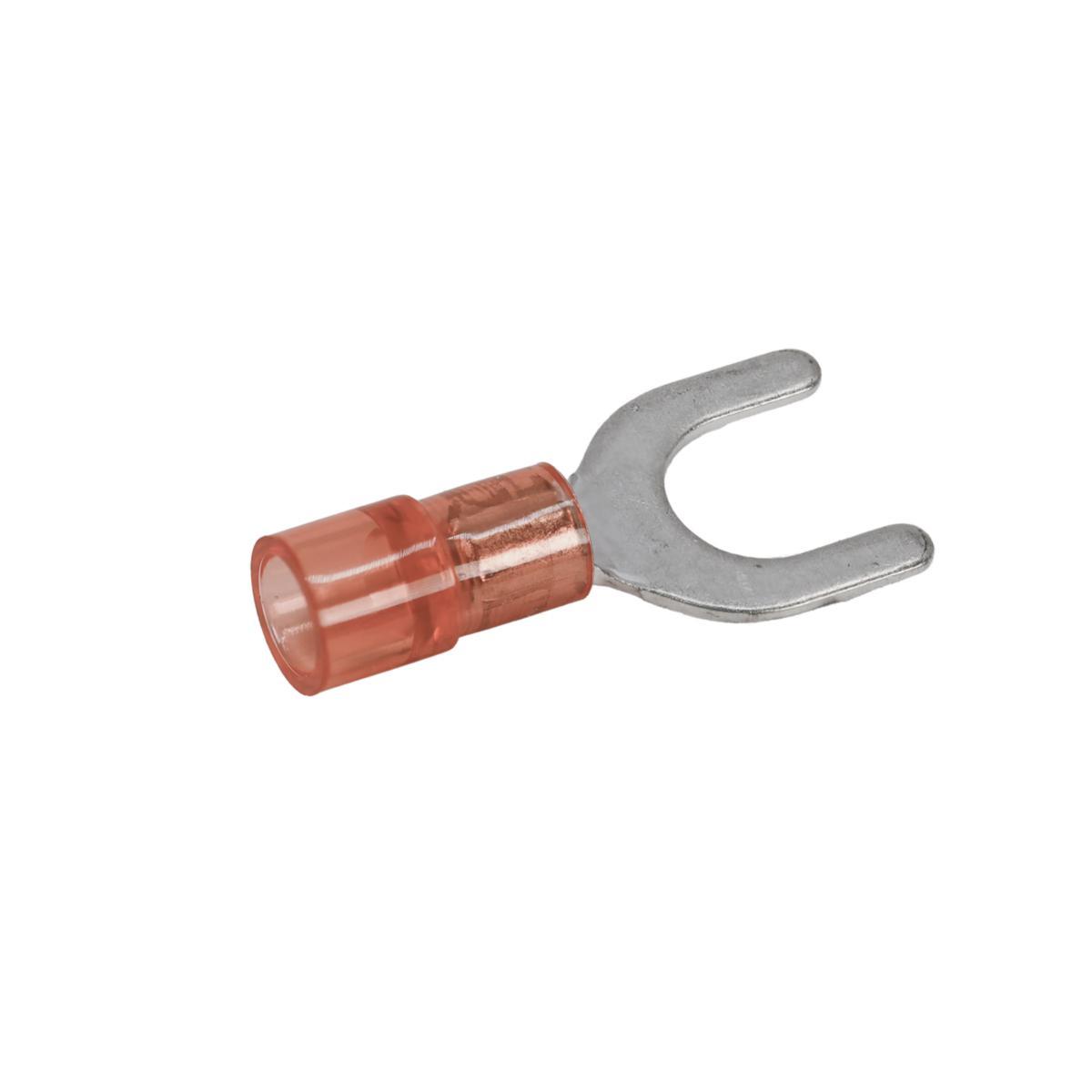

Fork-type cable lug, insulated
FORK TERMINAL 0,5-1,5 M6
Article number: Suppl. article no:
0813328
7280-270900
to see price and stock
Insulated fork-type cable lug made of tinned copper (99.95% Cu) with halogen-free insulation. The easy-entry design facilitates cable insertion and enables quick and easy installation in screw terminals. Suitable for use at temperatures ranging from -40 °C to +120 °C.
- Article number: 0813328
- Suppl. article no: 7280-270900
- Ean no: 7393487102460
- Replaces art.nbr: 0822136
- Material class QB7800
Technical data
- Packagin Size: 100 PCS
- Type: A1565G
- Flange shape: Fork shape
- Nominal cross section: 0.5-1.5 mm²
- Max. AWG-size: 16
- Min. AWG-size: 22
- Colour insulation: Red
- Bolt dimension (metric): 6
- Material: Copper
- Surface protection: Tinned
- Suitable for pull protected connections: No
- Sleeve form: Short
- Insulation: Polycarbonate (PC)
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: Yes
- Suitable for round conductors: Yes
- Halogen free: Yes
- Reel/roll packaging: No
- REACH Date: 2026-07-20
- Design: Neck type: Brazed
- REACH Information obligation: No
