Elpress

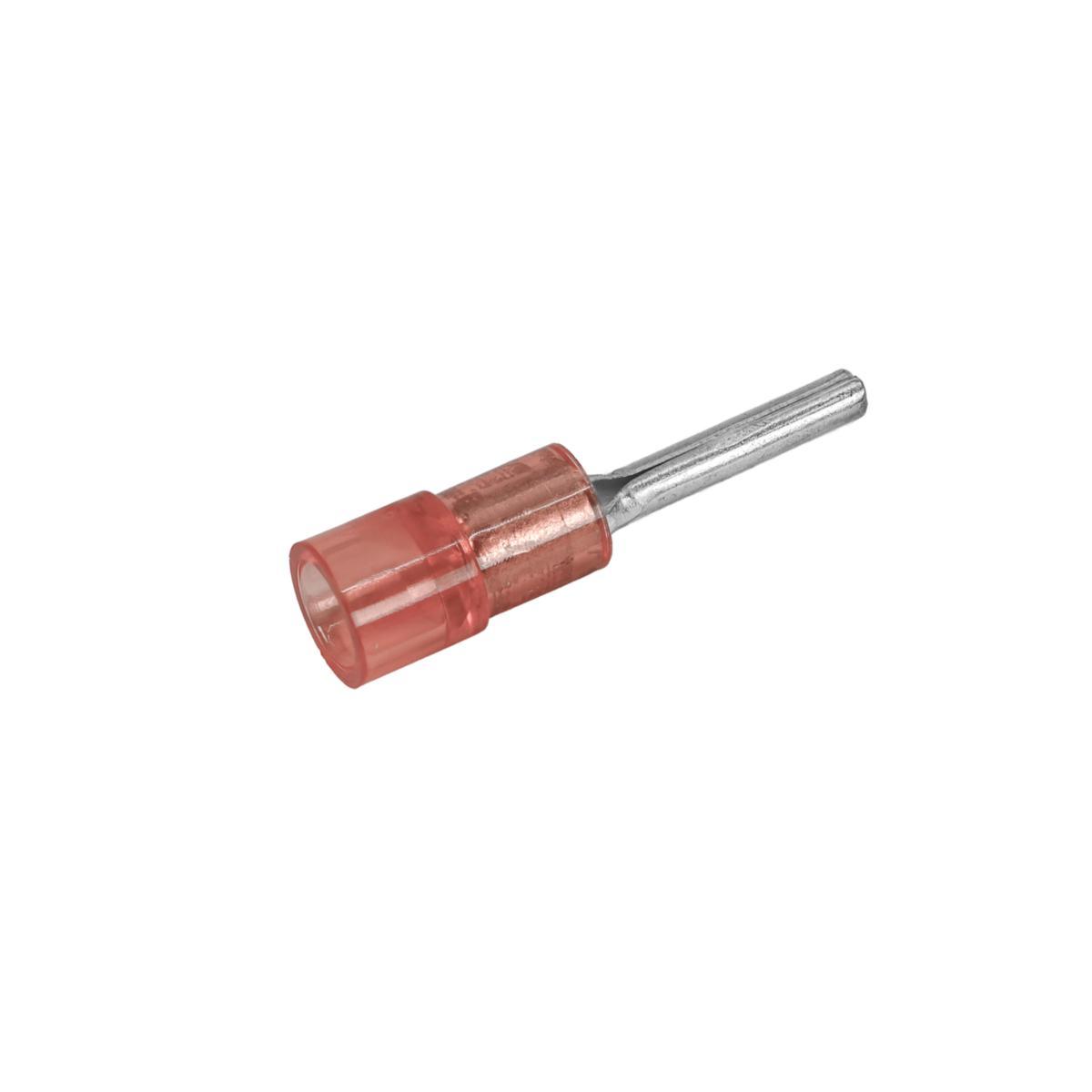

Insulated terminal block
PIN TERMINAL 0,5-1,5
Article number: Suppl. article no:
0813302
7280-151900
to see price and stock
Insulated pin cable shoe. Material: Cu 99,95%, pre-exam Cu/Sn, hard foam neck. With easy-entry, halogen-free.
Recommended tool for red and blue: GSA0760.
Recommended green tool: DSA0115.
Recommended tool for red and blue: GSA0760.
Recommended green tool: DSA0115.
- Article number: 0813302
- Suppl. article no: 7280-151900
- Ean no: 7393487102224
- Material class QB7800
Technical data
- Packagin Size: 100 PCS
- Type: A1519SR
- Flange shape: Pin shape
- Nominal cross section: 0.5-1.5 mm²
- Max. AWG-size: 16
- Min. AWG-size: 22
- Colour insulation: Red
- Material: Copper
- Surface protection: Tinned
- Total length: 22.5 mm
- Sleeve form: Short
- Insulation: Polycarbonate (PC)
- Suitable for fine strand conductors: Yes
- Suitable for stranded conductors: Yes
- Suitable for round conductors: Yes
- Halogen free: Yes
- REACH Date: 2026-07-20
- REACH Information obligation: No
