Elpress

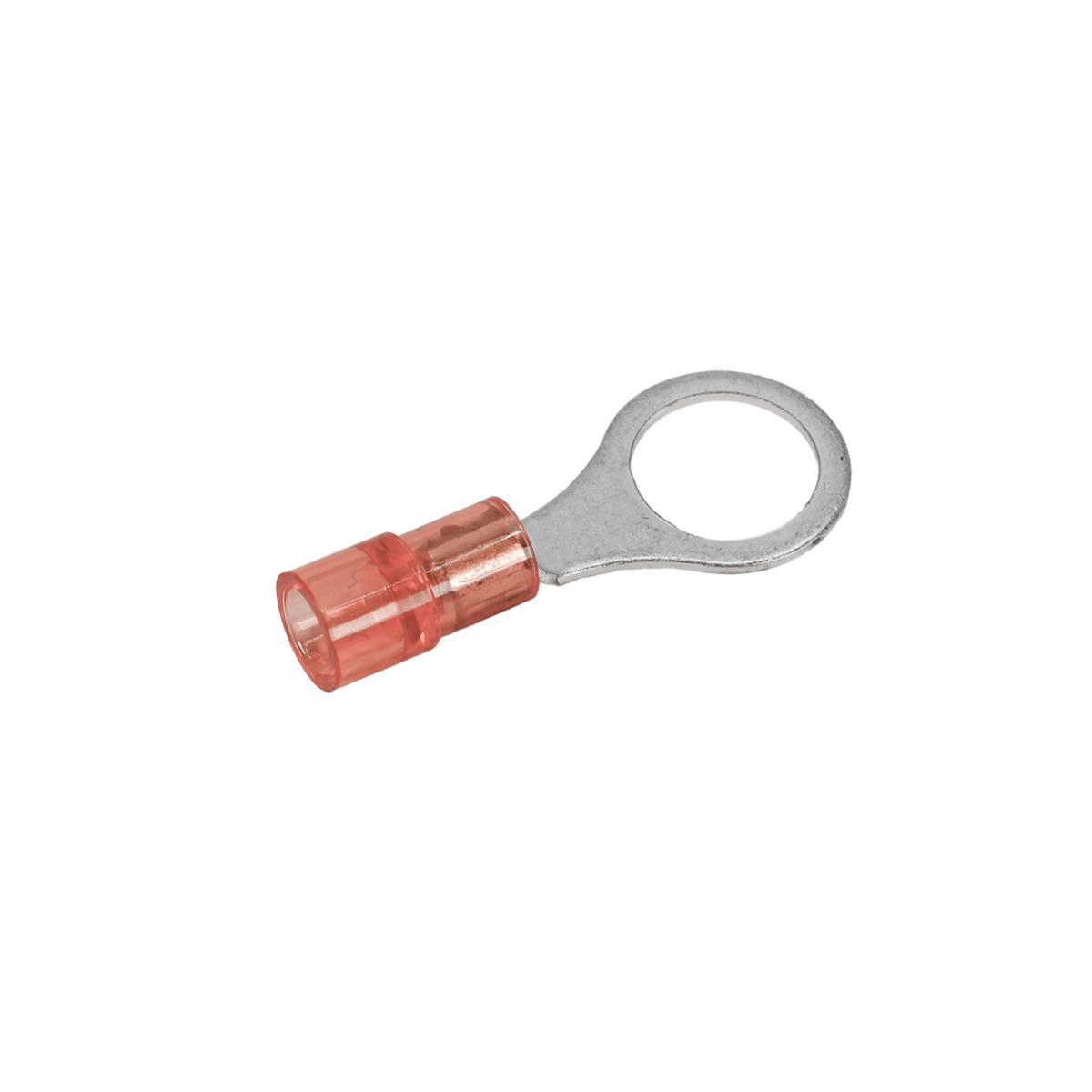

Ring Cable Terminal, Insulated
RING TERMINAL 0,5-1,5 M8
Article number: Suppl. article no:
0813299
7280-061000
to see price and stock
Ring terminals, 0.5–6 mm². Material: 99.95% copper, tinned copper/tin, brazed collar. PC insulation features an easy-entry design; PC and PA are halogen-free.
- Article number: 0813299
- Suppl. article no: 7280-061000
- Ean no: 7393487102521
- Material class QB7800
Technical data
- Packagin Size: 100 PCS
- Type: A1585R
- Flange shape: Ring shape
- Nominal cross section: 0.5-1.5 mm²
- Max. AWG-size: 16
- Min. AWG-size: 22
- Colour insulation: Red
- Bolt dimension (metric): 8
- Material: Copper
- Surface protection: Tinned
- Suitable for pull protected connections: No
- Sleeve form: Short
- Insulation: Polycarbonate (PC)
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: Yes
- Suitable for round conductors: Yes
- Halogen free: Yes
- Reel/roll packaging: No
- REACH Date: 2026-07-20
- Design: Neck type: Brazed
- REACH Information obligation: No
