AhlsellProductsElectricMains power supply equipment 06-0908 Connection equipmentIsolated connectionsCable shoes
Elpress

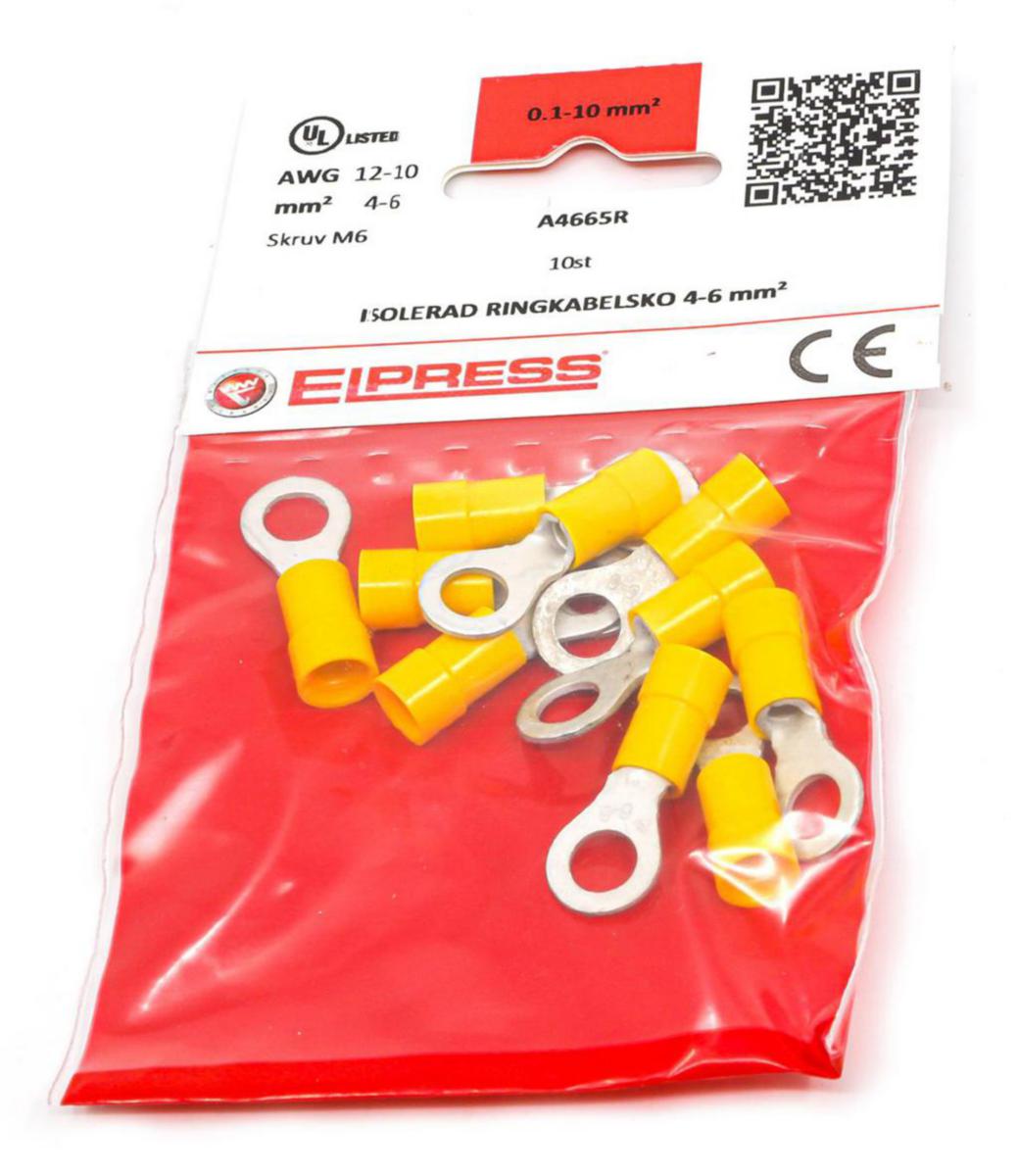

Ring cable shoe, consumer FP
RING TERMINAL A4665R A4665R-CP
Article number: Suppl. article no:
0812416
7278-262303
to see price and stock
Insulated ring cable shoe, made of material Cu, fluted, plastic PC. Used with the certified tool GSA0760.
- Article number: 0812416
- Suppl. article no: 7278-262303
- Ean no: 7393487085381
- Material class QB780B
Technical data
- Packagin Size: 1 FRP/10 FRP
- Type: A4665R-CP
- Flange shape: Ring shape
- Nominal cross section: 4-6 mm²
- Material: Copper
- Surface protection: Tinned
- Colour insulation: Yellow
- Bolt dimension (metric): 6
- For pull protected connections: No
- Sleeve form: Short
- Insulation: Polycarbonate (PC)
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: No
- Suitable for round conductors: Yes
- According to DIN: No
- Halogen free: Yes
- Total length: 28.5 mm
- Reel/roll packaging: No
- REACH Date: 2024-01-23
- REACH Information obligation: No
