Elpress
Pipe cable lug KR, consumer FP

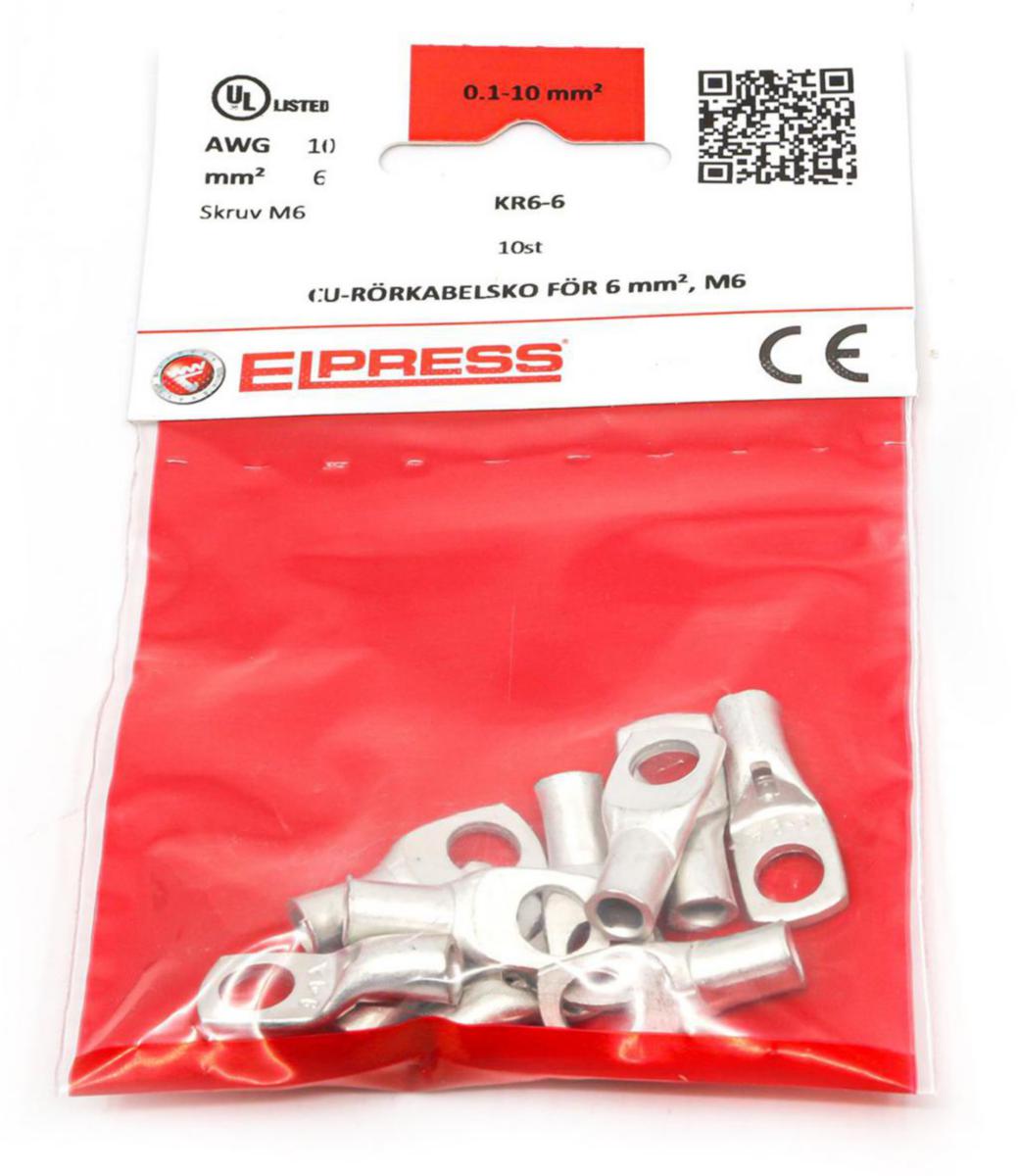

CU TUBE TERMINAL KR6-6-CP
Article number: Suppl. article no:
0812448
7301-011503
to see price and stock
Pipe cable shoe for multi-wire and low-wire copper conductor (in accordance with IEC 60228). UL approved. Material; 99.95% Cu / diluted (Cu / Sn).
- Article number: 0812448
- Suppl. article no: 7301-011503
- Ean no: 7393487085701
- Material class QB780B
Technical data
- Packagin Size: 1 FRP/10 FRP
- Type: KR6-6-CP
- Nominal cross section: 6 mm²
- Material: Copper
- With sight-hole: Yes
- Connecting angle: 180° (horizontal)
- Number of mounting holes: 1
- Bolt dimension (metric): 6
- Flange shape: Ring shape
- Slender flange model: No
- Conductor category: Several
- Insulated: No
- Surface protection: Tinned
- AWG size: 10
- GWP-tot (A1-A3): 0,1212 kgCO2e/FRP
- REACH Date: 2024-01-23
- REACH Information obligation: No
