Elpress
Pipe cable lug KR, consumer FP

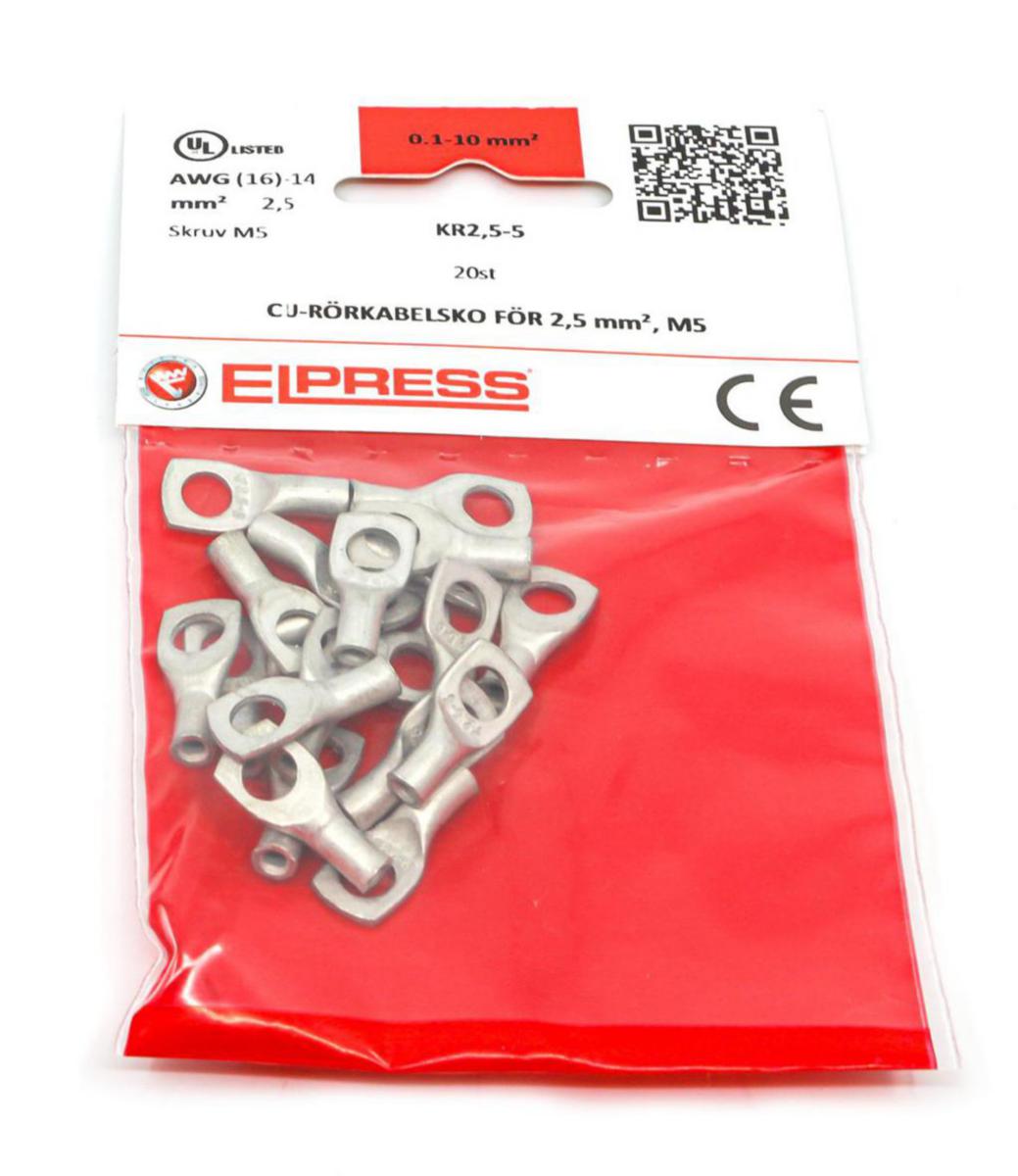

CU TUBE TERMINAL KR2.5-5-CP
Article number: Suppl. article no:
0812442
7301-010803
to see price and stock
Pipe cable shoe for multi-wire and low-wire copper conductor (in accordance with IEC 60228). UL approved. Material; 99.95% Cu / diluted (Cu / Sn).
- Article number: 0812442
- Suppl. article no: 7301-010803
- Ean no: 7393487085640
- Material class QB780B
Technical data
- Packagin Size: 1 FRP/10 FRP
- Type: KR2.5-5-CP
- Nominal cross section: 2.5 mm²
- Material: Copper
- With sight-hole: Yes
- Number of mounting holes: 1
- Bolt dimension (metric): 5
- Flange shape: Ring shape
- Slender flange model: No
- Conductor category: Several
- Insulated: No
- Surface protection: Tinned
- GWP-tot (A1-A3): 0,1616 kgCO2e/FRP
- REACH Date: 2021-06-30
- REACH Information obligation: No
