Elpress

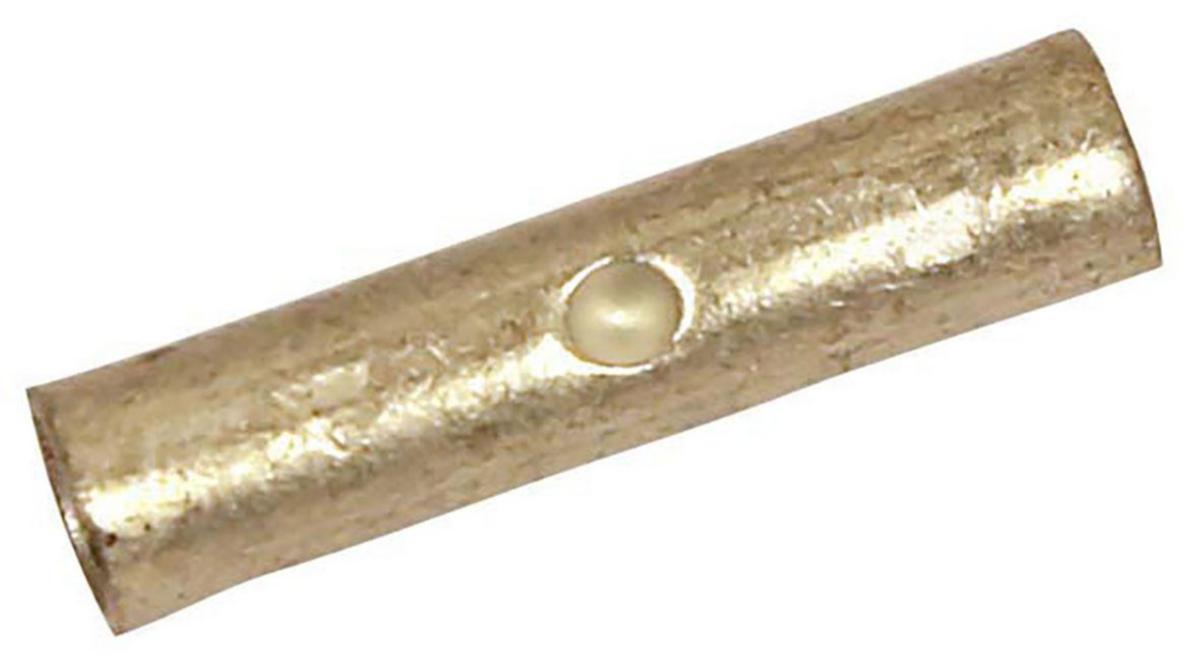

Splice sleeves CUT
CU CONNECTOR CUT6
Article number: Suppl. article no:
0825240
7303-020400
to see price and stock
For splicing of one-wire leads.
- Article number: 0825240
- Suppl. article no: 7303-020400
- Ean no: 7393487008144
- Material class QB780A
Technical data
- Packagin Size: 1 ST/100 ST/500 ST
- Type: CUT 6
- Nominal cross section: 6 mm²
- Model: Standard version
- Material: Copper
- Surface protection: Tinned
- Voltage level: Up to 35 kV
- Type of connection: Cross connector
- For pull protected connections: No
- Insulation: None
- Suitable for fine strand conductors: No
- Suitable for flat conductors: No
- Suitable for stranded conductors: No
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: Yes
- Suitable for round conductors: Yes
- Oil stop/centre bar: No
- REACH Date: 2024-01-23
- GWP-tot (A1-A3): 0,0121 kgCO2e/ST
- REACH Information obligation: No
