Elpress
Splice sleeves KSF
CU CONNECTOR KSF70
Article number: Suppl. article no:
0825222
7303-001200
to see price and stock

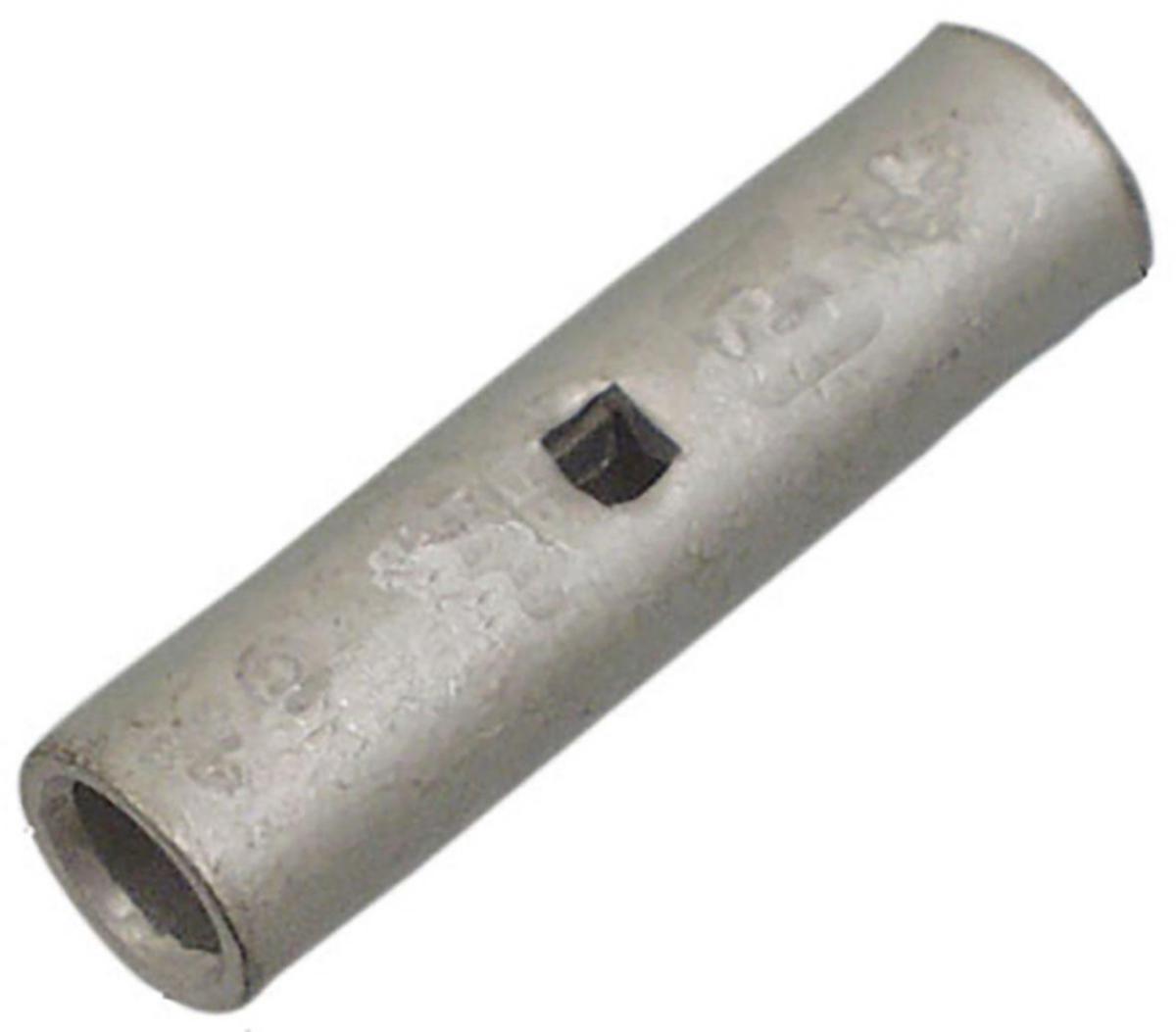

Tinned extension sleeves with inspection holes and cable stop for stranded and multi-wire leads.
Recommended tools:
Size-Tool system
KSF16 – KSF95 V600
KSF16 – KSF400 V1300
KSF120 – KSF400 V250
Recommended tools:
Size-Tool system
KSF16 – KSF95 V600
KSF16 – KSF400 V1300
KSF120 – KSF400 V250
- Article number: 0825222
- Suppl. article no: 7303-001200
- Ean no: 7393487007932
- Material class QB790A
Technical data
- Packagin Size: 1 PCS/50 PCS
- Type: KSF 70
- Nominal cross section: 70 mm²
- Model: UL model
- Material: Copper
- Surface protection: Tinned
- Voltage level: Up to 35 kV
- Sleeve form: Short
- Type of connection: Cross connector
- For pull protected connections: No
- Insulation: None
- Suitable for fine strand conductors: Yes
- Suitable for flat conductors: No
- Suitable for stranded conductors: Yes
- Suitable for high temperatures (to 650 °C): No
- Suitable for insulated varnish: No
- Suitable for solid conductors: Yes
- Suitable for round conductors: Yes
- Oil stop/centre bar: No
- REACH Date: 2024-01-23
- GWP-tot (A1-A3): 0,1454 kgCO2e/ST
- REACH Information obligation: No
