Elpress

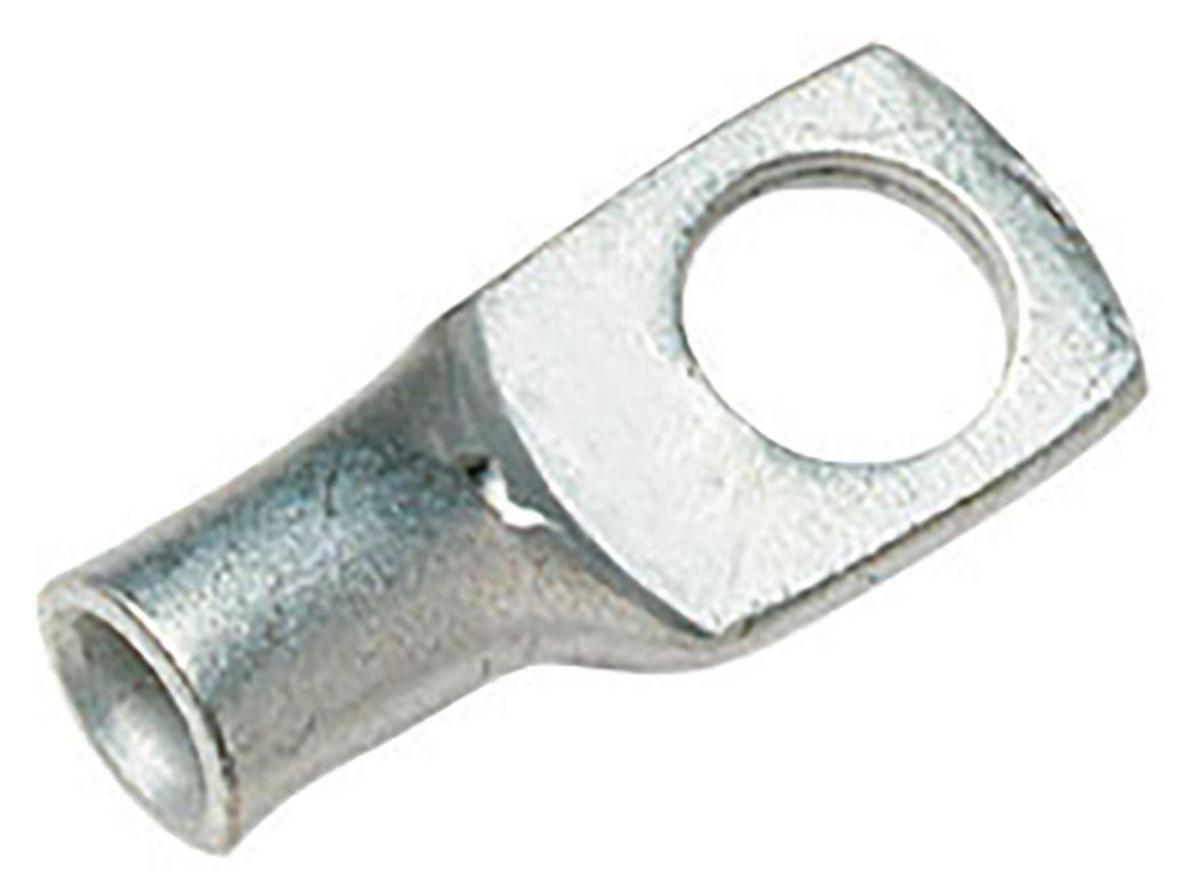

Cable lug KR
TERMINAL LUG 6-8
Article number: Suppl. article no:
0825028
7301-011600
to see price and stock
Tinned lugs with inspection holes for multi-wire and stranded CU leads.
Recommended tools:
Size - Press tool
KR0,75 – KR6 DKB0760
KR4 – KR10 GWB4099
Recommended tools:
Size - Press tool
KR0,75 – KR6 DKB0760
KR4 – KR10 GWB4099
- Article number: 0825028
- Suppl. article no: 7301-011600
- Ean no: 7393487005877
- Material class QB780A
Technical data
- Packagin Size: 1 ST/100 ST
- Type: KR 6-8
- Nominal cross section: 6 mm²
- Material: Copper
- With sight-hole: Yes
- Connecting angle: 180° (horizontal)
- Number of mounting holes: 1
- Bolt dimension (metric): 8
- Flange shape: Ring shape
- Slender flange model: No
- Conductor category: Several
- Insulated: No
- Surface protection: Tinned
- AWG size: 10
- GWP-tot (A1-A3): 0,0121 kgCO2e/ST
- REACH Date: 2024-01-23
- REACH Information obligation: No
