Elpress
Splice sleeves AKS

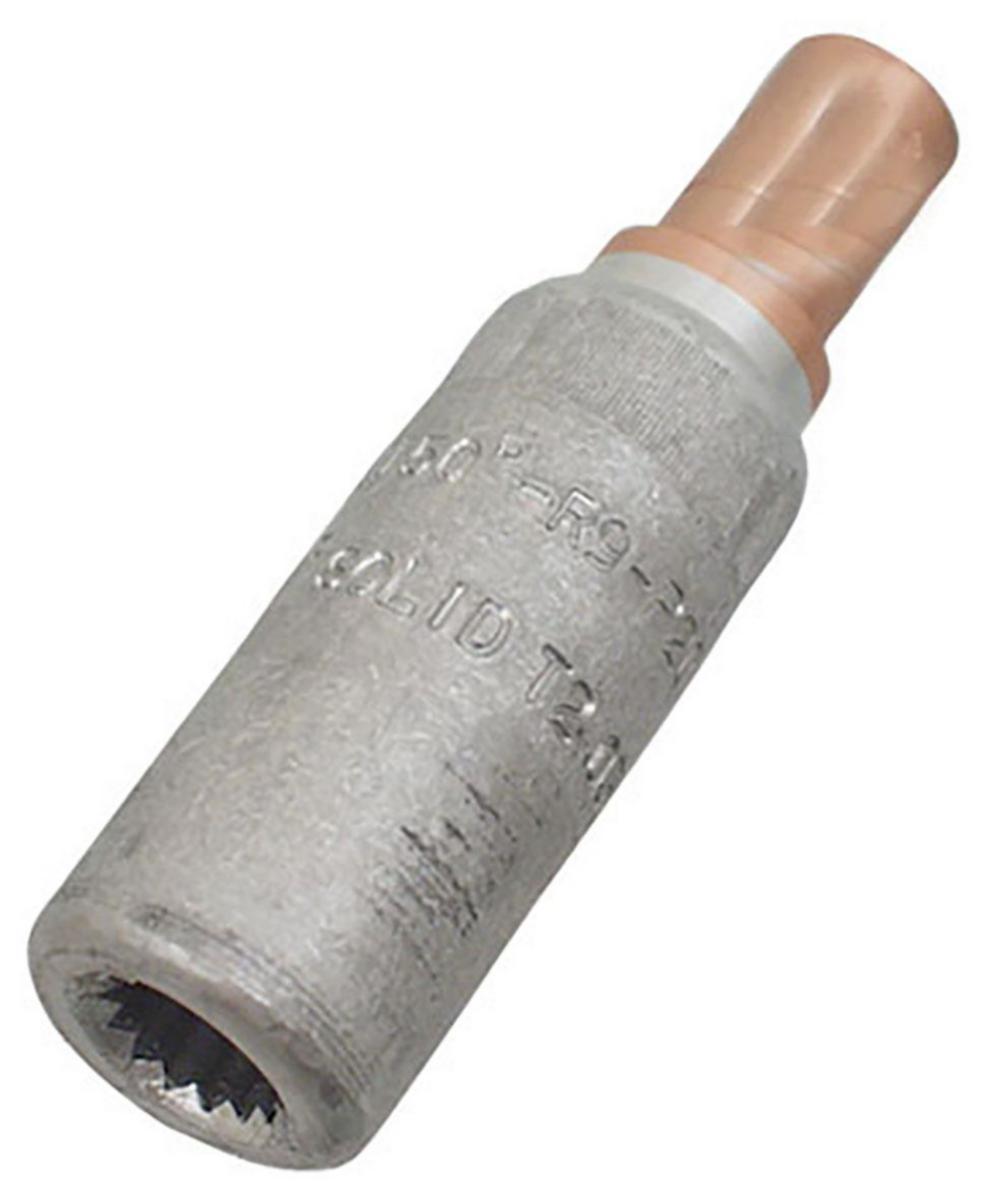

ALCU THROUGH CONNECTOR
Article number: Suppl. article no:
0826682
7333-405400
to see price and stock
Use: For splicing of aluminium lead to copper lead.
Two pressings required for the aluminium portion, and one pressing for the copper portion. The copper portion is hexagonal-pressed.
Recommended tools:
Size -Tool system
AKS16 – AKS240 V1300
AKS240 – AKS400 V250
Two pressings required for the aluminium portion, and one pressing for the copper portion. The copper portion is hexagonal-pressed.
Recommended tools:
Size -Tool system
AKS16 – AKS240 V1300
AKS240 – AKS400 V250
- Article number: 0826682
- Suppl. article no: 7333-405400
- Ean no: 7393487010208
- Material class QB790B
Technical data
- Packagin Size: 1 ST/12 ST
- Type: AKS 240-70
- Nominal cross section Cu: 70 mm²
- Nominal cross section aluminium, RM/SM: 240 mm²
- Material: Aluminium/copper
- Cross section form: Round/sector-shaped
- Voltage level: Other
- Connection as copper bolt: Yes
- Suitable for Al/St-cables: No
- Suitable for Aldrey-cables: No
- Oil stop/centre bar: Yes
- For pull protected connections: No
- REACH Date: 2024-01-23
- REACH Information obligation: No
