Elpress

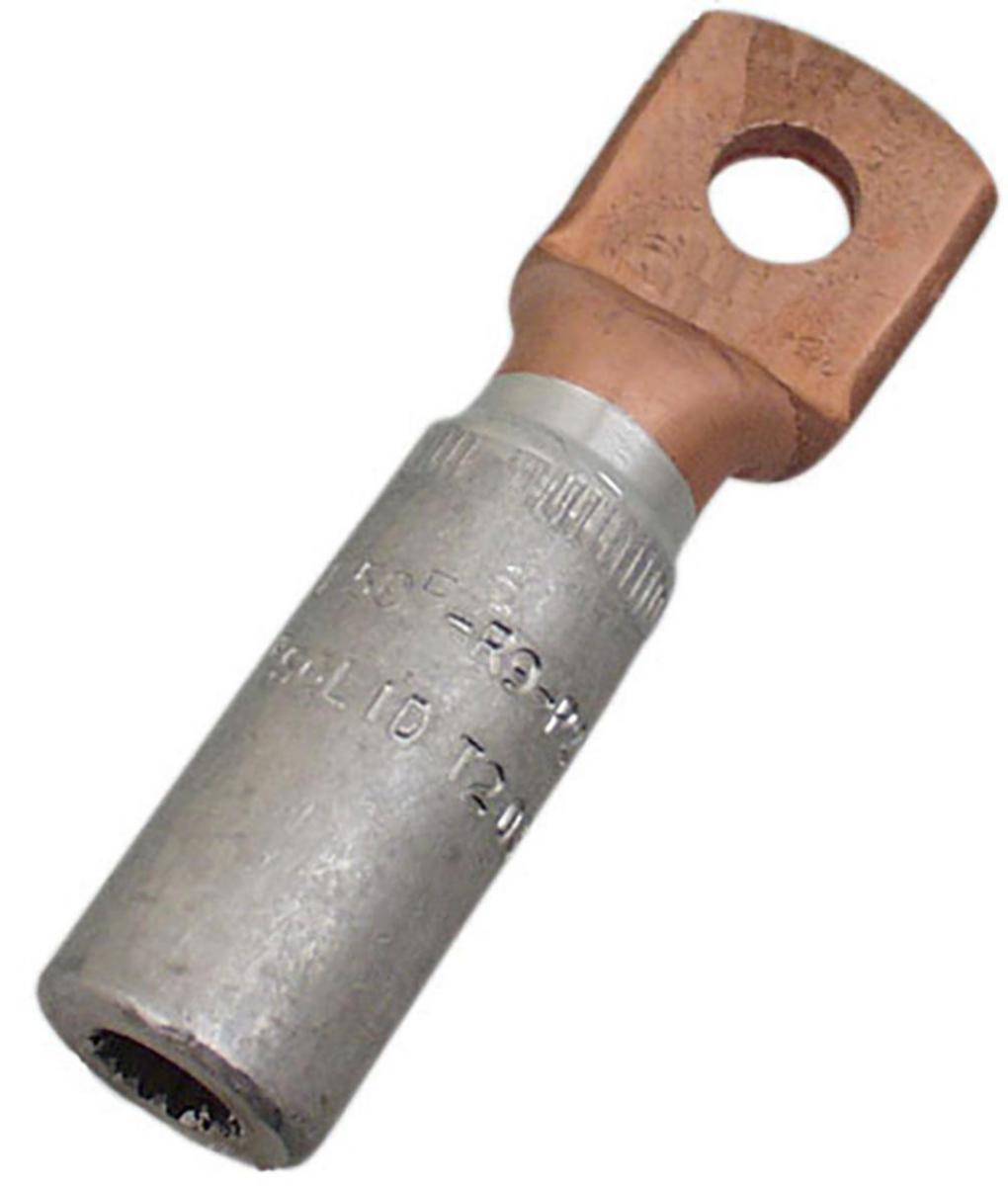

Cable lug AKK
ALCU TERMINAL LUG
Article number: Suppl. article no:
0826210
7331-401300
to see price and stock
Use: For connection of aluminium leads to devices and rails of copper.
Two pressings required.
Recommended tools:
Size - Tool system
AKK16 – AKK240 V1300
AKK240 – AKK630 V250
AKK800 – AKK1200 V1470
Two pressings required.
Recommended tools:
Size - Tool system
AKK16 – AKK240 V1300
AKK240 – AKK630 V250
AKK800 – AKK1200 V1470
- Article number: 0826210
- Suppl. article no: 7331-401300
- Ean no: 7393487009356
- Material class QB790B
Technical data
- Packagin Size: 1 ST/24 ST
- Type: AKK 50-8
- Material: Aluminium/copper
- Cross section form: Round
- Nominal cross section aluminium, RM/SM: 50 mm²
- Nominal cross section aluminium, SE: 70 mm²
- Suitable for Al/St-cables: No
- Number of mounting holes: 1
- Bolt dimension (metric): 8
- Sleeve form: Short
- According to DIN: No
- Longitudinal sealed: Yes
- Slender flange model: Yes
- According to DIN: No
- REACH Date: 2024-01-23
- REACH Information obligation: No
