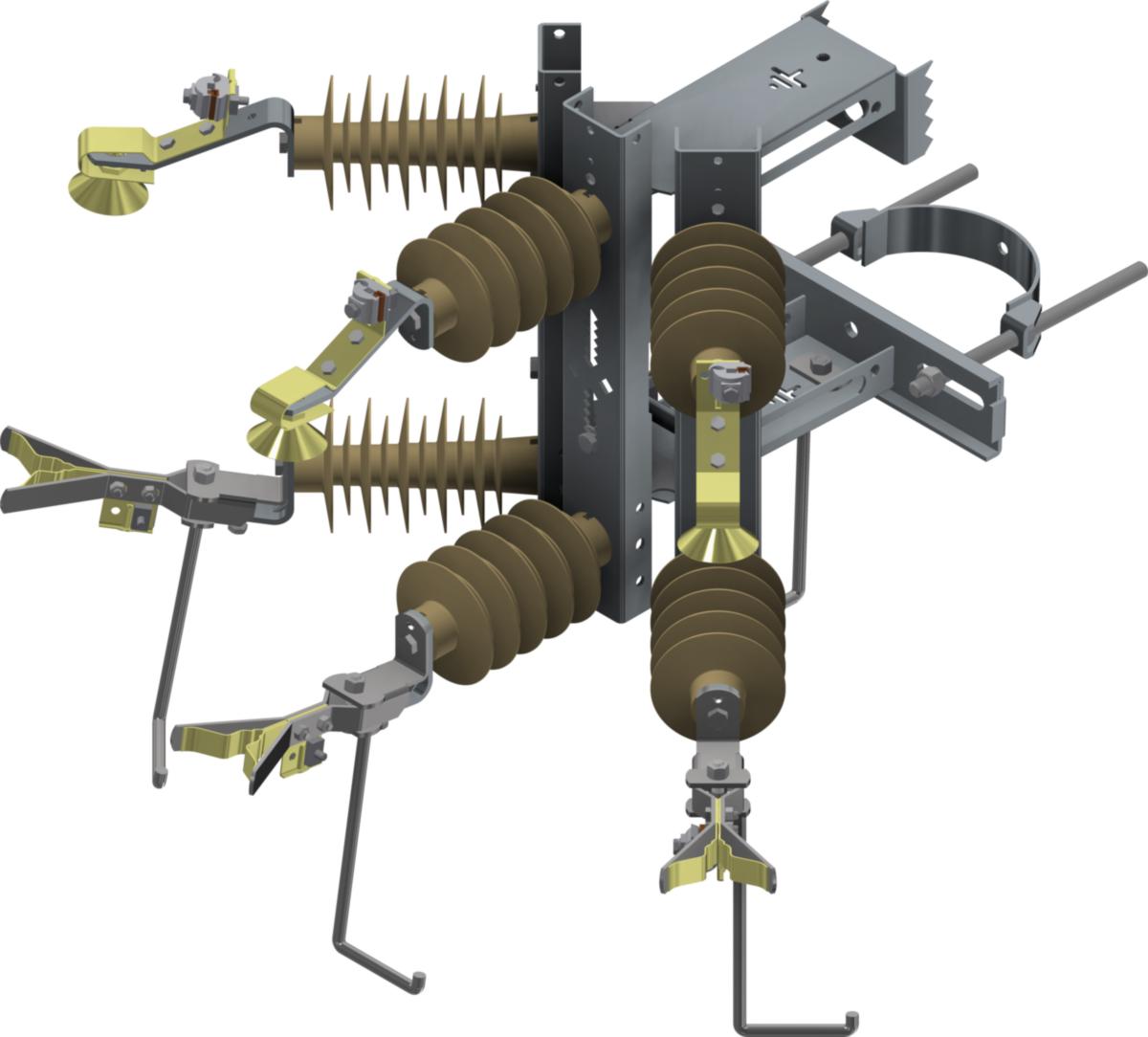

Fuse device L33/SKS
STATION DEVICE 3-PHASE 3-POL L33G-10/SKS
Article number:
0635680
to see price and stock
SKS fuse device is made up of a standard fuse device L33G in a foldable compact design. The device is ready to be mounted on a post; post bracket and fastenings are included. Domes pre-installed with the necessary mounting components, earthing rods and attachment points for surge arresters. Connection clamps included for Al 16-99 mm² and Cu 6-35 mm².
The device can be equipped with spark gaps, fixed and rod-operated surge arresters.
The devices are delivered without fuse cartridges and fuses.
The device can be equipped with spark gaps, fixed and rod-operated surge arresters.
The devices are delivered without fuse cartridges and fuses.
- Article number: 0635680
- Ean no: 7350113880994
- Material class QB361B
Technical data
- Type: L33G-10/SKS
- Nominal voltage: 12 kV
- Nominal current: 80 A
- Disconnecting method: Air insulated
- Type of disconnector: Other
- With fuse: Yes
- Remote operation: No
- Number of poles: 3-pole
- Preassembled: Yes
- Insulating material: Epoxy
