AhlsellProductsElectricMains power supply equipment 06-0906 Mains power supply equipmentFuse devicesFuse devices Gevea
Gevea
Fuse device L33G UF
FUSE DEVICE L33G-10/UF
Article number: Suppl. article no:
0635582
L33G-10/UF
to see price and stock

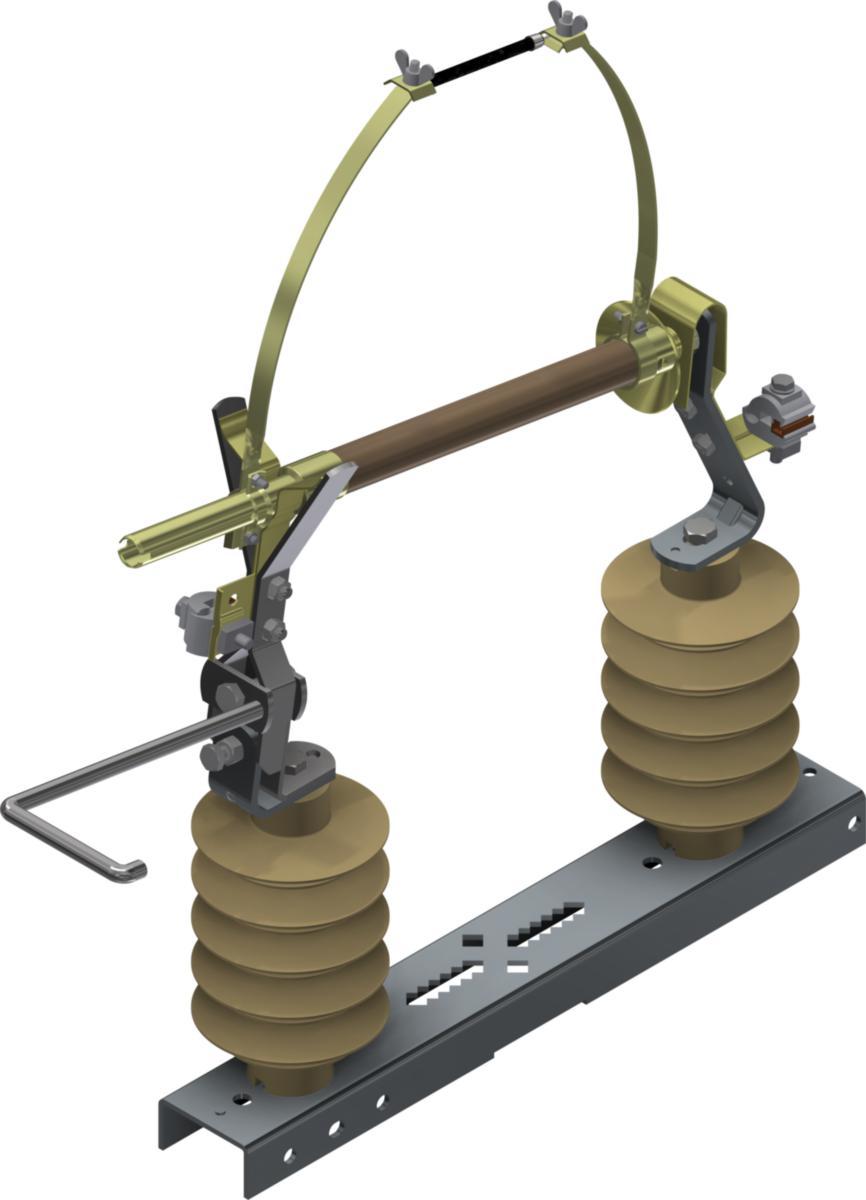

Fuse device L33 G, with cartridge tubes and ejector springs.
Earthing pin, fasteners and connection terminals Al 16-99 mm², Cu 6-35 mm².
Earthing pin, fasteners and connection terminals Al 16-99 mm², Cu 6-35 mm².
- Article number: 0635582
- Suppl. article no: L33G-10/UF
- Ean no: 7350113880581
- Material class QB361A
Technical data
- Packagin Size: 1 ST/10 ST
- Type: L 33G-10/UF
- Nominal voltage: 12 kV
- Nominal current: 80 A
- Disconnecting method: Air insulated
- Type of disconnector: Other
- With fuse: Yes
- Remote operation: No
- Number of poles: 1-pole
- Preassembled: Yes
- Insulating material: Epoxy
