Branch terminal SM - PARALLEL GROOVE CONNECTOR SM4.21

Ensto

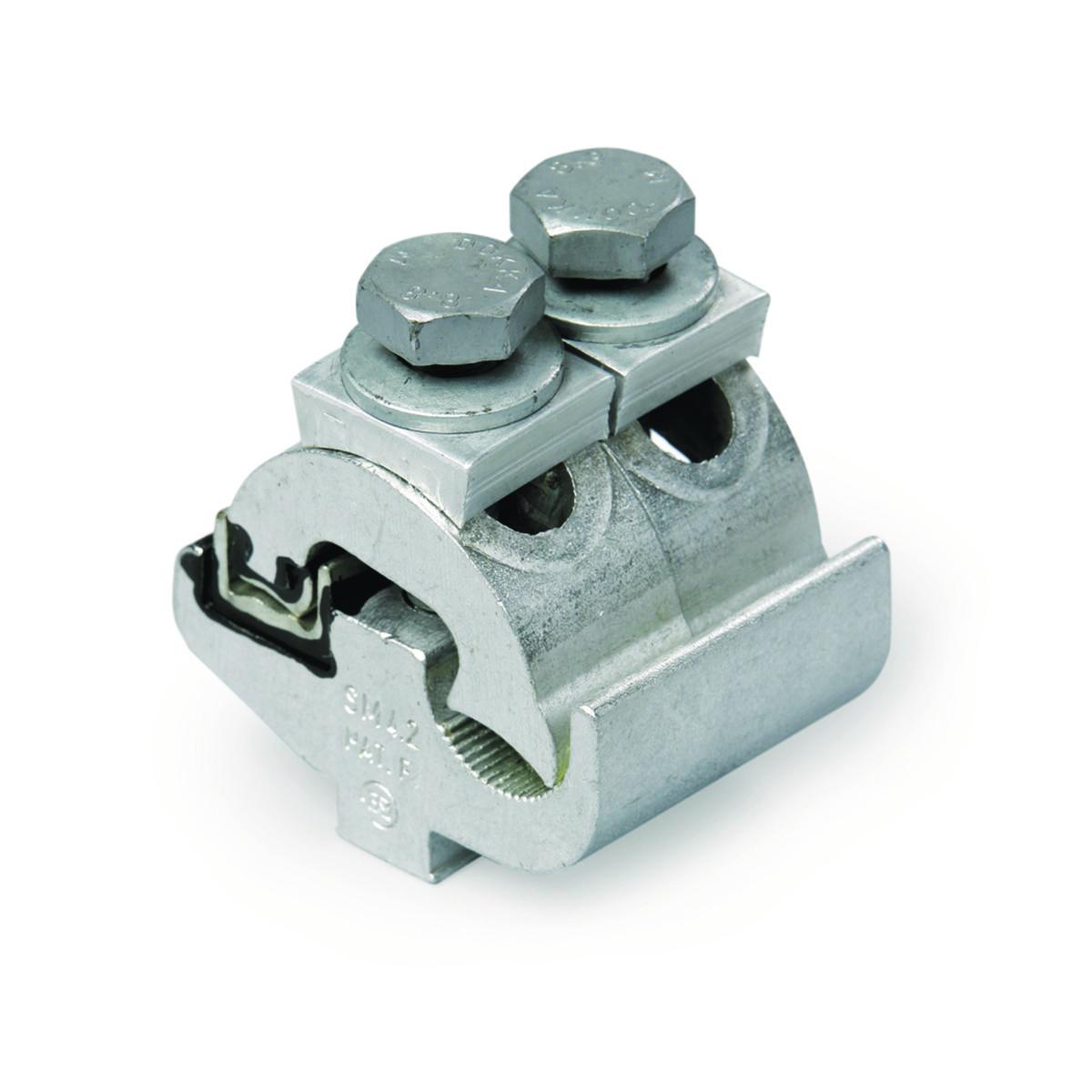

Branch terminal SM

PARALLEL GROOVE CONNECTOR SM4.21

Article number:

0650161

Suppl. article no:

SM4.21

‌
‌
‌

‌
‌

to see price and stock

For Al-Cu branching. The clamp is factory-lubricated and packed in plastic bag.

Article number:
0650161
Copy to clipboard
Suppl. article no:
SM4.21
Copy to clipboard
Ean no:
6418677403965
Copy to clipboard
Material class
QB410A
Copy to clipboard

Technical data

Packagin Size: 1 ST/25 ST/500 ST/1750 ST
Type: SM 4.21
Nominal cross section main conductor, SE: 50-240 mm²
Nominal cross section main conductor, SM: 50-240 mm²
Nominal cross section branch conductor, SE/RE: 10-95 mm²
Nominal cross section branch conductor, SM/RM: 10-95 mm²
Material main conductor: Aluminium
Material branch conductor: Copper
Terminal insulated: No
Clamping channel opening main conductor: Both sides open
Clamping channel opening branch conductor: Both sides open
Surface protection: Tinned
Type of connection: Screwed connection
REACH Date: 2021-12-10
Main conductor: AL 50-240
Information: Bolt diameter: 2xM10
With bolt: 2xM10
Branch: Cu 10-95
Cover: SP 16
REACH Information obligation: No
