Lightning rod HVI light plus - Conductor HVI light plus
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/44/18/ProductImage71824418.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/44/20/ProductImage71824420.jpg
Dehn

Lightning rod HVI light plus

Conductor HVI light plus
Article number:
0681984
Suppl. article no:
819609





 to see price and stock

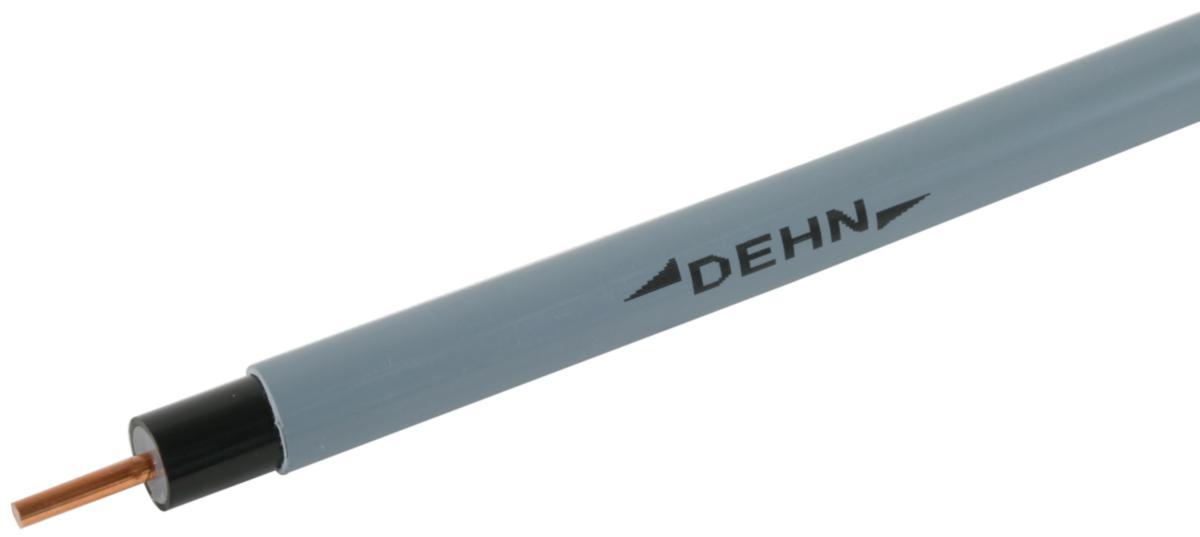

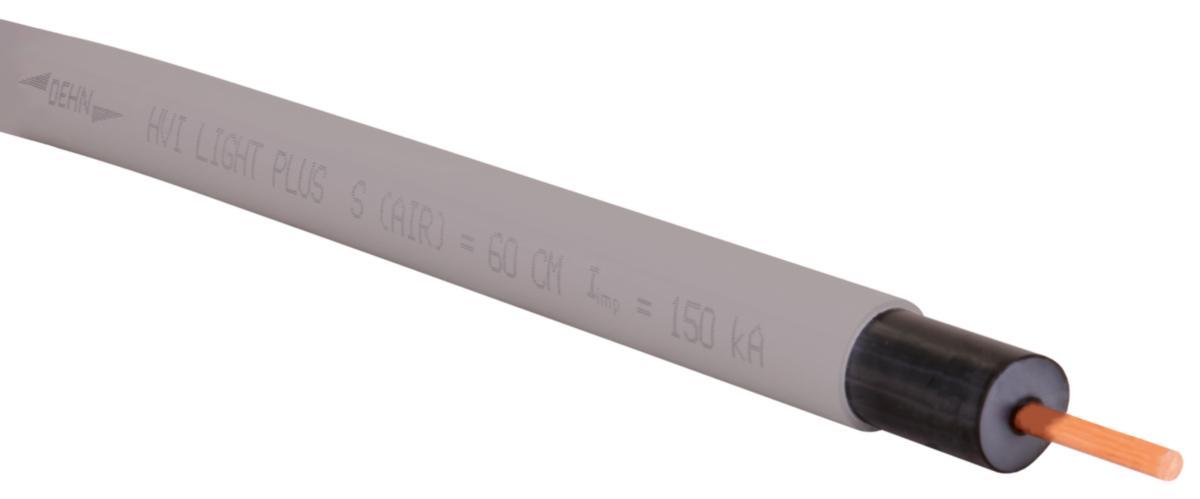

HVI light plus is a high-voltage resistant, insulated conductor that is used to maintain the separation distance from electrically conductive parts to prevent dangerous flashovers between the external lightning protection and metallic installations on the roof that have a conductive connection to the internal potential equalization system, for example solar cell systems and ventilation hoods, etc. But also to prevent dangerous flashovers between the external lightning protection against conductive parts such as electrical installations, pipelines, etc. ** Purchased by the meter, however, minimum 6 meters maximum 70 meters
  • Article number:
    0681984
  • Suppl. article no:
    819609
  • Ean no:
    4013364481794
  • Material class
    QQ7080
Technical data
  • Packagin Size: 1 M/1 M
  • Diameter conductor: 21 mm
  • Conductor cross section: 16 mm²
  • Conductor category: Class 1 = solid
  • Conductor material: Copper
  • Surface protection: Other
  • Material quality conductor: Other
  • Sheathing material: Crosslinked polyethylene (XLPE)
  • Characteristic conductor material: Other
  • Colour: Grey
  • Material insulation: Other
  • Max. equivalent separation distance s (in air): 0.6 m
  • Max. equivalent separation distance s (solid building materials): 0.3 m
  • High-voltage-proof insulated model: Yes
  • Suitable for EX-applications: Yes
  • Weight: 425 kg/100m
  • Outer diameter incl. sheath/cover: 21 mm
  • Sheathing material halogen free: Yes
  • REACH Date: 2023-01-17
  • REACH Information obligation: No
