Elrond

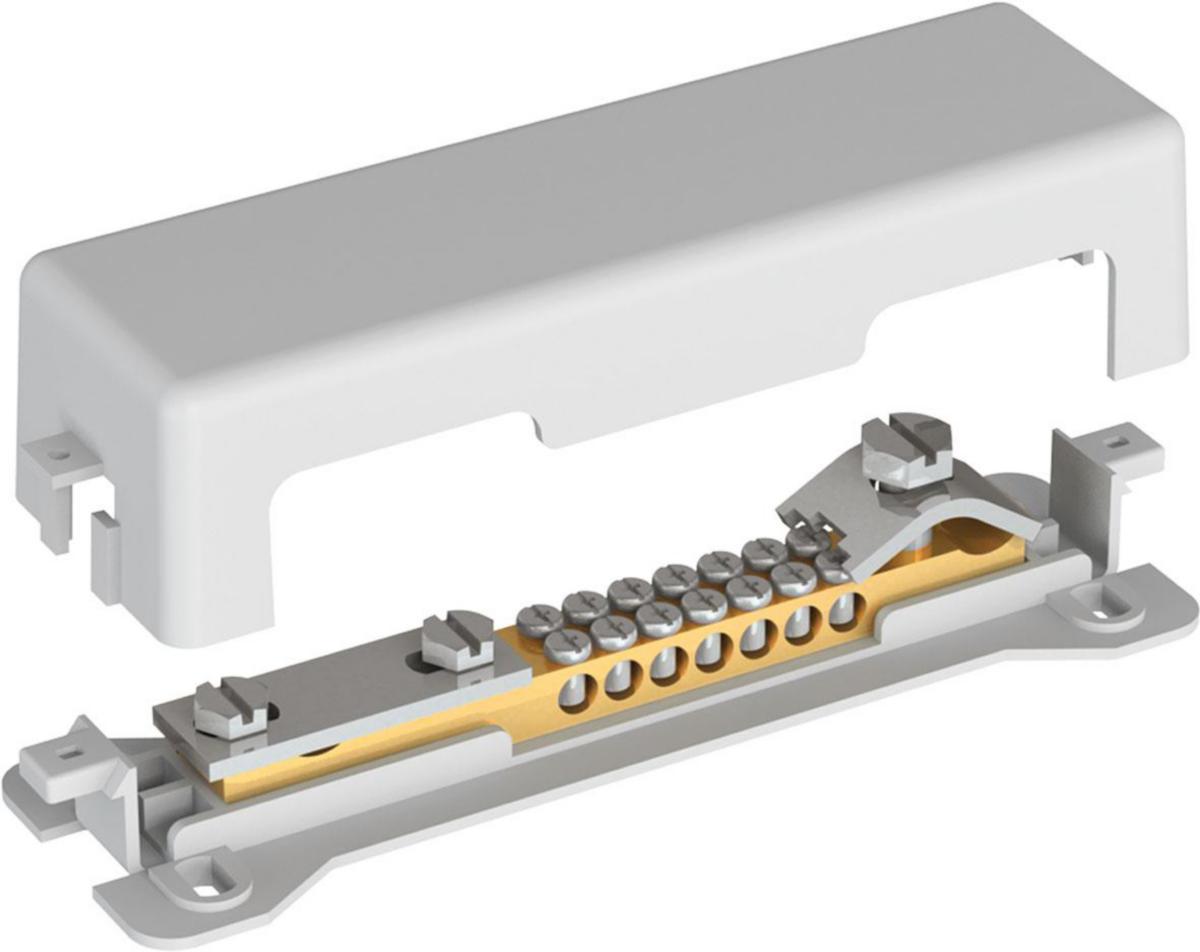

Potential rail POT1
EQUIP. BONDING BAR W.COVER POT1
Article number: Suppl. article no:
0683667
POT1
to see price and stock
A potential equalization rail is used to collect all earthed conductors, including metal pipes from VA, etc. to avoid large potential differences that may otherwise occur. POT1 has several different connection options, which makes it practical in almost all applications.
- Article number: 0683667
- Suppl. article no: POT1
- Material class QQ660B
Technical data
- Packagin Size: 1 ST/20 ST/100 ST
- Type: POT1
- Model: With covering cap
- Insulator: No
- Number of connections round conductor total: 8
- Width: 50 mm
- Height: 42 mm
- Length: 182 mm
- Material of contact rail: Brass
- Number of connections flat conductor 30 mm: 1
- Number of connections round conductor 10 mm: 1
- Number of connections round conductor 8 mm: 1
- Number of connections round conductor 8-10 mm: 1
- Material of clamp: Brass
- Construction type: Surface mounting fix
- Number of connections conductor to 25 mm² fixed: 7
- REACH Date: 2023-01-01
- Information: Connection: 7x25 mm²
1x30x3 mm²
1x10 mm²
1x8 mm² - REACH Information obligation: No
