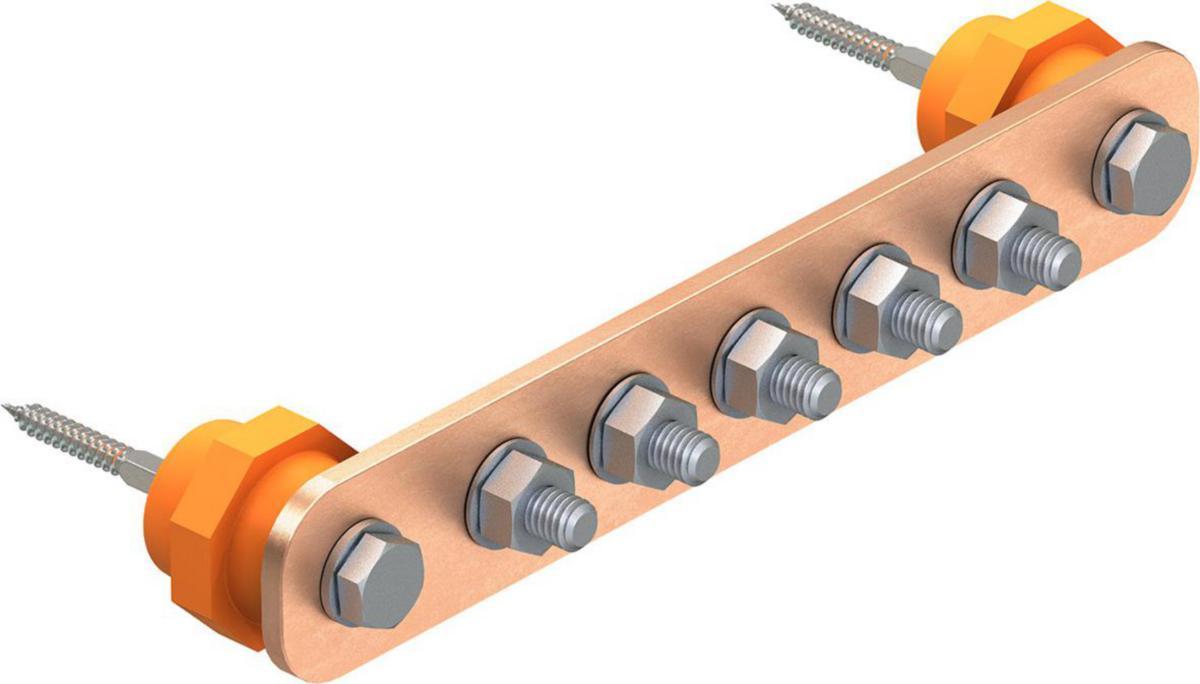

Potential equalising rail, BigBar
POTENTIAL EQUALISATION 5015 84 2
Article number: Suppl. article no:
0681480
5015842
to see price and stock
For industrial use. Equipped with insulated spacers for wall mounting. M10 bolts and nuts for connection of potential equalisation wires. Copper or stainless steel design with 5 or alternatively 10 connections. Stainless steel covers are available as accessories and there is a locking washer for connection of flat band.
- Article number: 0681480
- Suppl. article no: 5015842
- Ean no: 4012195002260
- Material class QQ6500
Technical data
- Packagin Size: 1 ST/12 ST
- Type: 5015 84 2
- Design: Copper, length 408.5 mm 10 connections
- Model: Only clamp
- Insulator: Yes
- Number of connections round conductor total: 10
- Width: 40 mm
- Height: 5 mm
- Length: 408.5 mm
- Material of contact rail: Copper
- Number of connections flat conductor 30 mm: 0
- Number of connections flat conductor 40 mm: 0
- Number of connections round conductor 10 mm: 0
- Number of connections round conductor 8 mm: 0
- Number of connections round conductor 8-10 mm: 0
- Material of clamp: Copper
- Surface of the clamp: Untreated
- Construction type: Surface mounting fix
- Surface of the contact rail: Untreated
- Number of connections conductor to 16 mm² fixed: 0
- Number of connections conductor to 25 mm² fixed: 0
- Number of connections conductor to 6 mm² fixed: 0
- Number of connections conductor to 95 mm² fixed: 0
- REACH Date: 2021-08-12
- Information: Connection: 10 connections
- Article number supplier: 5015 842
- REACH Information obligation: No
