OBO Bettermann

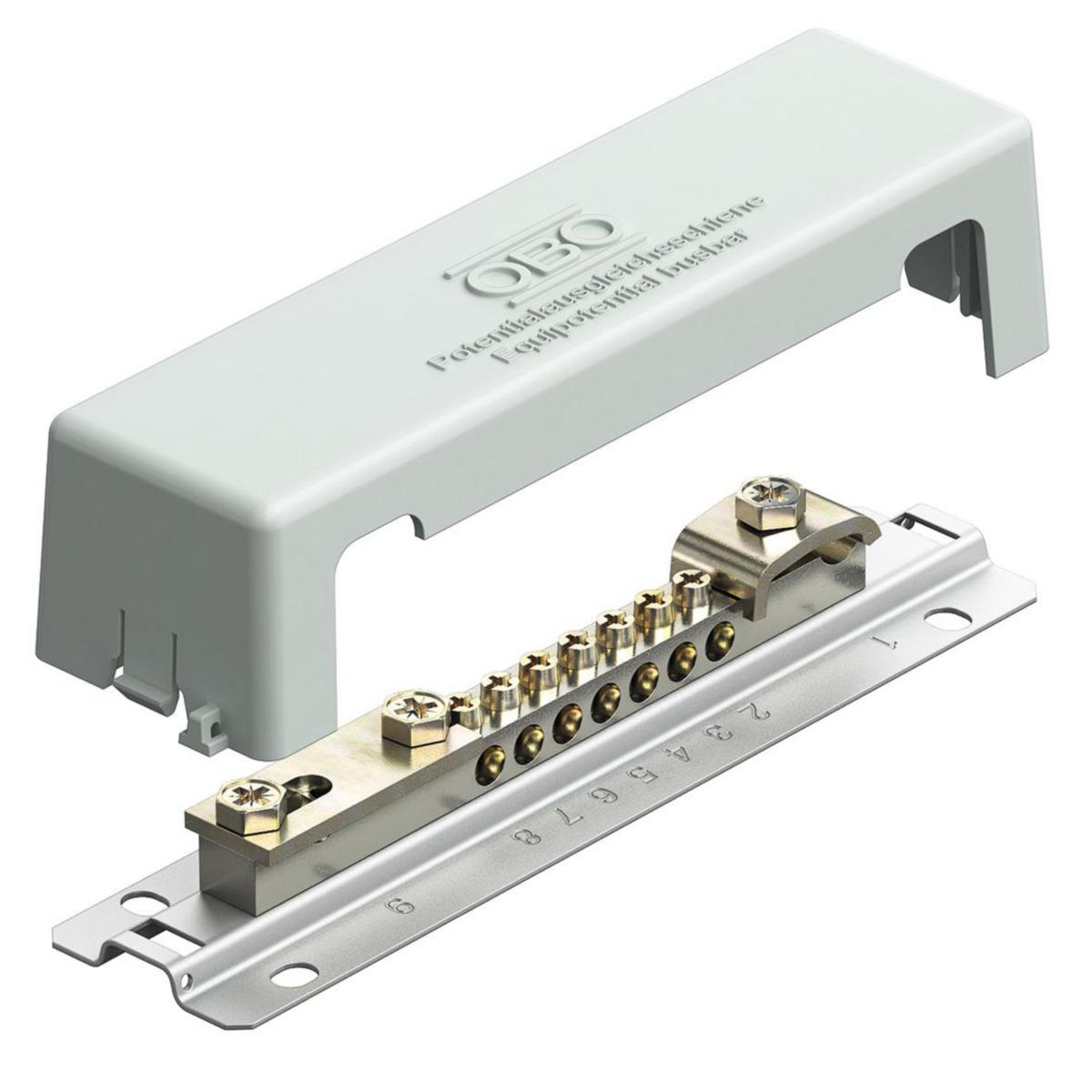

Potential equalising rail with metal foot
EQUIPOTENTIAL BONDING RAIL 5015081
Article number: Suppl. article no:
0681445
5015081
to see price and stock
Potential equalization rail with metal base for equipotential bonding according to SS EN 4364000 chap. 410 and lightning protection equipotential bonding according to SS EN 62305-3 Bbl5
- Article number: 0681445
- Suppl. article no: 5015081
- Ean no: 4012195378310
- Material class QQ6500
Technical data
- Packagin Size: 1 ST/50 ST
- Type: metal footplate
- Design: 1x8-10 mm², 7xmax 25 mm², 1xband 4x30 mm or wire 8-10 mm². Bottom part galvanised
- Model: With covering cap
- Insulator: No
- Number of connections round conductor total: 1
- Width: 52 mm
- Height: 43 mm
- Length: 188 m
- Material of contact rail: Brass
- Number of connections flat conductor 30 mm: 1
- Number of connections flat conductor 40 mm: 0
- Number of connections round conductor 10 mm: 0
- Number of connections round conductor 8 mm: 0
- Number of connections round conductor 8-10 mm: 1
- Material of clamp: Steel
- Surface of the clamp: Galvanic/electrolytic zinc plated
- Construction type: Surface mounting fix
- Surface of the contact rail: Nickel-plated
- Number of connections conductor to 16 mm² fixed: 0
- Number of connections conductor to 25 mm² fixed: 7
- Number of connections conductor to 6 mm² fixed: 0
- Number of connections conductor to 95 mm² fixed: 0
