Melbye

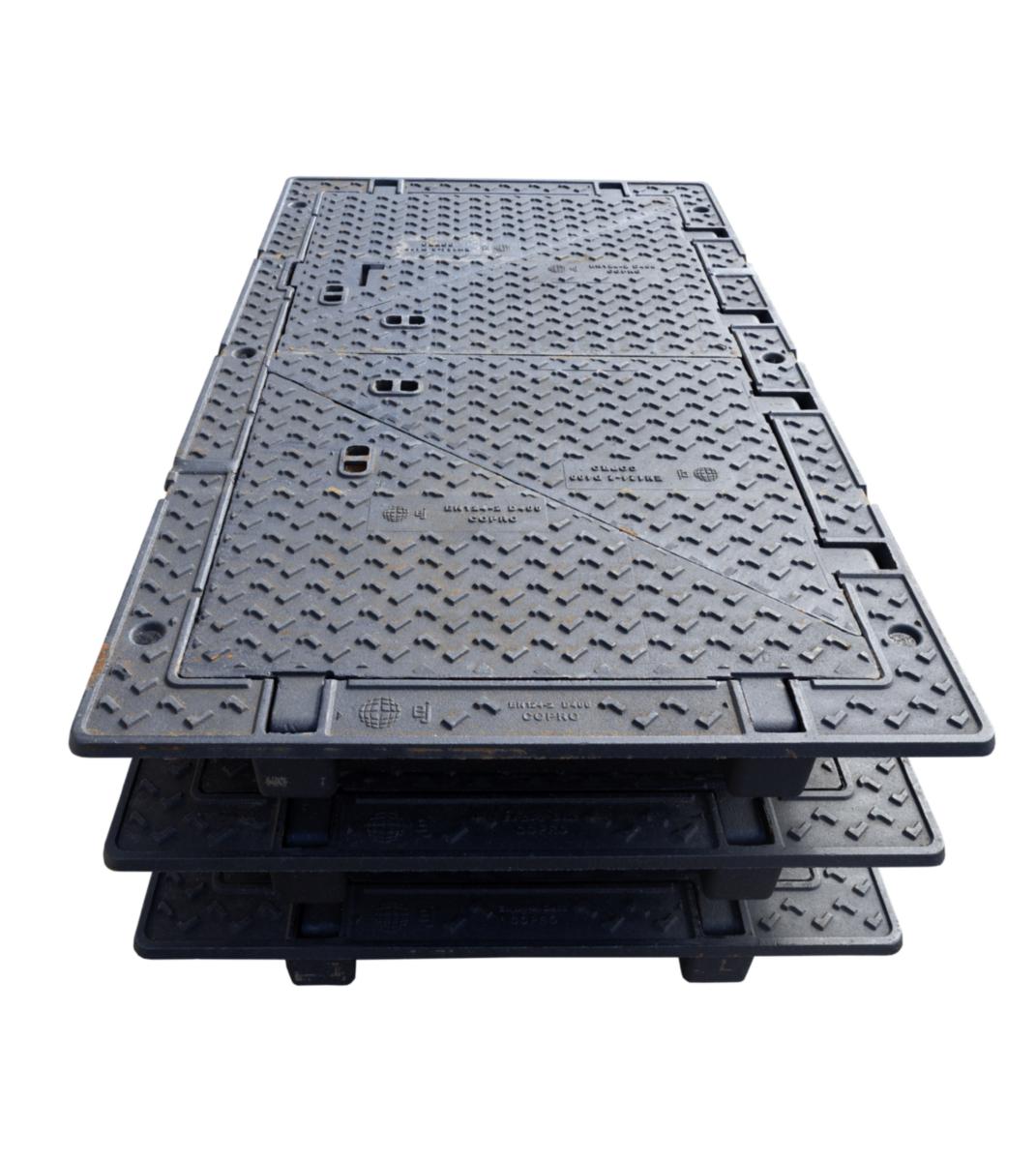

Cover for cable chamber FF12267
Ductile cover D400 GOTHNET
Article number: Suppl. article no:
0665429
0665429
to see price and stock
Choose the right kind of cover that the installation requires - B125or D400. The B125 cover to FF12267 is manufactured in cast iron and is suitable for installation in parking areas and areas with slow moving vehicles. The B125 cover is lockable with a Penta Head Lock and has a 70mm frame. The D400 cover is manufactured in cast iron and is suitable for installations with high traffic. The come in four parts with a 140mm frame and lockable. Note that different installation instructions are suitable for D400 applications. With a D400-installation the three highest sections should be intact. Therefore the well should be at least 5 sections deep in such an installation.
- Article number: 0665429
- Suppl. article no: 0665429
- Ean no: 7332811385353
- Material class QB2400
Technical data
- Design: FF12267 cast iron lid D400 GOTHNET
- Product series: FF12267
- Interlockable: Yes
- Width: 885 mm
- Height: 150 mm
- Material: Cast iron
- Length: 1450 mm
- With grid: No
- With cover: No
- Material cover: Other
- Coated: No
- Load class according to EN 1433: D-400
- Cover with hinge: No
- Cover weight: 256 kg
- Material quality: Other
- Vented cover: No
- REACH Date: 2024-09-09
- REACH Information obligation: No
