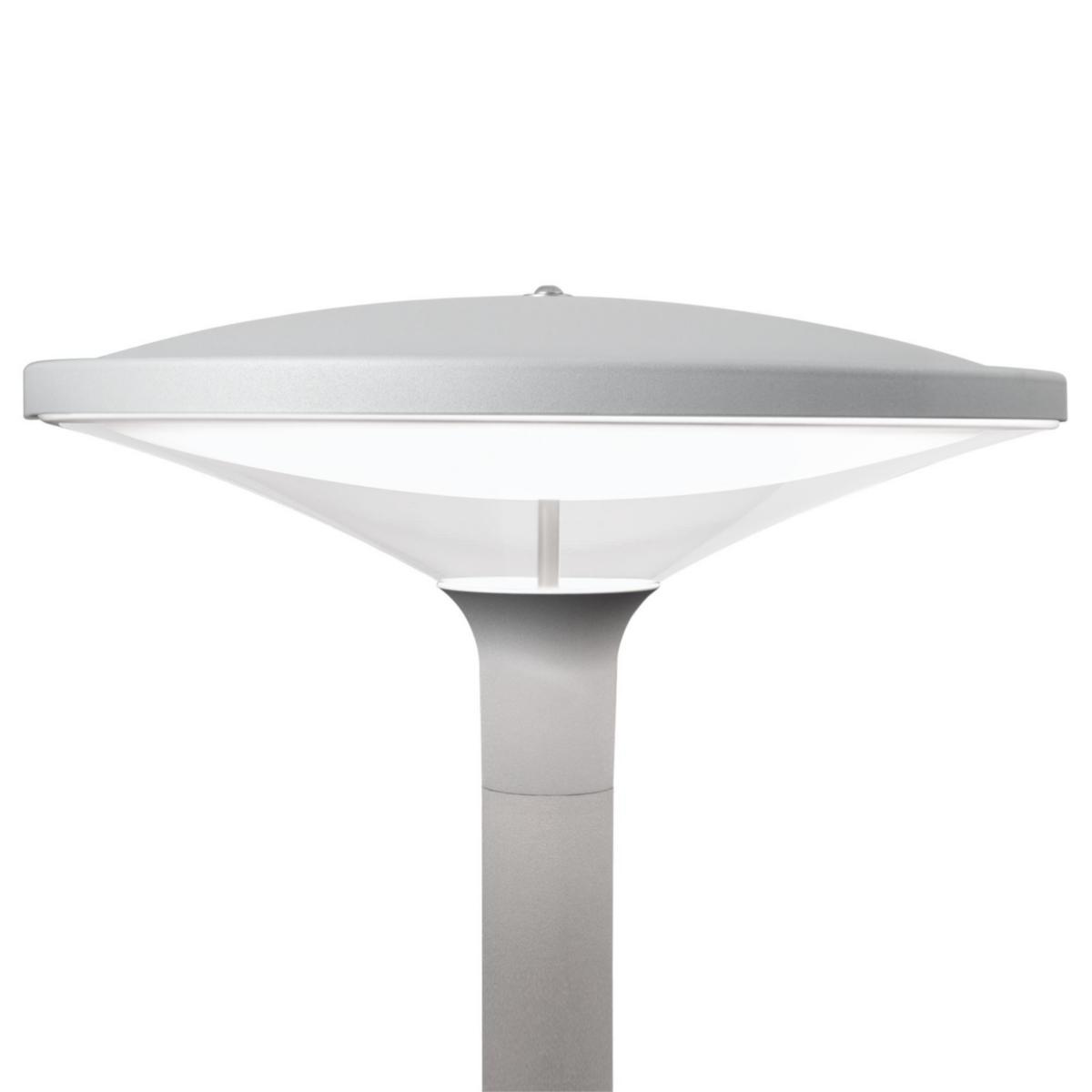

Post fitting Place LED, SG-Armaturen
ARM PLACE 2510LM 4K DIM GREY 2510LM 4K DIM GREY
Article number: Suppl. article no:
7748259
8246088228
to see price and stock

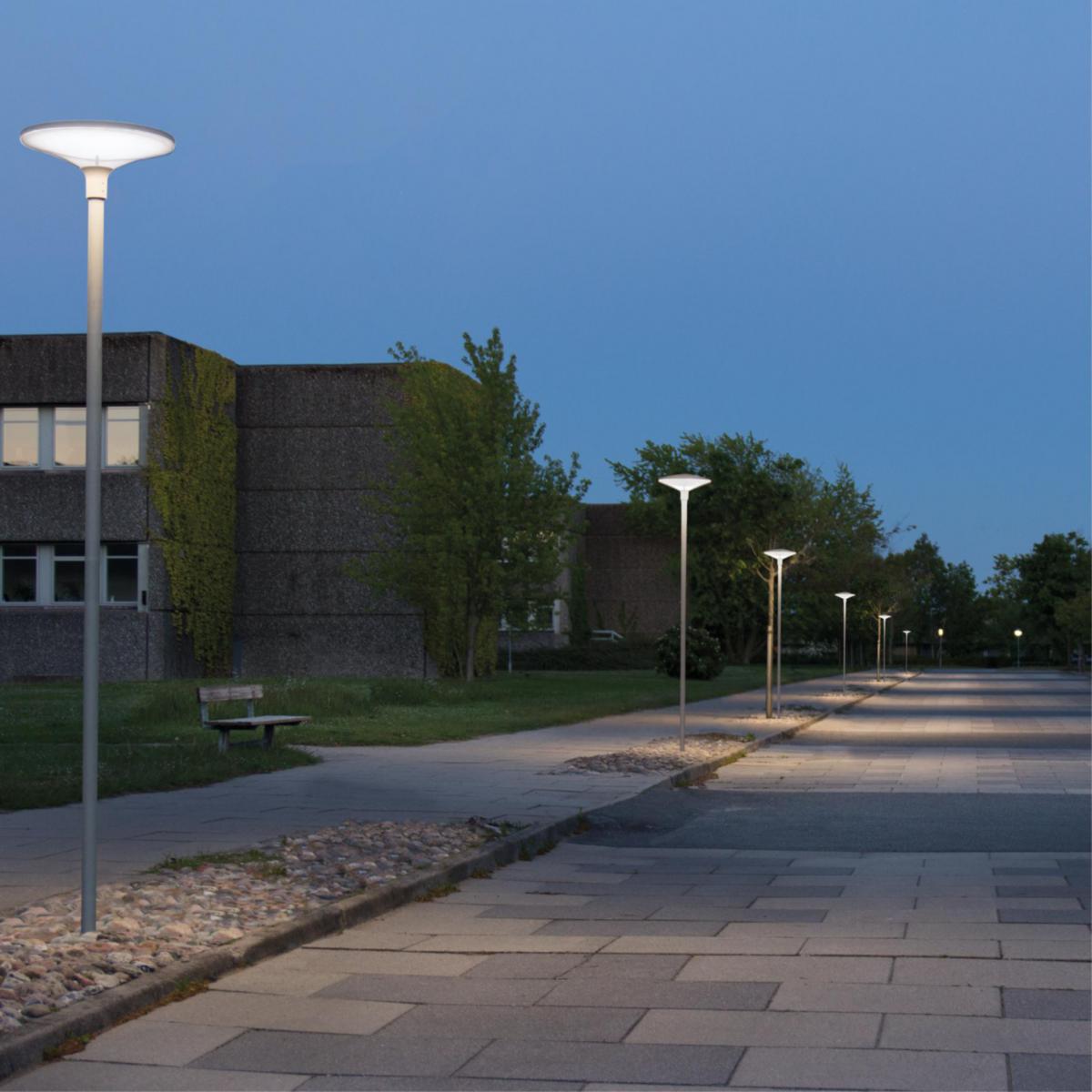

Place is a post luminaire in a unique and aesthetic design and combines visual comfort with energy efficiency and is suitable for a variety of urban environments such as. parks and parking lots. Optimal solution to replace old mercury lamps. For mounting on post top Ø 60 mm. Frame and luminaire roof of die-cast aluminum. Direct symmetrical optics with unpolished vacuum-formed polycarbonate cup. Place (DIM) with night setback dim at 21-00 to 70% light, 00-04 to 50% light, 04-06 to 70% light. Other times 100% light.
- Article number: 7748259
- Suppl. article no: 8246088228
- Ean no: 5703821168090
- Material class QU166A
Technical data
- Max. system power: 28 W
- Rated luminous flux according to IEC 62722-2- 1: 2510 lm
- Colour temperature: 4000 K
- Rated life time L90/B10 at 25 °C: 50000 h
- Housing colour: Grey
- Dimming DALI: No
- Dimmable: Yes
- Lamp type: LED not exchangeable
- Material cover: Plastic, opal
- Degree of protection (IP): IP65
- Protection class according to IEC 61140: II
- Impact strength: IK10
- Housing material: Aluminium
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Adjustable optics: No
- Lamp holder: Other
- Suitable for number of light sources: 1
- With light source: Yes
- Mounting method: Post top mounting
- Nominal voltage: 220-240 V
- Suitable for spigot size: 60 mm
- Number of poles: 2
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Diameter: 600 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: Yes
- Remote control: None
- Dimming phase cut-on (leading edge): No
- Colour rendering index CRI: 80-89
- Height/depth: 291 mm
- Cable length: 5 m
- Constant light output (CLO): No
- Conductor cross section: 1 mm²
- Colour of light: White
- Luminaire efficacy: 90 lm/W
- With connection cable: Yes
- With light regulation program control: No
- With radio control: No
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Surface protection: Powder coating
- Connection type: Other
- REACH Date: 2024-09-20
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 158,4062 kgCO2e/ST
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
- Dimming GPRS: No
