Downlight LED Optic Deep, Hide-a-Lite - DOWNL OPTIC DEEP WHITE TUNE
/external-assets/JPEGlarge800_800/75/06/ProductImage35437506.jpg
/external-assets/JPEGlarge800_800/38/35/25543835.jpg
/external-assets/JPEGlarge800_800/75/07/ProductImage35437507.jpg
Hide-a-lite

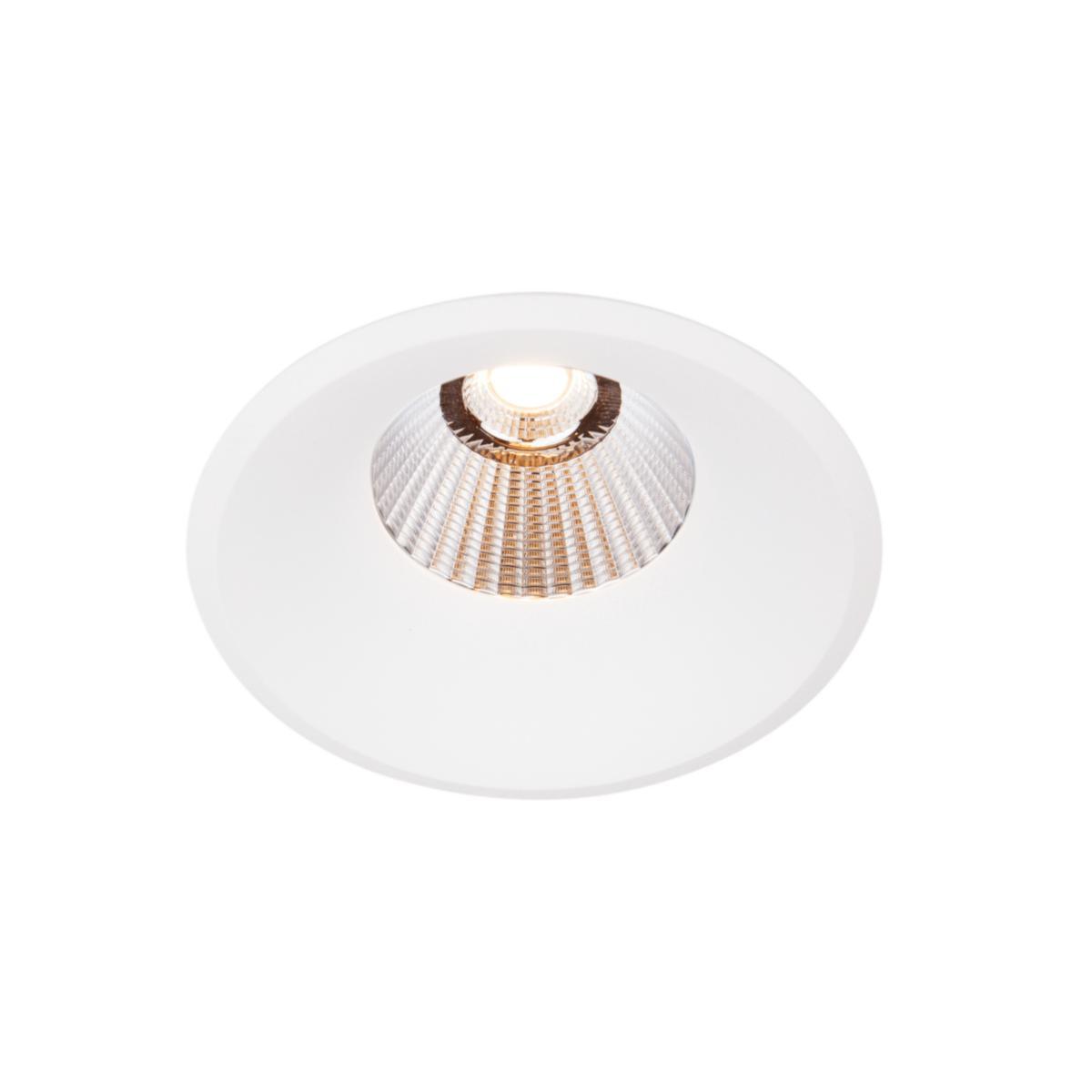

Downlight LED Optic Deep, Hide-a-Lite

DOWNL OPTIC DEEP WHITE TUNE
Article number:
7464984
Suppl. article no:
7464984
‌
‌
‌
‌
‌
 to see price and stock
Byggvarubedomning: Accepteras

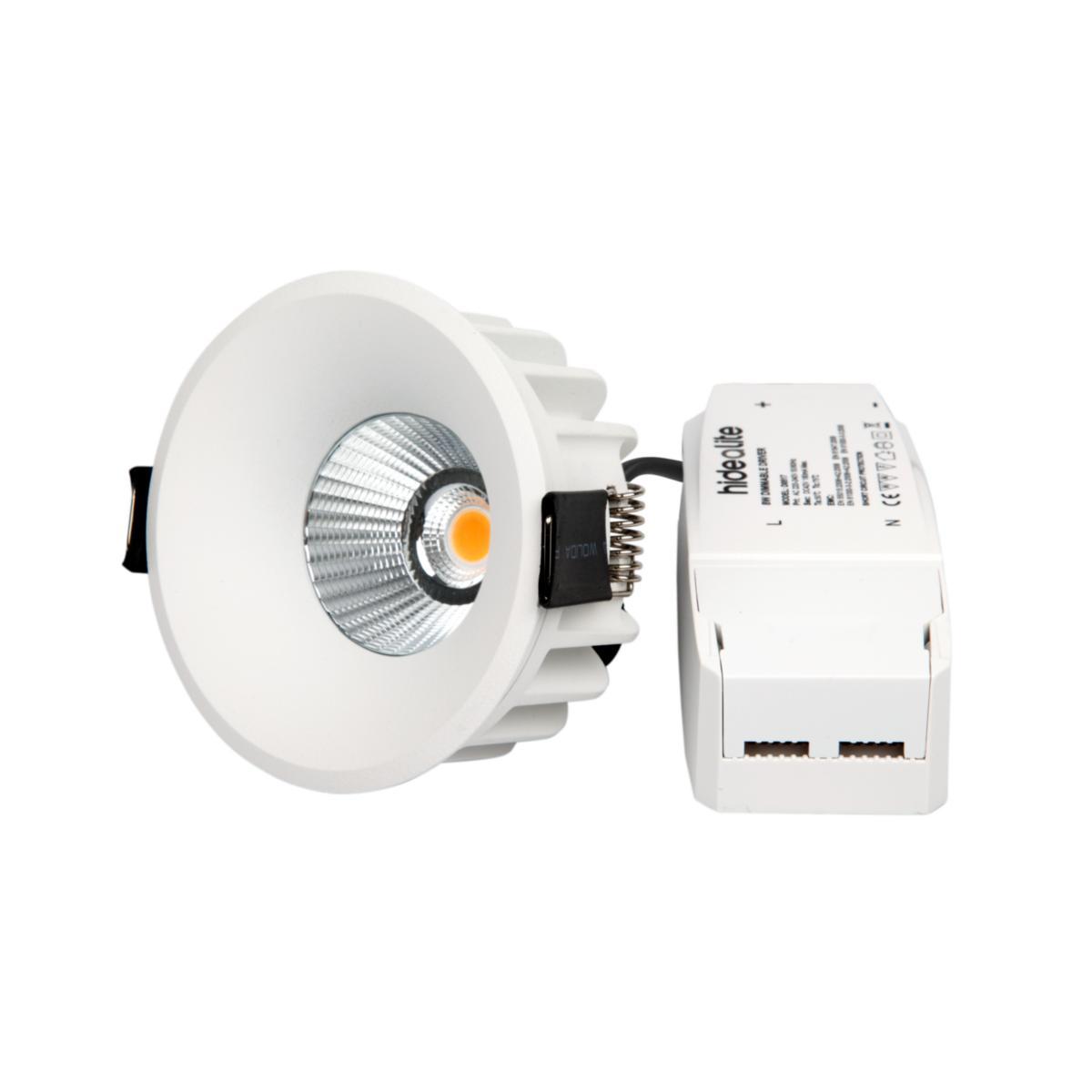

Effective LED downlight with recessed light source and thin edge for discreet ceiling placement, with IP44 all around. Modern LED and reflector technology gives high luminous efficacy, a distinct light image and glare-free light with very good colour display. Available in two colour temperatures as well as Tune with dimmable colour temperature (2000-2700K). Easily installed and low mounting fitting complete with phase dimmable actuator, quick connection blocks for extended connectivity and screw-free tension relief for simple connection. Dimmable with the most common dimmers on the market
  • Article number:
    7464984
  • Suppl. article no:
    7464984
  • Ean no:
    7392971129143
  • Material class
    QT432A
Technical data
  • Packagin Size: 1 PCS/30 PCS
  • Max. system power: 7.5 W
  • Rated luminous flux according to IEC 62722-2- 1: 430 lm
  • Colour temperature: 2000-2700 K
  • Housing colour: White
  • Surface brushed: No
  • Beam angle: 21-40° - Medium beam
  • Dimming DALI: No
  • Outer diameter: 90 mm
  • Built-in height: 47 mm
  • Height/depth: 50 mm
  • Lamp type: LED not exchangeable
  • Adjustability: Not adjustable
  • With light source: Yes
  • Colour of light: White
  • With control gear: Yes
  • Type of control gear: LED operating device current-controlled
  • Luminous intensity: 690 cd
  • Reflector: High-gloss
  • Housing material: Aluminium
  • Suitable for workplace according to EN 12464-1: No
  • Number of poles: 3
  • Dimming phase cut-off (trailing edge): Yes
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Dimming with push-button: No
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
  • Photobiological safety according to EN 62471: Other
  • Dimming phase cut-on (leading edge): Yes
  • Glow-wire test according to IEC 60695-2-11: None
  • Cover material: Glass, transparent
  • Degree of protection (IP): IP44
  • Dimmable: Yes
  • Lamp holder: None
  • Light distribution: Symmetric
  • Protection class according to IEC 61140: II
  • Light distributor: Reflector
  • Light outlet: Direct
  • Luminaire efficacy: 57 lm/W
  • Suitable for number of light sources: 1
  • Colour rendering index CRI: 90-100
  • Suitable for built-in mounting: Yes
  • Suitable for clamp-mounting: No
  • Suitable for low voltage cable system: No
  • Suitable for pedestal/floor mounting: No
  • Suitable for suspended mounting: No
  • Suitable for light-track mounting: No
  • Suitable for traverse mounting: No
  • Suitable for surface mounting: No
  • With light sensor: No
  • With movement sensor: No
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Rated lifetime L70/B50 at 25 °C: 50000 h
  • Suitable for ceiling mounting: Yes
  • Impact strength: Other
  • Dimming Touch and Dim: No
  • Type of wiring: Suitable for loop-through wiring
  • Connectable conductor cross section: 0.5-2.5 mm²
  • Surface protection: Powder coating
  • Colour consistency (McAdam ellipse): SDCM3
  • Covering of the luminaire with thermally insulating material possible: No
  • Connection type: Push-in clamp
  • Spreading angle: 36°
  • REACH Date: 2022-06-01
  • Tiltable: No
  • REACH Information obligation: No
