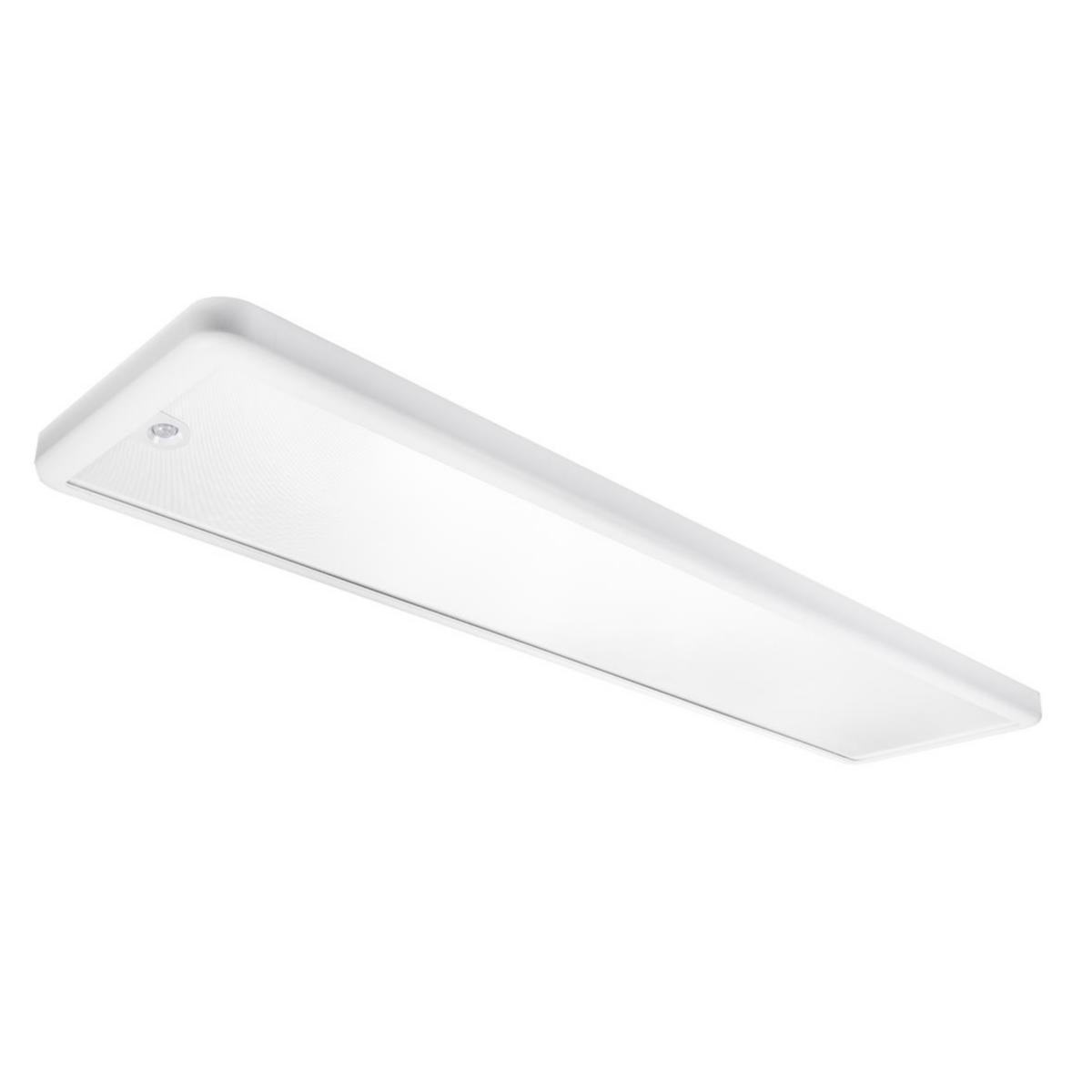

Interior luminaire Sense Surface
Sense Surf 300x1200 3K PIR
Article number: Suppl. article no:
7019766
212346
to see price and stock
Sense Surface is an elegant, thin surface-mounted luminaire that is illuminated by LED side lights. Easy tool-free installation with quick connector between bracket and front held in place by strong magnets. An innovative mechanism allows you to choose whether the front should be completely in line with the roof with hidden cables or float just below with visible cables.
- Article number: 7019766
- Suppl. article no: 212346
- Ean no: 7021982123467
- Material class QT0300
Technical data
- Packagin Size: 1 PCS/2 PCS
- Width: 302 mm
- Height/depth: 45 mm
- Degree of protection (IP): IP20
- Colour temperature: 3000 K
- Housing colour: White
- Length: 1202 mm
- With movement sensor: Yes
- Max. system power: 29 W
- Suitable for number of light sources: 1
- Suitable for lamp power: 29 W
- Suitable for emergency lighting: No
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- Material cover: Plastic, opal
- Degree of protection (NEMA): Other
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 25
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- Constant light output (CLO): No
- Colour consistency (McAdam ellipse): SDCM3
- Luminous flux adjustable: Positions
- Photobiological safety according to EN 62471: Other
- Surface protection housing: Lacquered
- Exchangeable control gear: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- REACH Date: 2024-08-23
- Nominal voltage: 220-240 V
- Rated luminous flux according to IEC 62722-2- 1: 3790 lm
- Luminaire efficacy: 131 lm/W
- Conductor cross section: 1 mm²
- Nominal current: 800-1050 mA
- GWP-tot (A1-A3): 140,0791 kgCO2e/ST
- Number of poles: 2
- Colour of light: White
- Impact strength: IK10
- Lamp type: LED not exchangeable
- Light outlet: Direct
- Beam angle: Open beam/diffuse
- REACH Information obligation: No
- Voltage type: AC
- Lamp holder: Other
- Connection type: Push-in clamp
- Light distribution: Symmetric
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Type of control gear: LED operating device current-controlled
- Housing material: Aluminium
- With light source: Yes
- Type of grid: None
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: II
- Light distributor: Other
- Dimmable: No
- With control gear: Yes
- Type of wiring: Suitable for loop-through wiring
