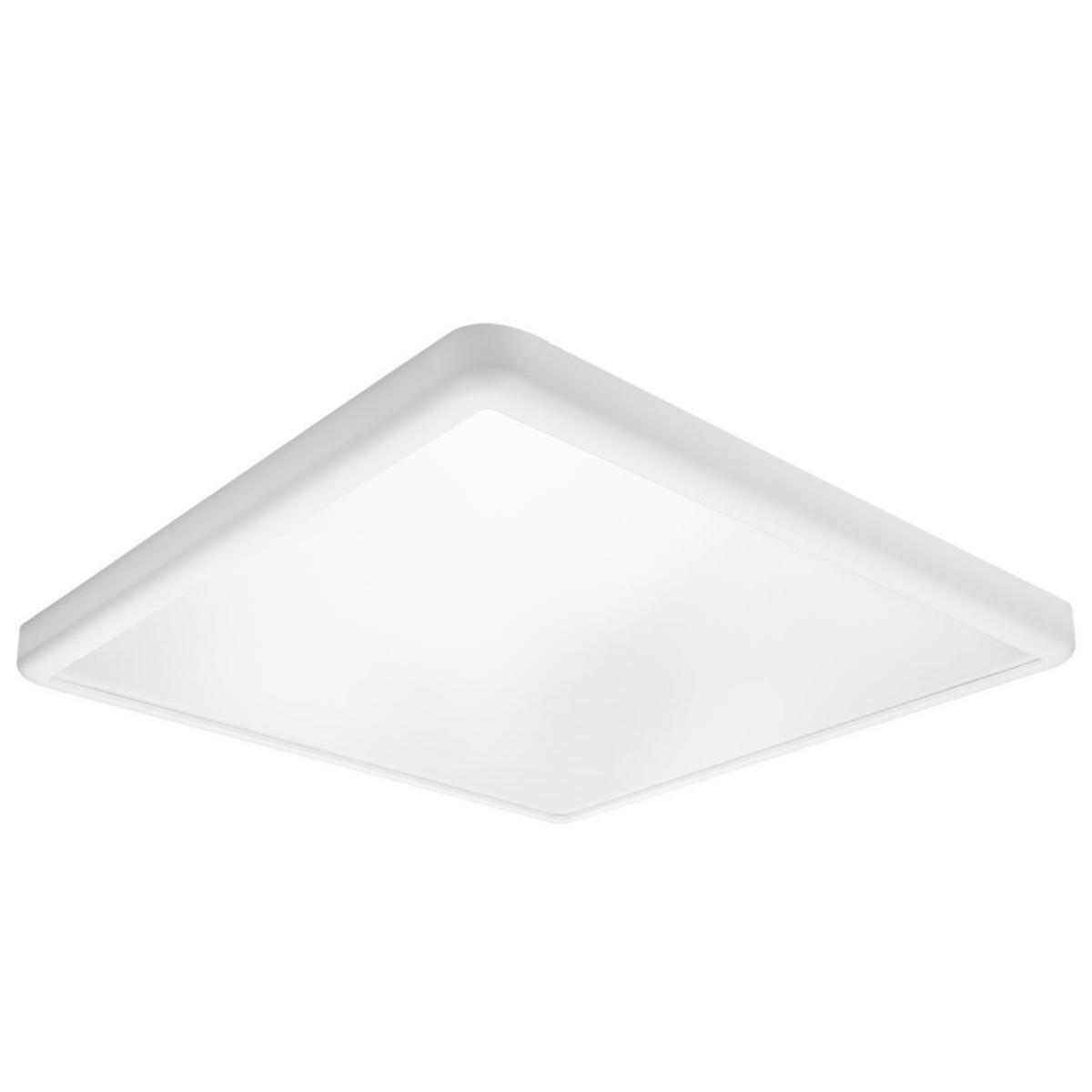

Interior luminaire Sense Surface
SENSE SURFACE 600X600 3K
Article number: Suppl. article no:
7018135
212330
to see price and stock
Sense Surface is an elegant, thin surface-mounted luminaire that is illuminated by LED side lights. Easy tool-free installation with quick connector between bracket and front held in place by strong magnets. An innovative mechanism allows you to choose whether the front should be completely in line with the roof with hidden cables or float just below with visible cables.
- Article number: 7018135
- Suppl. article no: 212330
- Ean no: 7021982123306
- Material class QT030A
Technical data
- Packagin Size: 1 ST/3 ST/15 ST/15 ST
- Width: 597 mm
- Height/depth: 45 mm
- Degree of protection (IP): IP20
- Colour temperature: 3000 K
- Housing colour: White
- Length: 597 mm
- With movement sensor: No
- Max. system power: 28 W
- With light sensor: No
- Suitable for number of light sources: 1
- Suitable for built-in mounting: No
- Suitable for lamp power: 28 W
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- Material cover: Plastic, opal
- Rated lifetime L70/B50 at 25 °C: 0 h
- Degree of protection (NEMA): Other
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 41
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 41
- IFTTT support available: No
- Constant light output (CLO): No
- Compatible with Google Assistant: No
- Compatible with Apple HomeKit: No
- Colour consistency (McAdam ellipse): SDCM3
- Photobiological safety according to EN 62471: Other
- Exchangeable control gear: No
- Operation by Bluetooth: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Luminous flux adjustable: No
- Emergency power supply integrated: No
- Surface protection housing: Lacquered
- Compatible with Amazon Alexa: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Conductor cross section: 1 mm²
- REACH Date: 2024-08-23
- Nominal voltage: 220-240 V
- Rated luminous flux according to IEC 62722-2- 1: 3640 lm
- Luminaire efficacy: 130 lm/W
- Number of poles: 2
- Covering of the luminaire with thermally insulating material possible: No
- Colour of light: White
- Beam angle: Open beam/diffuse
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Type of control gear: LED operating device current-controlled
- Dimming 1-10 V: No
- Dimming programmable: No
- Dimming 0-10 V: No
- Housing material: Aluminium
- Dimming RF: No
- Dimming phase cut-on (leading edge): No
- Dimming manufacturer's proprietary system: No
- Dimming LineSwitch: No
- Dimming phase cut-off (trailing edge): Yes
- With light source: Yes
- With air slots: No
- Dimming Zigbee: No
- Colour rendering index CRI: 80-89
- Dimming with push-button: No
- Dimming potentiometer (integrated): No
- Dimming Sine Wave Reduction: No
- Light distributor: Other
- With control gear: Yes
- Dimming DMX: No
- Type of wiring: Suitable for loop-through wiring
- Dimming DALI: No
- Dimming Touch and Dim: No
- Dimming GPRS: No
- Suitable for wall mounting: No
- Impact strength: IK10
- Lamp type: LED not exchangeable
- Suitable for workplace according to EN 12464-1: No
- Dimming mains voltage modulation: No
- Filament test according to IEC 60695-2-11: None
- Light outlet: Direct
- REACH Information obligation: No
- Voltage type: AC
- Lamp holder: Other
- Connection type: Push-in clamp
- Light distribution: Symmetric
- Dimming DALI-2: No
- Dimming DSI: No
- Type of grid: None
- Protection class according to IEC 61140: II
- Dimming depending on control gear: No
- Dimmable: Yes
