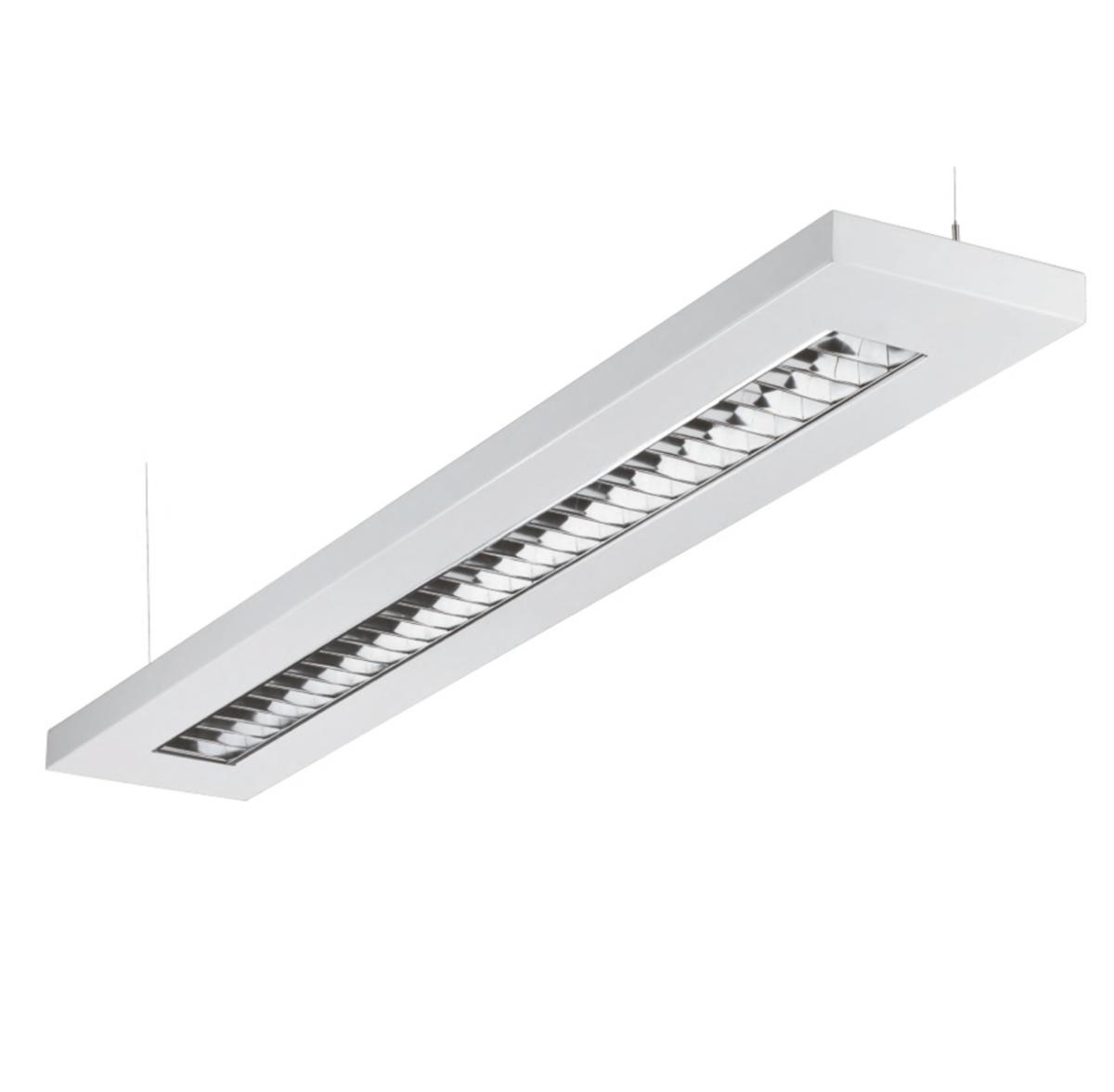

Interior luminaire DAG, Bergdahls
OFFICELIGHT DAG II-50-830-DD DAG II-50W-830-DDIM
Article number: Suppl. article no:
7018019
B4427
to see price and stock
Stylish office lighting that comes complete with suspension, light source and 2m cord with plug.
On / Off = With 2 drawstrings for on / off of up / down lights.
Dragdim = With 2 drawstrings for separate control / dimming of up / down lights.
Dragdim+sensor = Built-in daylight / presence sensor and 1 drawstring for on / off / fog of up / down light.
On / Off = With 2 drawstrings for on / off of up / down lights.
Dragdim = With 2 drawstrings for separate control / dimming of up / down lights.
Dragdim+sensor = Built-in daylight / presence sensor and 1 drawstring for on / off / fog of up / down light.
- Article number: 7018019
- Suppl. article no: B4427
- Material class QT0390
Technical data
- Packagin Size: 1 ST/5 ST
- Design: Dragdim+sensor
- Max. system power: 52 W
- Rated luminous flux according to IEC 62722-2- 1: 5740 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimmable: Yes
- Dimming DALI: No
- Dimming DALI-2: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 1255 mm
- Width: 150 mm
- Height/depth: 45 mm
- With movement sensor: No
- Degree of protection (IP): IP20
- Protection class according to IEC 61140: I
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Steel
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated life time L80/B10 at 25 °C: 80000 h
- Colour rendering index CRI: 80-89
- Colour of light adjustable: No
- Material cover: Without cover
- Luminous flux adjustable: Continuously variable
- Lamp type: LED not exchangeable
- Suitable for built-in mounting: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: High-gloss
- Beam angle: 41-80° - Wide beam
- Covering of the luminaire with thermally insulating material possible: No
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): Yes
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Colour of light: White
- Luminaire efficacy: 110 lm/W
- Operation by Bluetooth: No
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Surface protection housing: Powder coating
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Suitable for wall mounting: No
- Connection type: Plug
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Light outlet: Direct/indirect
- With air slots: Yes
- REACH Date: 2021-10-25
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Emergency power supply integrated: No
- Dimming depending on control gear: No
