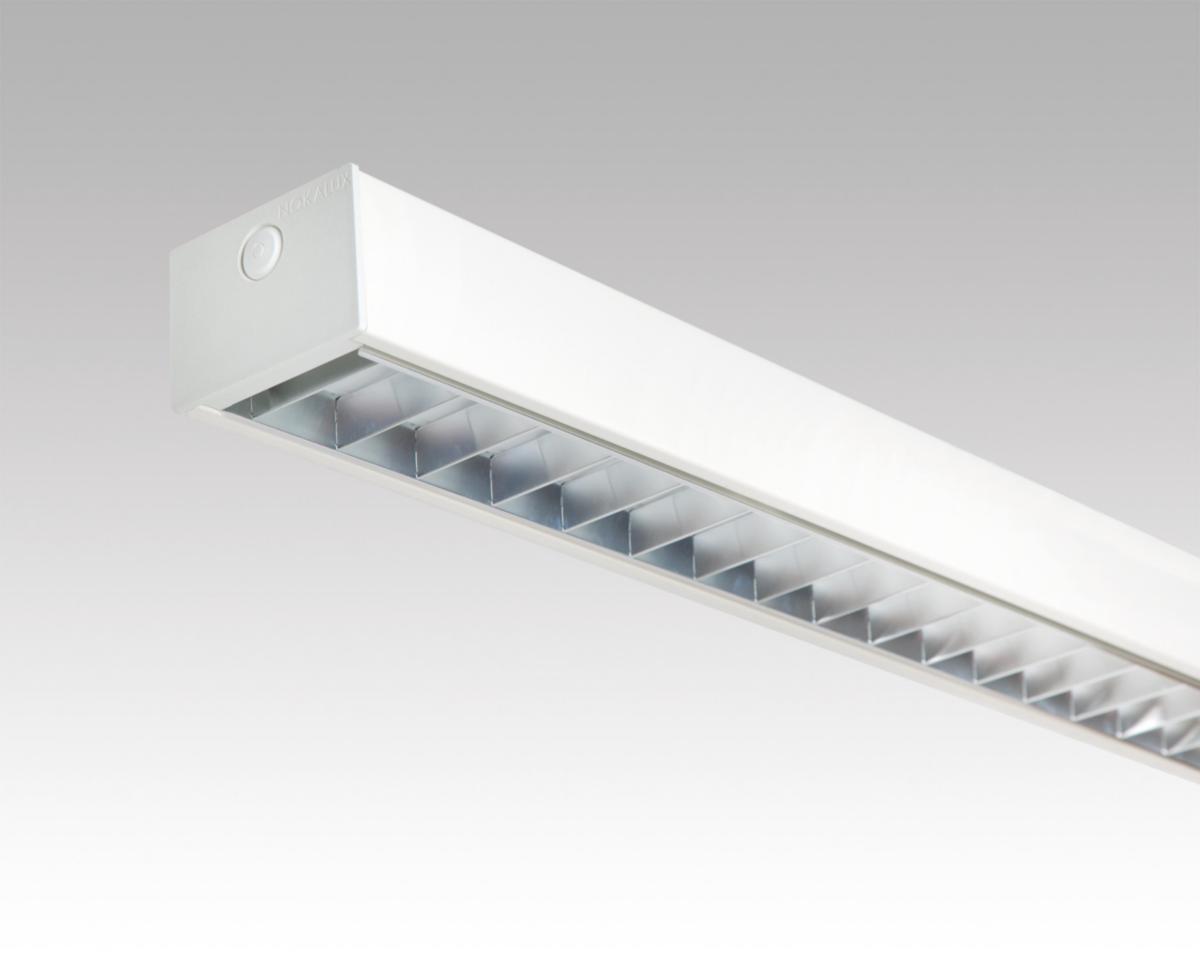

Classroom luminaire aCademy Pendant
INT LUM SUSP 4000LM 830 DALI ACADEMY 4000 SUSPENDEN DALI CF
Article number:
7015522E
to see price and stock
aCademy is a versatile luminaire series, mainly intended for classrooms and similar premises. Suspended luminaires with down light only or both up and down light. Frame in sheet metal, textured painted in white (RAL 9010). Outer end caps in plastic. Double parabolic metallized louvre (DP) with integrated opal dome. Wire suspension included. Suspended luminaire with Dali CF has up and down light with light distribution 35% up and 65% down light. Dali CF luminaires are equipped with drives for Dali or push button control. If the luminaire is connected to an external Dali sensor, there is a built-in corridor function where the luminaire lights up 15 minutes after the last activity at full light and then 15 minutes at 20% light before it switches off completely. Connects with pre-assembled cable rack 2.4 m, or for Dali luminaires, pre-assembled connection cable 5G0.75.
- Article number: 7015522E
- Ean no: 7333123010582
- Material class QT020A
Technical data
- Packagin Size: 1 ST/60 ST/60 ST
- Design: Downlight
- Max. system power: 37 W
- Rated luminous flux according to IEC 62722-2- 1: 3880 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimmable: No
- Dimming DALI: No
- Type of control gear: LED operating device current-controlled
- Length: 1193 mm
- Width: 101 mm
- Height/depth: 73 mm
- With movement sensor: No
- Degree of protection (IP): IP20
- Protection class according to IEC 61140: I
- Colour consistency (McAdam ellipse): SDCM3
- Unified Glare Ratio (UGR): 19
- Housing material: Steel
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated life time L80/B10 at 25 °C: 100000 h
- Colour rendering index CRI: 80-89
- Colour of light adjustable: No
- Material cover: Without cover
- Luminous flux adjustable: No
- Lamp type: LED exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: No
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: No
- With light source: Yes
- Suitable for ceiling mounting: No
- Type of grid: Matt
- Suitable for workplace according to EN 12464-1: Yes
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming potentiometer (integrated): No
- Colour of light: White
- Luminaire efficacy: 3880 lm/W
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 24
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- Exchangeable control gear: Yes
- Surface protection housing: Lacquered
- Light distribution: Symmetric
- Light distributor: Reflector
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Suitable for wall mounting: No
- Connection type: Plug
- Power factor: 0.97
- Light outlet: Direct
- Suitable for number of light sources: 1
