Hide-a-lite

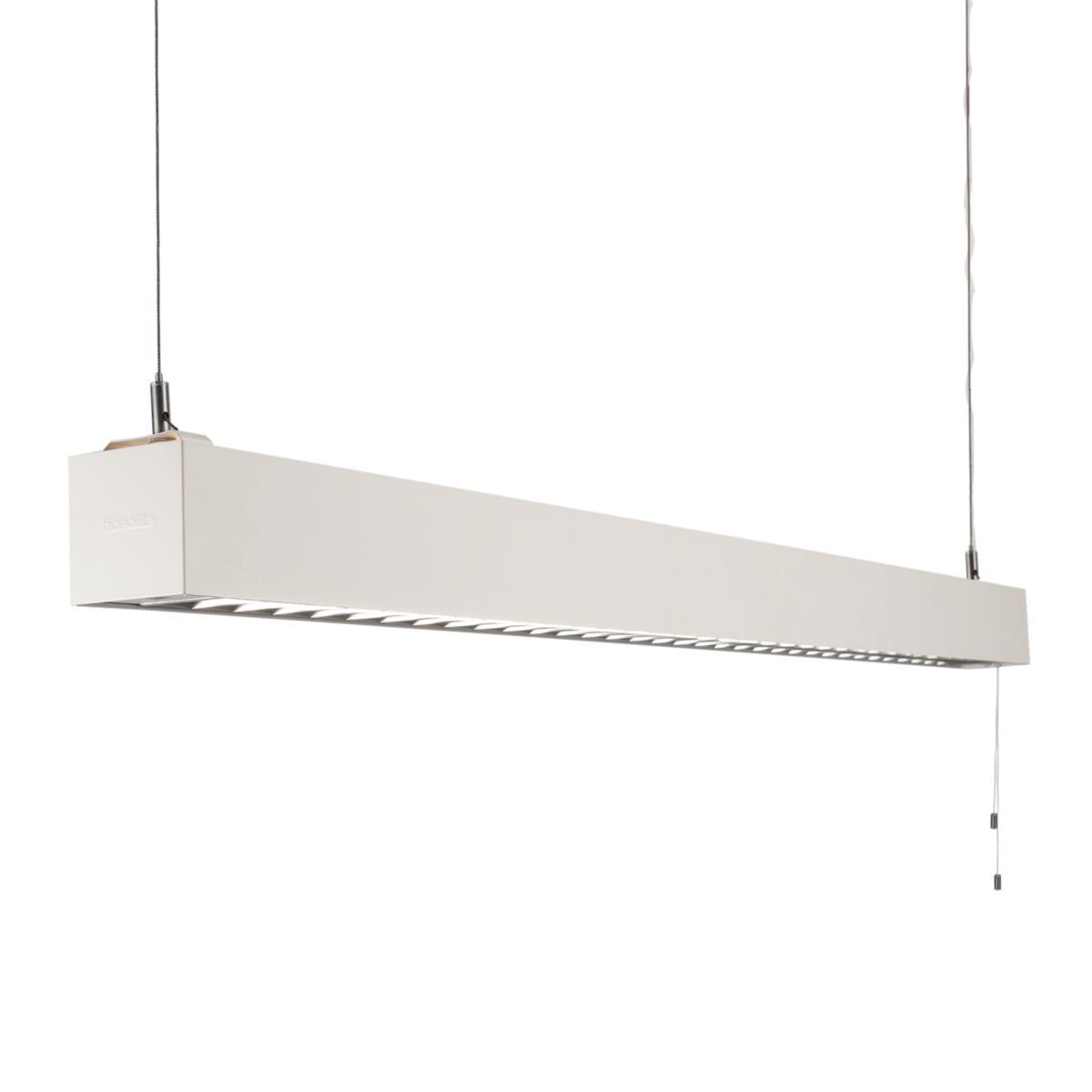

Suspended office fitting LED Actor DP, Hide-a-lite
FIXT ACTOR PENDANT DP 830 DIM ARM ACTOR PENDANT DP 830 DIM
Article number: Suppl. article no:
7015176
7015176
to see price and stock
Suspended office luminaire that alone meets the requirements for cell offices up to 12m². Frame and ends of white lacquered aluminum. Double parabolic lens hood creates a well-dazzled light image. Meets display and UGR requirements (UGR < 19 offices) under standard conditions. The illumination creates a wide, indirect and shadow-free ambient light. Available in several designs. Comes complete with mounting accessories for several types of roof and 2m pre-assembled cable.
- Article number: 7015176
- Suppl. article no: 7015176
- Ean no: 7392971131856
- Material class QT0320
Technical data
- Packagin Size: 1 ST/4 ST/4 ST
- Max. system power: 49 W
- Rated luminous flux according to IEC 62722-2- 1: 6200 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Degree of protection (IP): IP20
- Length: 1282 mm
- Width: 80 mm
- Height/depth: 80 mm
- Protection class according to IEC 61140: I
- With control gear: Yes
- Colour rendering index CRI: 80-89
- Lamp type: LED not exchangeable
- Colour of light: White
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- With light source: Yes
- Dimming with push-button: No
- Direct-/indirect proportion separately controllable: Yes
- Suitable for light line configuration: No
- Pendant length: 100-2000 mm
- Type of grid: Matt
- With suspension: Yes
- Suitable for workplace according to EN 12464-1: Yes
- Dimmable: Yes
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming Touch and Dim: No
- Dimming mains voltage modulation: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: Yes
- Type of control gear: LED operating device current-controlled
- Power factor: 0.95
- Filament test according to IEC 60695-2-11: None
- Lamp holder: None
- Light distributor: Reflector
- Light distribution: Double asymmetric
- Light outlet: Direct/indirect
- Suitable for number of light sources: 1
- Suitable for emergency lighting: No
- Material cover: Plastic matt/satinized
- Housing material: Steel
- Nominal voltage: 220-240 V
- Reflector: Matt
- Voltage type: AC
- Type of wiring: Ending
- Connection type: Other
- REACH Date: 2022-06-01
- LED nominal current at constant current: 350-1050 mA
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
