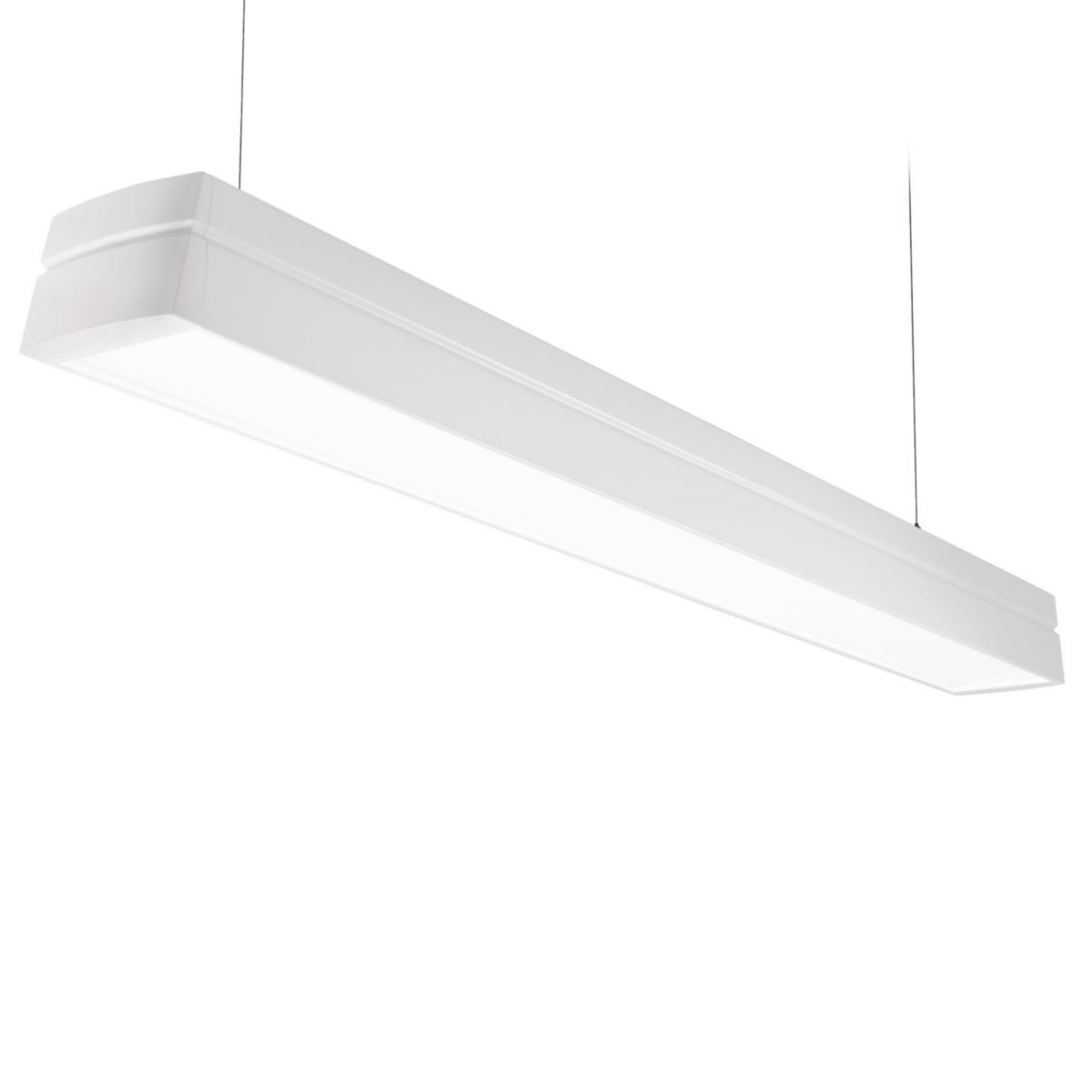

Interior luminaire LED Facet II, SG-Armaturen
FACET II WITHE
Article number: Suppl. article no:
7015136E
8246090737
to see price and stock
Facet II asymmetric is adapted to give an even light distribution over a larger area such as e.g. writing or information board. Can be suspended or mounted on a wall arm, ordered separately. Frame in white lacquered sheet steel and end in ABS. Directly asymmetric with DALI / SWD. Comes complete with 2.5 m 5x0.75 mm² connection cable with free end.
- Article number: 7015136E
- Suppl. article no: 8246090737
- Ean no: 5703821172448
- Material class QT030A
Technical data
- Packagin Size: 1 ST/60 ST
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 2020 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimmable: Yes
- Dimming DALI: Yes
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: Yes
- Length: 1756 mm
- Width: 112 mm
- Height/depth: 80 mm
- With movement sensor: No
- Degree of protection (IP): IP20
- Impact strength: IK00
- Protection class according to IEC 61140: I
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Steel
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated life time L80/B10 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Colour rendering index CRI: 80-89
- Material cover: Plastic, structured
- Luminous flux adjustable: No
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: Other
- Beam angle: 21-40° - Medium beam
- Suitable for workplace according to EN 12464-1: Yes
- Covering of the luminaire with thermally insulating material possible: No
- Number of poles: 5
- Conductor cross section: 0.75 mm²
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: Yes
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 112 lm/W
- Suitable for lamp power: 18 W
- Degree of protection (NEMA): Other
- Type of wiring: Ending
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 30
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 48
- IFTTT support available: No
- Exchangeable control gear: No
- Surface protection housing: Lacquered
- Light distribution: Asymmetric
- Light distributor: Other
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Suitable for wall mounting: No
- Connection type: Plug
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Power factor: 100
- Light outlet: Direct
- Suitable for number of light sources: 1
- With air slots: No
- REACH Date: 2022-08-16
- REACH contains candidate substances: Bly
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
- Dimming depending on control gear: Yes
