Ledvance

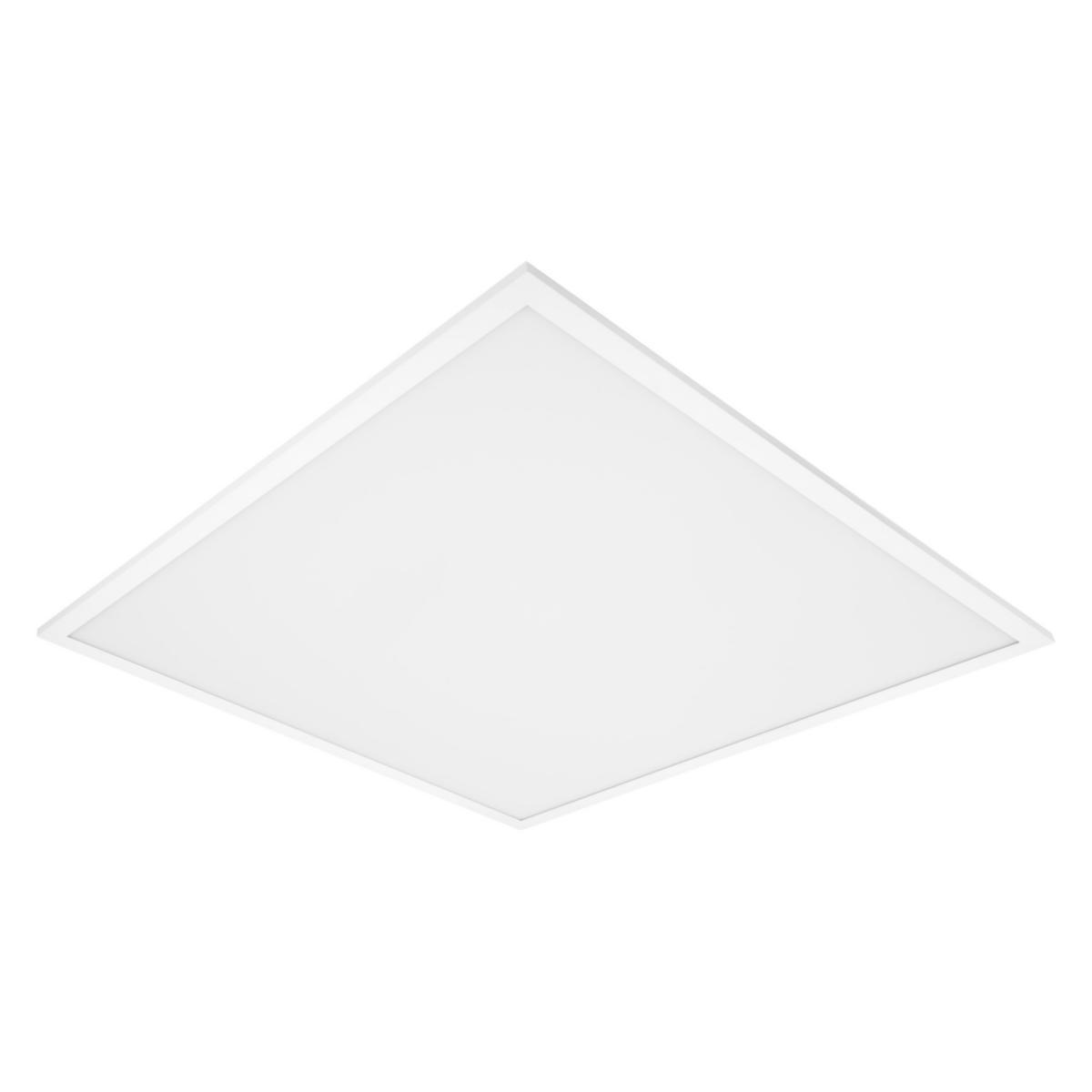

Recessed luminaire Performance, Ledvance
PANEL PFM DALI 36W/3000K UGR19 4058080000000
Article number: Suppl. article no:
7019237
4058075440456
to see price and stock
LEDVANCE PANEL PERFORMANCE replaces traditional fluorescent luminaires for recessed or suspended mounting. High efficiency of up to 120 lm / W and SDCM3. Available in dimensions 600x600, 625x625 and 1200x300 mm. Versions with UGR < 19 for a glare-free light or DALI IoT for light control. Easy and quick installation thanks to a 3- or 5-pole quick-connect box and external drive that is included. 3-pole quick coupler on 25W / 30W / 33W on / off versions, 5-pole quick coupler on 36W on / off and all DALI versions. Luminaire housing in aluminum and diffuser in polystyrene. Long service life of 60,000 hours (L80) and 5 year warranty. Pendulum kit, mounting frame and clips are available as accessories.
- Article number: 7019237
- Suppl. article no: 4058075440456
- Ean no: 4058075440456
- Material class QT0280
- This is an alternative to item 7024370
Technical data
- Packagin Size: 1 ST/4 ST/4 ST
- Design: Dali, UGR19
- Max. system power: 36 W
- Rated luminous flux according to IEC 62722-2- 1: 4320 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimmable: Yes
- Dimming DALI: Yes
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 595 mm
- Width: 595 mm
- Height/depth: 32 mm
- With movement sensor: No
- Degree of protection (IP): IP40
- Impact strength: IK03
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Unified Glare Ratio (UGR): 19
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated life time L80/B10 at 25 °C: 60000 h
- Rated ambient temperature according to IEC 62722-2-1: -10-50 °C
- Colour rendering index CRI: 80-89
- Material cover: Plastic, opal
- Built-in width: 575 mm
- Lamp type: LED not exchangeable
- Suitable for built-in mounting: Yes
- Suitable for emergency lighting: Yes
- Suitable for suspended mounting: Yes
- Built-in length: 575 mm
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: Other
- Beam angle: > 80° - Extreme wide beam
- Suitable for workplace according to EN 12464-1: Yes
- Covering of the luminaire with thermally insulating material possible: No
- Number of poles: 5
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 120 lm/W
- Suitable for lamp power: 36 W
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: RG0
- Surface protection housing: Other
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Suitable for wall mounting: Yes
- Built-in height/depth: 80 mm
- Connection type: Other
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Power factor: 0.95
- Light outlet: Direct
- With air slots: No
- Rated life time L90/B10 at 25 °C: 35000 h
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- Dimming depending on control gear: No
