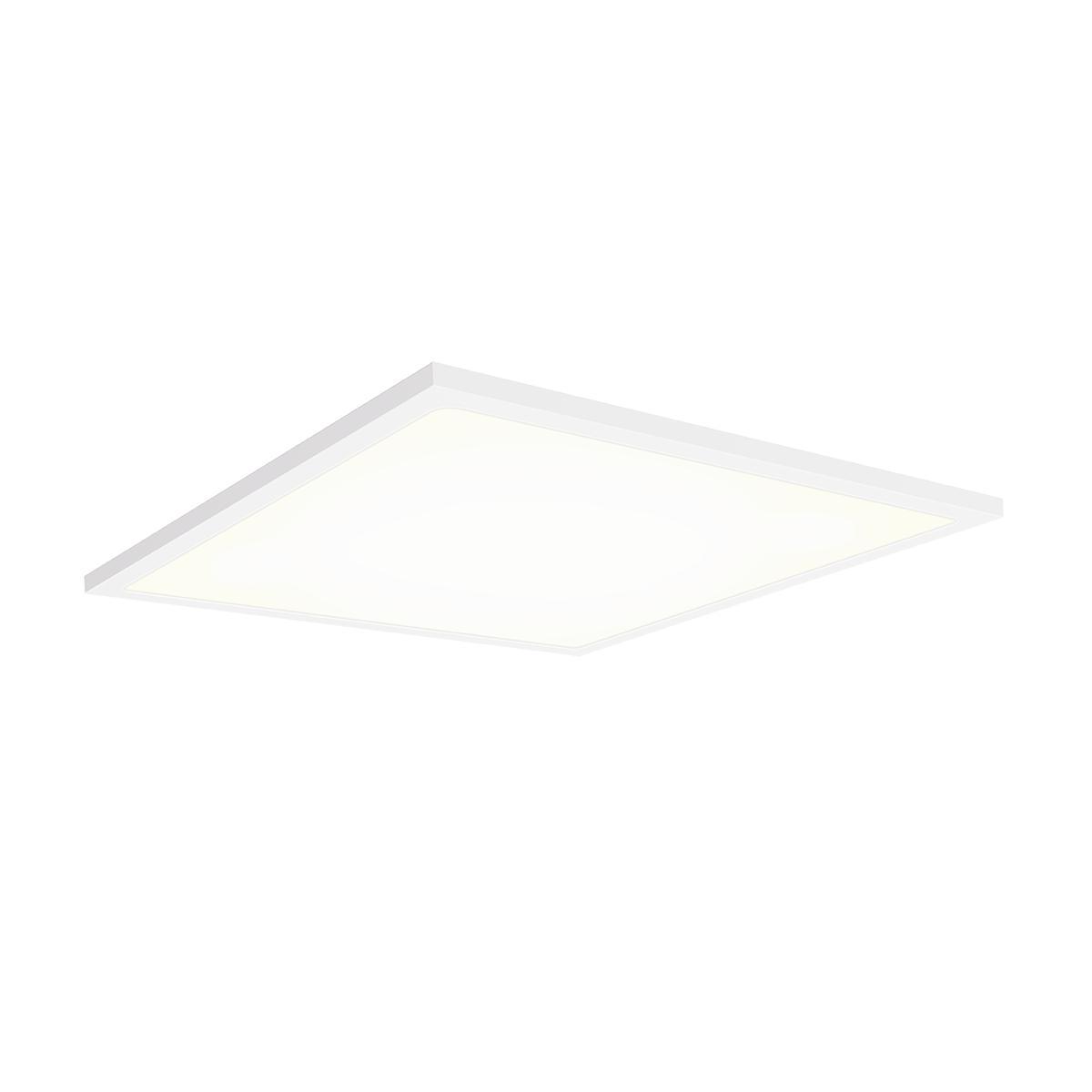

Recessed luminaire LED panel LPN-01
LED PANEL
Article number: Suppl. article no:
7077777
LPN-01
to see price and stock
LPN-01 is a smart LED panel with tunable white. The LED driver and dimmer are built into the panel, no external dimmer should be used. Installation only requires phase and neutral via C7/C8 connector. Connection is made with Connection Cable CTN-01 (Euro connector) or Connection Box CTN-02 (Linect® or terminal block) which is sold separately. The panel is configured wirelessly via the app and can be controlled automatically with time functions or through other products from Plejd. Can be set to a fixed color temperature or dim to warm.
- Article number: 7077777
- Suppl. article no: LPN-01
- Ean no: 7330018013246
- Material class QT4470
Technical data
- Packagin Size: 4 PCS
- Max. system power: 38 W
- Rated luminous flux according to IEC 62722-2- 1: 1-4000 lm
- Colour temperature: 2200-4000 K
- Housing colour: White
- Dimmable: Yes
- Type of control gear: Electronic transformer
- Dimming with push-button: Yes
- Length: 595 mm
- Width: 595 mm
- Height/depth: 18 mm
- Degree of protection (IP), rear side: IP20
- Degree of protection (IP), front side: IP44
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Unified Glare Ratio (UGR): 19
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: 0-35 °C
- Colour rendering index CRI: 90-100
- Colour of light adjustable: Continuously variable
- Material cover: Plastic, structured
- Luminous flux adjustable: Continuously variable
- Built-in width: 18 mm
- Lamp type: LED not exchangeable
- Suitable for built-in mounting: Yes
- Built-in length: 595 mm
- With light source: Yes
- Beam angle: > 80° - Extreme wide beam
- Suitable for workplace according to EN 12464-1: Yes
- Number of poles: 2
- Dimming programmable: Yes
- Dimming manufacturer's proprietary system: Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 105 lm/W
- Type of wiring: Ending
- Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq): 97 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 95 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 93 %
- Operation by Bluetooth: Yes
- Total harmonic distortion (THD): 8 %
- Flickering value Pst LM: 0.1
- Photobiological safety according to EN 62471: RG1
- Beam angle adjustable: No
- Compatible with Amazon Alexa: Yes
- Compatible with Apple HomeKit: Yes
- Compatible with Google Assistant: Yes
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 96
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 96
- Stroboscope effect value SVM: 0.4
- Surface protection housing: Powder coating
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Nominal current: 1-173 mA
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Built-in height/depth: 595 mm
- Connection type: Plug
- Power factor: 0.96
- Light outlet: Indirect
- Containing product according to 2019/2020/EU: Yes
- Max. number of luminaires per miniature circuit breaker C10 (MCB): 60
- With presence detector: No
- REACH Date: 2026-03-25
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
