AhlsellProductsElectricLighting 70-8370 Interior light luminairesRecessed luminaires and accessoriesRecessed luminaires
Esylux
Interior luminaire Juna
JUNA 830/840 IP54 DALI-2
Article number: Suppl. article no:
7028947
EQ10600432
to see price and stock

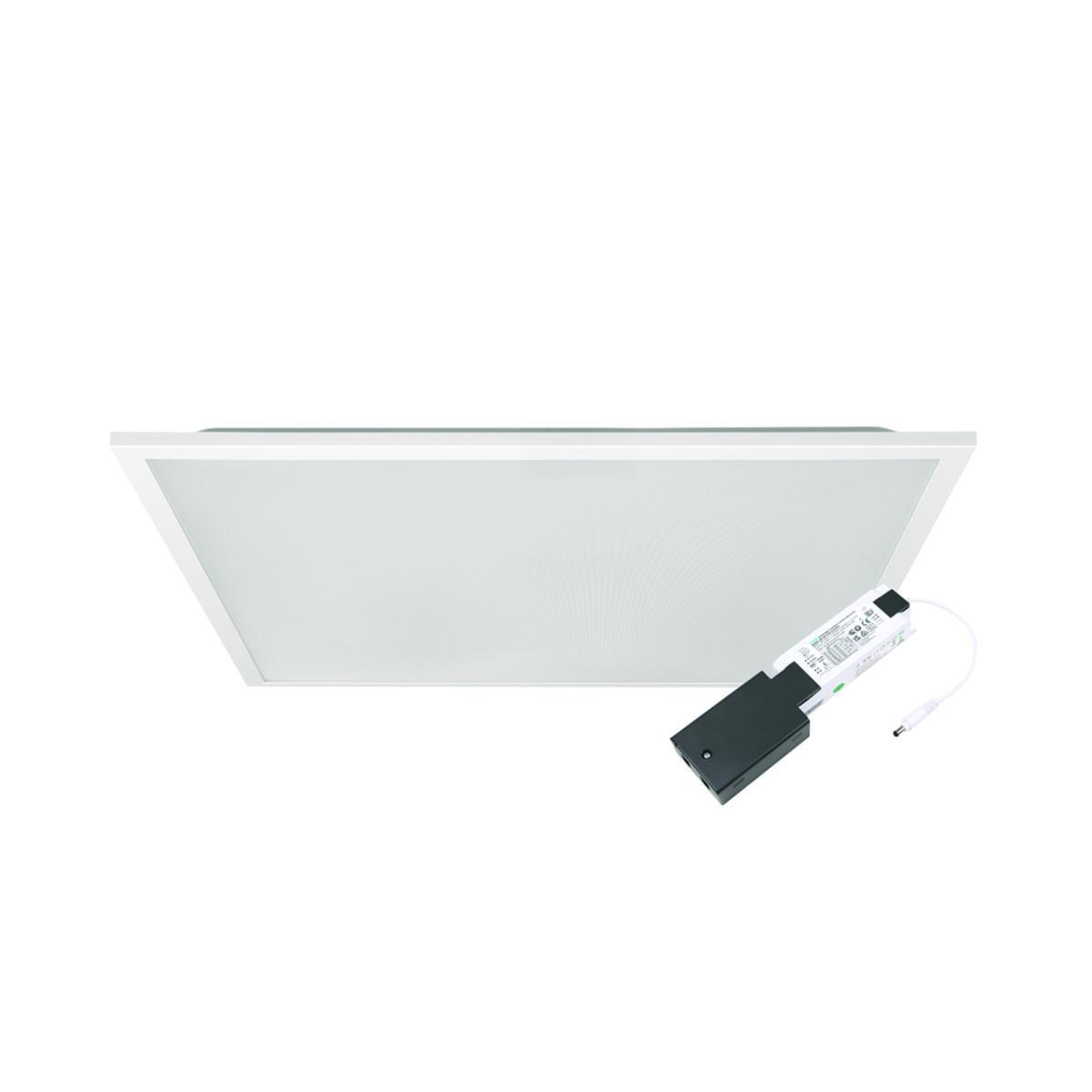

Recessed ceiling luminaire with LED and switchable color temperature 3000/4000 K and DALI-2 driver
- Article number: 7028947
- Suppl. article no: EQ10600432
- Ean no: 4015120600432
- Material class QT0280
Technical data
- Max. system power: 29 W
- Rated luminous flux according to IEC 62722-2- 1: 4000-4200 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Dimmable: Yes
- Dimming DALI: Yes
- Dimming DALI-2: Yes
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 595 mm
- Width: 595 mm
- Height/depth: 28 mm
- With movement sensor: No
- Degree of protection (IP), rear side: IP20
- Degree of protection (IP), front side: IP20
- Impact strength: IK02
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Aluminium
- Nominal voltage: 200-240 V
- Voltage type: AC/DC
- With control gear: Yes
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Colour rendering index CRI: 80-89
- Colour of light adjustable: Positions
- Luminous flux adjustable: Continuously variable
- Built-in width: 600 mm
- Lamp holder: Other
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: No
- Built-in length: 600 mm
- Suitable for surface mounting: No
- With light sensor: No
- Suitable for ceiling mounting: Yes
- Beam angle: > 80° - Extreme wide beam
- Suitable for workplace according to EN 12464-1: Yes
- Number of poles: 5
- Conductor cross section: 2.5 mm²
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 144 lm/W
- Operation by Bluetooth: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 29
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 48
- IFTTT support available: No
- Exchangeable control gear: Yes
- Surface protection housing: Powder coating
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Compatible with Casambi: No
- Suitable for wall mounting: No
- Built-in height/depth: 140 mm
- Light outlet: Direct
- Connectable conductor cross section: 0.75-2.5 mm²
- Ball-proof according to DIN 18032-3: No
- Containing product according to 2019/2020/EU: No
- Suitable for clamp-mounting: No
- Max. number of luminaires per miniature circuit breaker C10 (MCB): 30
- With switch: No
- With presence detector: No
- REACH Date: 2025-06-24
- REACH Information obligation: No
