AhlsellProductsElectricLighting 70-8370 Interior light luminairesRecessed luminaires and accessoriesRecessed luminaires
Designlight
Inteerior luminaire Framy II
PANEL 60X60 FRAMYII 3K WHITE
Article number: Suppl. article no:
7028728
LPFII-60x60MW3K
to see price and stock

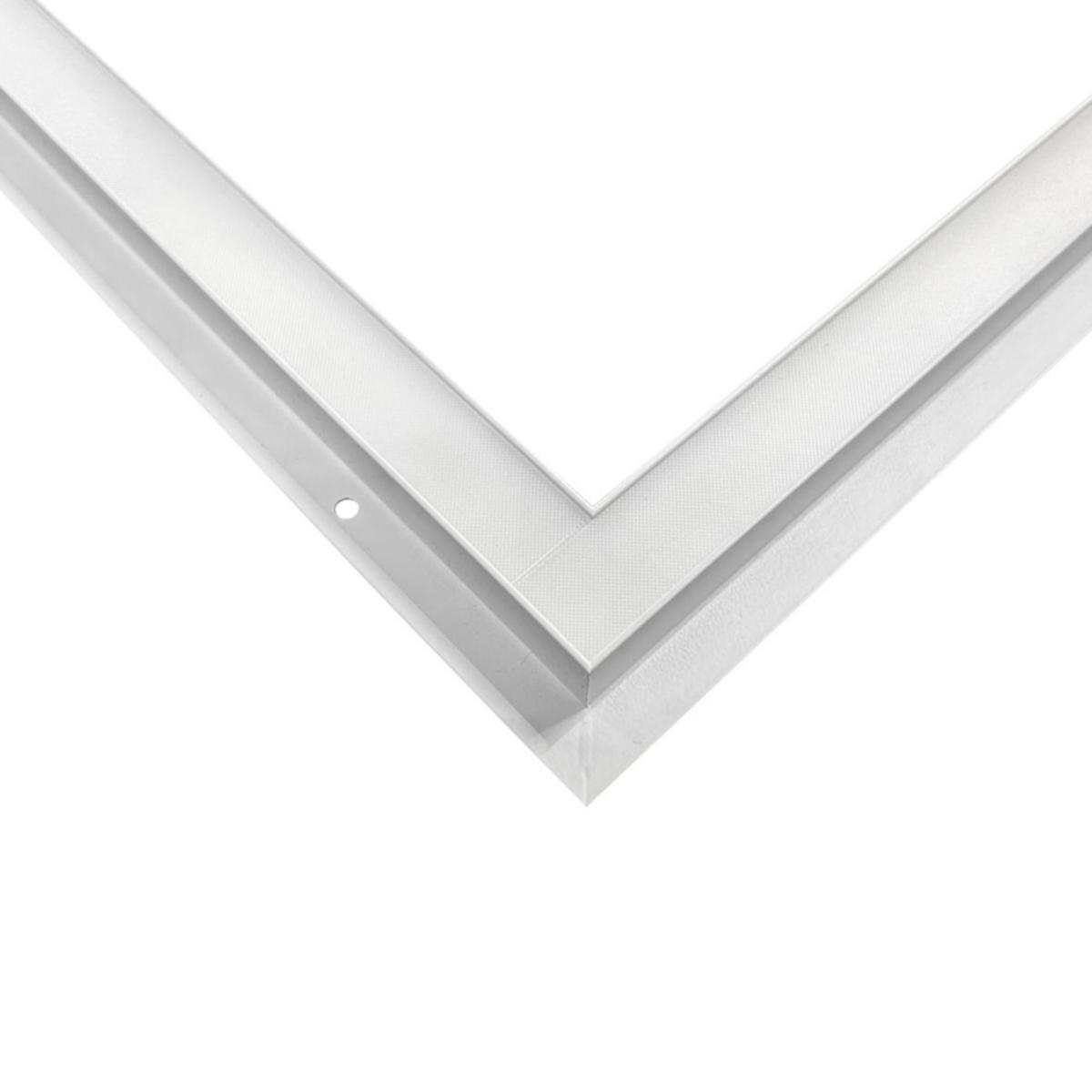

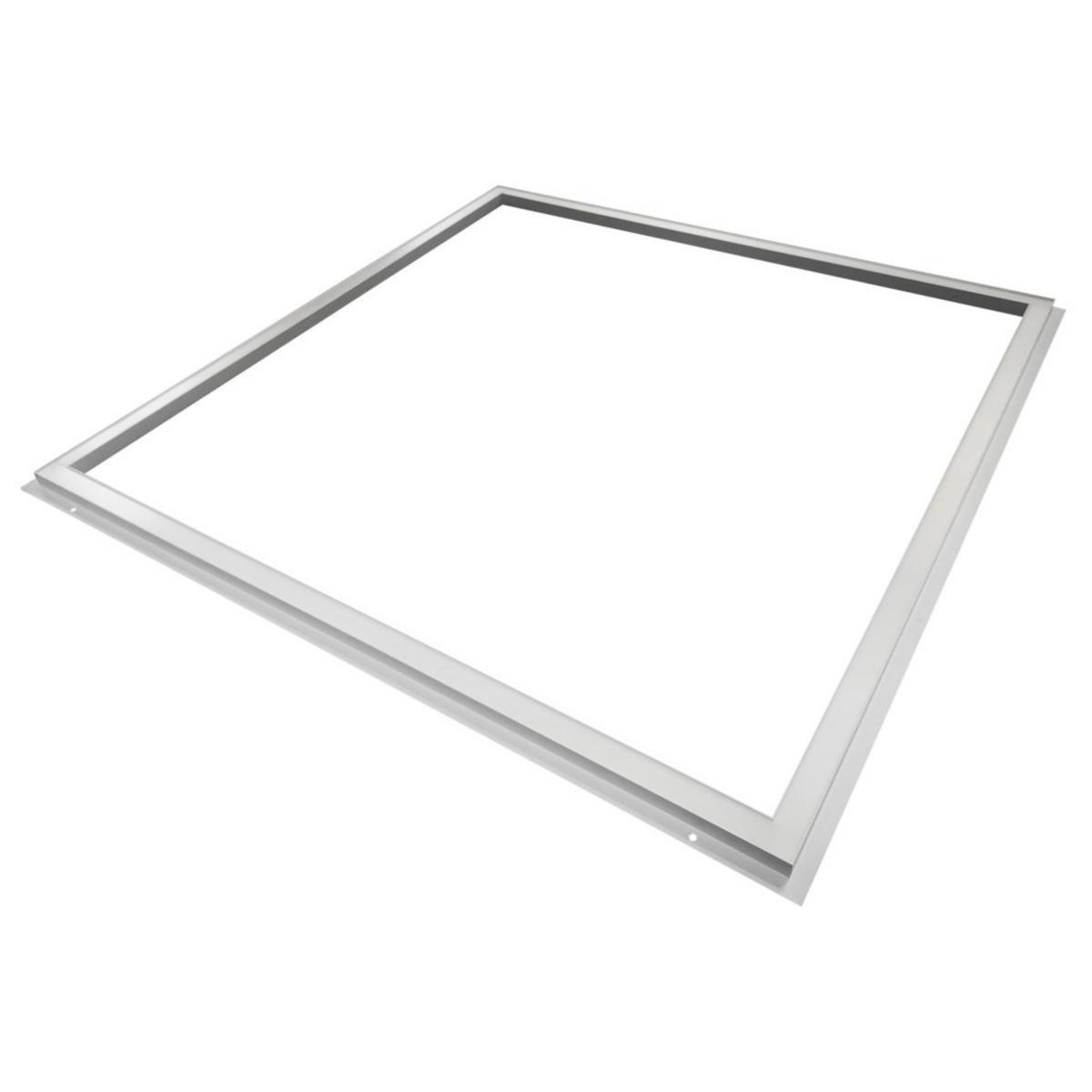

Framy a brilliant light frame, (595x595) frame in black (RAL9011) design that offers pleasant flicker-free light. Prismatic surface provides minimal glare. 3030 useful lm. 90° beam angle. Framy - ideal for environments that require good and pleasant general lighting, fits perfectly in a variety of places such as; restaurants, shopping centers, schools, offices, shops. Framy is only 14 mm and is easily mounted in the suspended ceiling structure. The plate in the suspended ceiling where Framy is installed is easily put back and fits in the Framy frame without modification.
- Article number: 7028728
- Suppl. article no: LPFII-60x60MW3K
- Ean no: 7340132807768
- Material class QT0400
Technical data
- Packagin Size: 1 PCS/5 PCS/30 PCS
- Max. system power: 36 W
- Rated luminous flux according to IEC 62722-2- 1: 4600 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimmable: No
- Type of control gear: LED operating device current-controlled
- Length: 595 mm
- Width: 595 mm
- Height/depth: 14 mm
- With movement sensor: No
- Degree of protection (IP), rear side: IP20
- Degree of protection (IP), front side: IP20
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Colour rendering index CRI: 80-89
- Colour of light adjustable: No
- Constant light output (CLO): No
- Material cover: Plastic, structured
- Luminous flux adjustable: No
- Built-in width: 595 mm
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: Yes
- Built-in length: 595 mm
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: > 80° - Extreme wide beam
- Covering of the luminaire with thermally insulating material possible: No
- Number of poles: 2
- Colour of light: White
- Luminaire efficacy: 130 lm/W
- Type of wiring: Ending
- Operation by Bluetooth: No
- Total harmonic distortion (THD): 6 %
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Exchangeable control gear: Yes
- Surface protection housing: Powder coating
- Light distribution: Symmetric
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Compatible with Casambi: No
- Suitable for wall mounting: No
- Built-in height/depth: 14 mm
- Connection type: Plug
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Power factor: 0.9
- Light outlet: Direct
- With air slots: No
- Connectable conductor cross section: 0.5-1.5 mm²
- Ball-proof according to DIN 18032-3: No
- Containing product according to 2019/2020/EU: Yes
- With switch: No
- With presence detector: No
- REACH Date: 2025-05-22
- REACH Information obligation: No
