LED Panel Flex
LED PANEL 4570LM FLEX
Article number: Suppl. article no:
7028368
7333123846655
to see price and stock

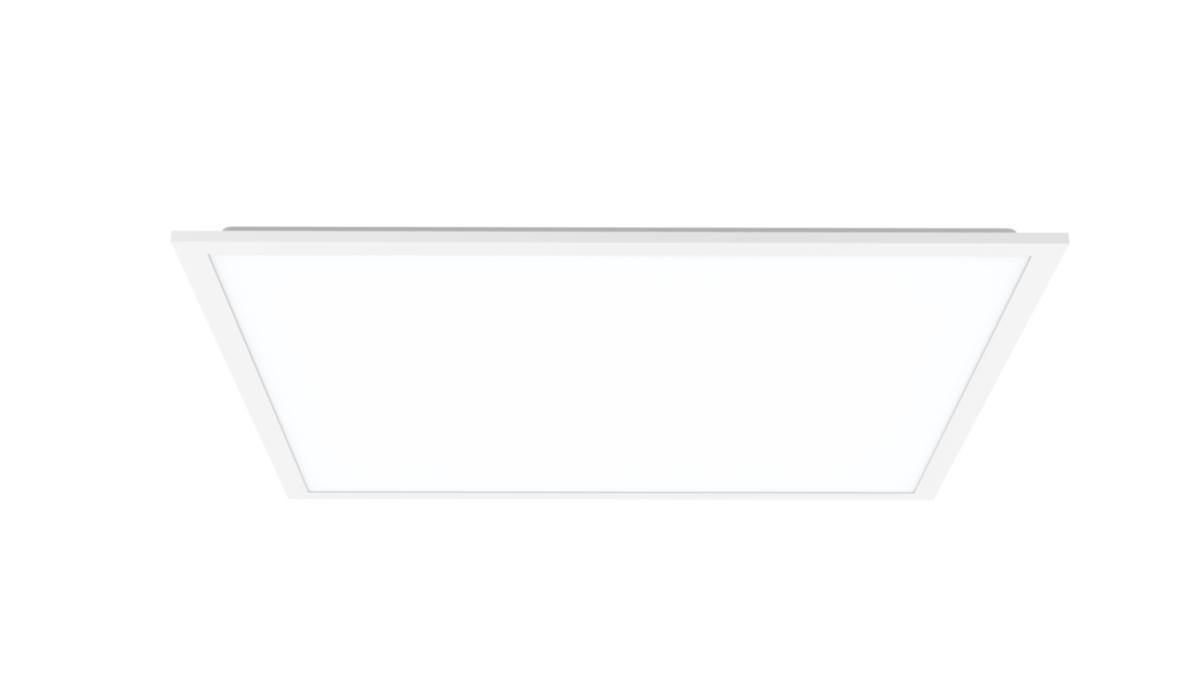

LED panel for recessed installation in ceilings. Color temperature adjustable 3/4/5000K.

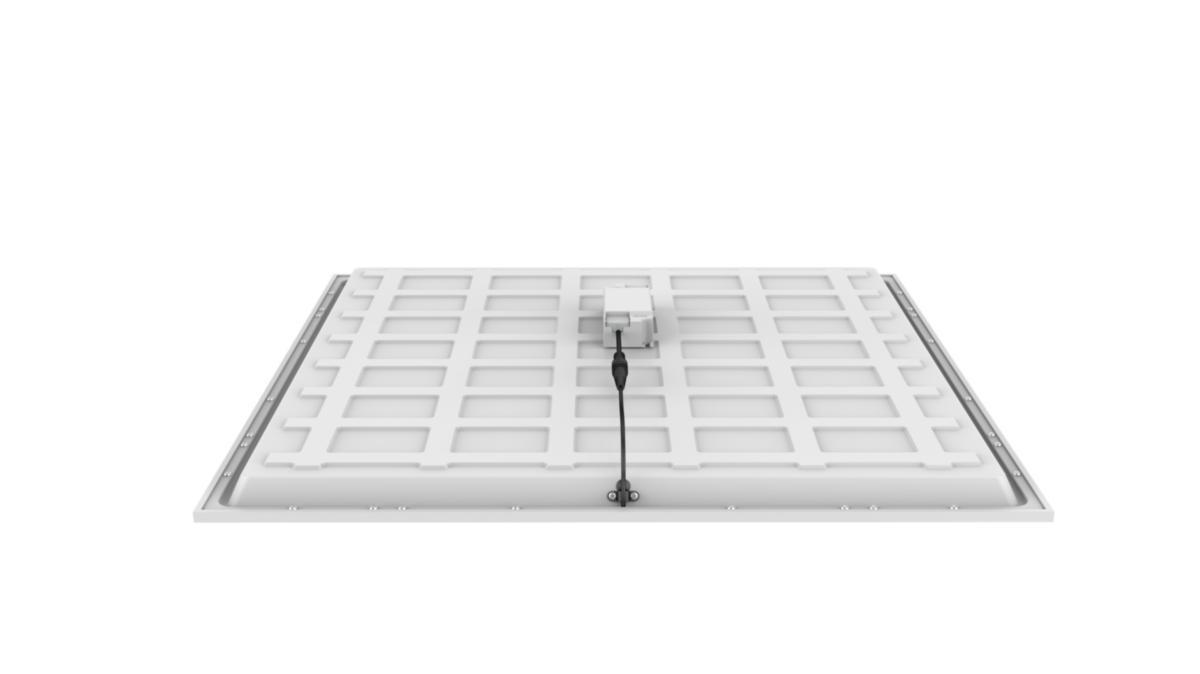

7028368 = Light output adjustable in 4 steps 2947-4570 lm. Pre-assembled cable rack with plug 2.6 m.
7028369 = Light can be controlled with Dali or impulse switch. Max light output 4570 lm. Connected with 5G1.5 in junction box or with Linect.
7028368 = Light output adjustable in 4 steps 2947-4570 lm. Pre-assembled cable rack with plug 2.6 m.
7028369 = Light can be controlled with Dali or impulse switch. Max light output 4570 lm. Connected with 5G1.5 in junction box or with Linect.
- Article number: 7028368
- Suppl. article no: 7333123846655
- Ean no: 7333123846655
- Material class QT0201
Technical data
- Packagin Size: 1 PCS/6 PCS/30 PCS
- Max. system power: 29 W
- Rated luminous flux according to IEC 62722-2- 1: 2947-4570 lm
- Colour temperature: 3000-5000 K
- Housing colour: White
- Dimmable: No
- Dimming DALI: No
- Dimming DALI-2: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 595 mm
- Width: 595 mm
- Height/depth: 28 mm
- Degree of protection (IP), rear side: IP20
- Degree of protection (IP), front side: IP44
- Impact strength: IK02
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Unified Glare Ratio (UGR): 19
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Colour rendering index CRI: 80-89
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Material cover: Plastic, structured
- Luminous flux adjustable: Positions
- Lamp type: LED exchangeable
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: Yes
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: > 80° - Extreme wide beam
- Suitable for workplace according to EN 12464-1: Yes
- Number of poles: 2
- Conductor cross section: 0.75 mm²
- Luminaire efficacy: 134-158 lm/W
- Type of wiring: Ending
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 80 %
- Operation by Bluetooth: No
- Total harmonic distortion (THD): 15 %
- Flickering value Pst LM: 1
- Photobiological safety according to EN 62471: RG0
- Beam angle adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 32
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 53
- Stroboscope effect value SVM: 0.4
- Exchangeable control gear: Yes
- Surface protection housing: Powder coating
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Suitable for wall mounting: No
- Connection type: Plug
- Power factor: 0.9
- Light outlet: Direct
- Max. number of luminaires per miniature circuit breaker C10 (MCB): 33
- REACH Date: 2025-03-12
- REACH Information obligation: No
