Interior luminaire Moln HE
Moln HE MP 6x6 BTDA
Article number: Suppl. article no:
7028050
18HE MP 6x6 BTDA
to see price and stock

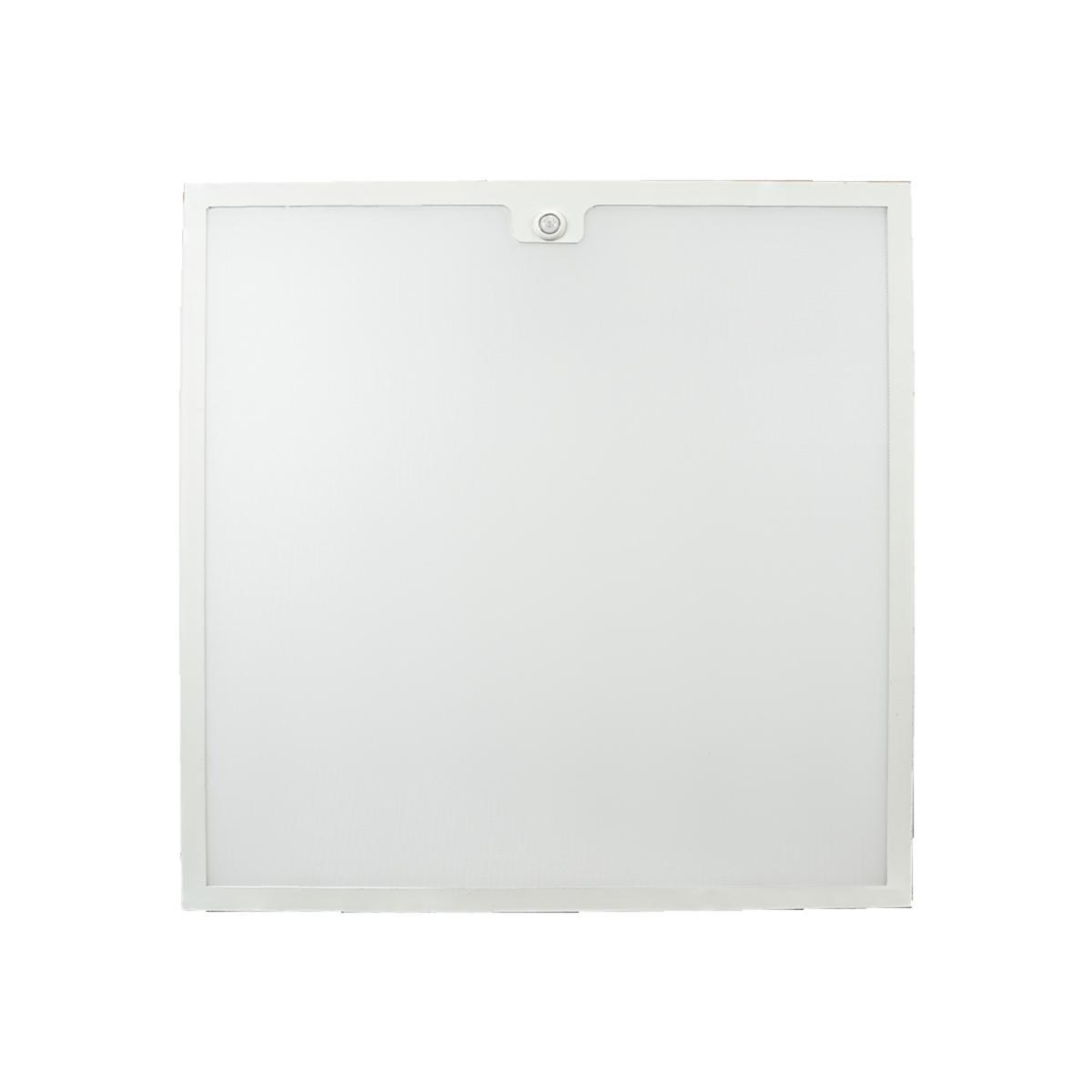

Moln HE is a thin light panel with a microprismatic diffuser and is suitable as general lighting in environments with requirements for higher separation and light efficiency. HE stands for High Efficiency and the light output of Moln HE is up to 160lm/W! Moln HE is also suitable if you need a lot of light flow, at maximum output, the panel provides up to 5700lm.
The luminaire has a discreet frame in white lacquered aluminum which is mounted without tools in a suspended ceiling with a visible support profile, the minimum recess depth when mounting from below is 50mm. When installing a thick roof, accessory 7013700 can be used. To change the appearance of the luminaire, you can combine the luminaire with a circular cover plate which can be purchased as an accessory (7910385, 7910178). Moln HE has enclosure class IP54 under suspended ceilings and enclosure class IP20 above suspended ceilings, when mounted on the outside in a frame, the entire luminaire is classified as IP20. The fixture has adjustable color temperature in three modes; 3000-, 4000 and 5000k and available as on/off or DALI.
On/off can be set in five steps; 20- / 25- / 30-/ 35- & 40W and is delivered with a free-standing strain-relieved operating device. On/off is available with 3m cord stand with ungrounded European plug or with 3-pole connection box, EQ box. The EQ box has dual inputs and a quick connection terminal for cabling between 0.75 - 2.5mm². DALI is delivered with free-standing strain-relieved DALI driver and 5-pin connection box, EQ box. The EQ box has dual inputs and a quick connection terminal for cabling between 0.75 - 2.5mm². Moln HE is available individually packed or as a 6-pack in a box without inner boxes with the driver placed above the LED panels. For projects with many luminaires, a 6-pack is suitable as the time and handling of each luminaire is reduced and also the amount of packaging is reduced.
Supplied with adapted operating device and cord or connection box. Quick connection between operating device and light panel.

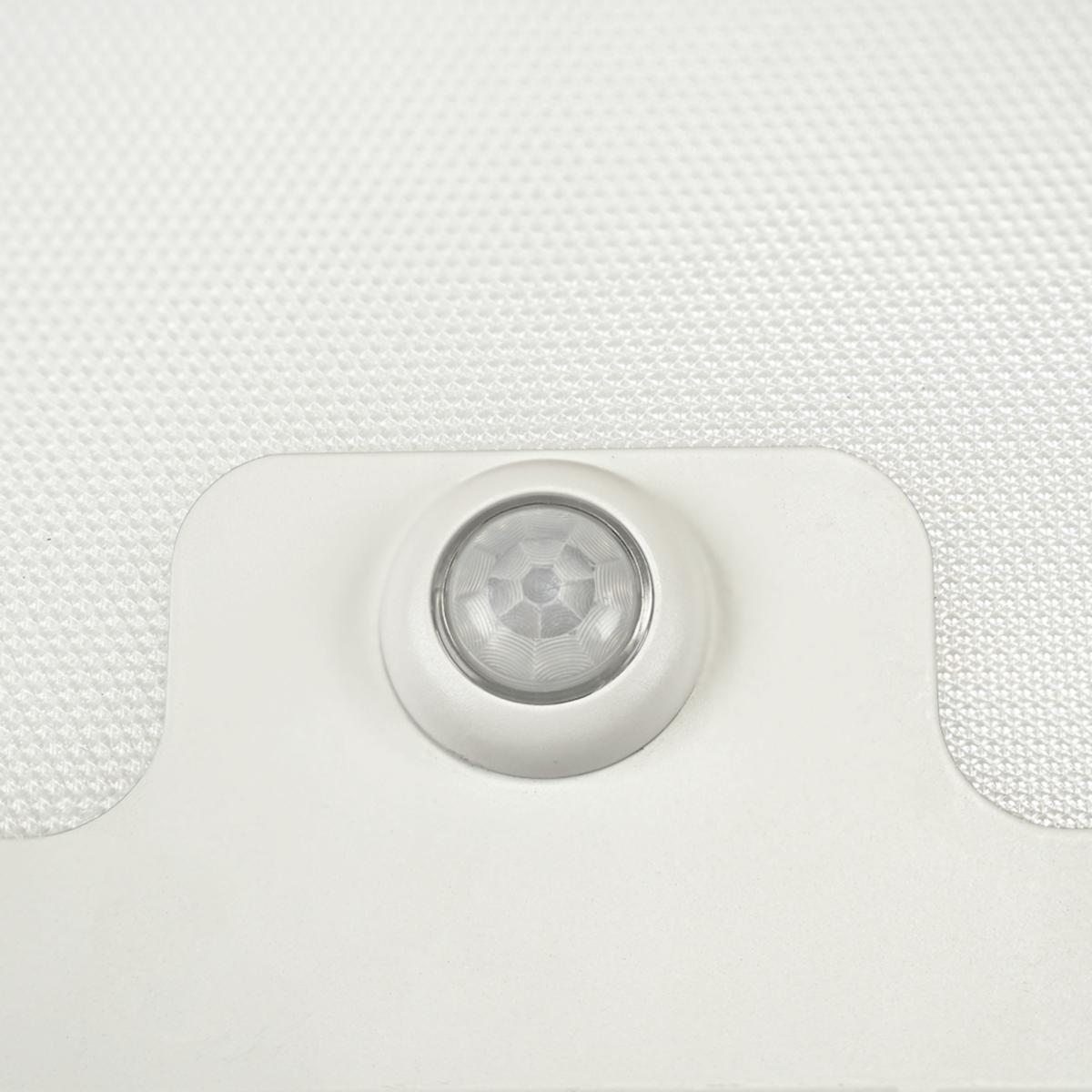

BTDA = Moln HE BTDA has the same unique features as Moln HE, but equipped with a BTDA sensor for full control of the lighting. It enables intelligent lighting control via Exaktor's BTDA app (Koolmesh).
The luminaire has a discreet frame in white lacquered aluminum which is mounted without tools in a suspended ceiling with a visible support profile, the minimum recess depth when mounting from below is 50mm. When installing a thick roof, accessory 7013700 can be used. To change the appearance of the luminaire, you can combine the luminaire with a circular cover plate which can be purchased as an accessory (7910385, 7910178). Moln HE has enclosure class IP54 under suspended ceilings and enclosure class IP20 above suspended ceilings, when mounted on the outside in a frame, the entire luminaire is classified as IP20. The fixture has adjustable color temperature in three modes; 3000-, 4000 and 5000k and available as on/off or DALI.
On/off can be set in five steps; 20- / 25- / 30-/ 35- & 40W and is delivered with a free-standing strain-relieved operating device. On/off is available with 3m cord stand with ungrounded European plug or with 3-pole connection box, EQ box. The EQ box has dual inputs and a quick connection terminal for cabling between 0.75 - 2.5mm². DALI is delivered with free-standing strain-relieved DALI driver and 5-pin connection box, EQ box. The EQ box has dual inputs and a quick connection terminal for cabling between 0.75 - 2.5mm². Moln HE is available individually packed or as a 6-pack in a box without inner boxes with the driver placed above the LED panels. For projects with many luminaires, a 6-pack is suitable as the time and handling of each luminaire is reduced and also the amount of packaging is reduced.
Supplied with adapted operating device and cord or connection box. Quick connection between operating device and light panel.
BTDA = Moln HE BTDA has the same unique features as Moln HE, but equipped with a BTDA sensor for full control of the lighting. It enables intelligent lighting control via Exaktor's BTDA app (Koolmesh).
- Article number: 7028050
- Suppl. article no: 18HE MP 6x6 BTDA
- Ean no: 7330139181787
- Material class QT0240
Technical data
- Packagin Size: 1 PCS/6 PCS/36 PCS
- Design: BTDA
- Max. system power: 41 W
- Rated luminous flux according to IEC 62722-2- 1: 5890 lm
- Colour temperature: 3000-5000 K
- Housing colour: White
- Dimmable: Yes
- Dimming DALI: No
- Dimming DALI-2: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: Yes
- Length: 595 mm
- Width: 595 mm
- Height/depth: 32 mm
- With movement sensor: Yes
- Impact strength: IK05
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Unified Glare Ratio (UGR): 19
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-35 °C
- Colour rendering index CRI: 80-89
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Material cover: Plastic, structured
- Luminous flux adjustable: Positions
- Built-in width: 595 mm
- Lamp type: LED not exchangeable
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: Yes
- Built-in length: 595 mm
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: Yes
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: 41-80° - Wide beam
- Suitable for workplace according to EN 12464-1: Yes
- Covering of the luminaire with thermally insulating material possible: No
- Number of poles: 5
- Conductor cross section: 2.5 mm²
- Dimming phase cut-off (trailing edge): No
- Dimming programmable: Yes
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 151 lm/W
- Type of wiring: Suitable for loop-through wiring
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 85 %
- Operation by Bluetooth: Yes
- Flickering value Pst LM: 1
- Beam angle adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 43
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 43
- Stroboscope effect value SVM: 0.4
- Exchangeable control gear: Yes
- Surface protection housing: Powder coating
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Suitable for wall mounting: No
- Nominal current: 220-240 mA
- Built-in height/depth: 32 mm
- Connection type: Plug
- Power factor: 0.95
- Light outlet: Direct
- Suitable for number of light sources: 1
- With air slots: No
- Movement sensor/presence detector technology: Passive infrared
- REACH Date: 2024-08-02
- REACH Information obligation: No
